Luxonis OAK-D Lite Camera "A00483" - Electra
Luxonis OAK-D Lite Camera "A00483"
24,000.00 EGP
Description

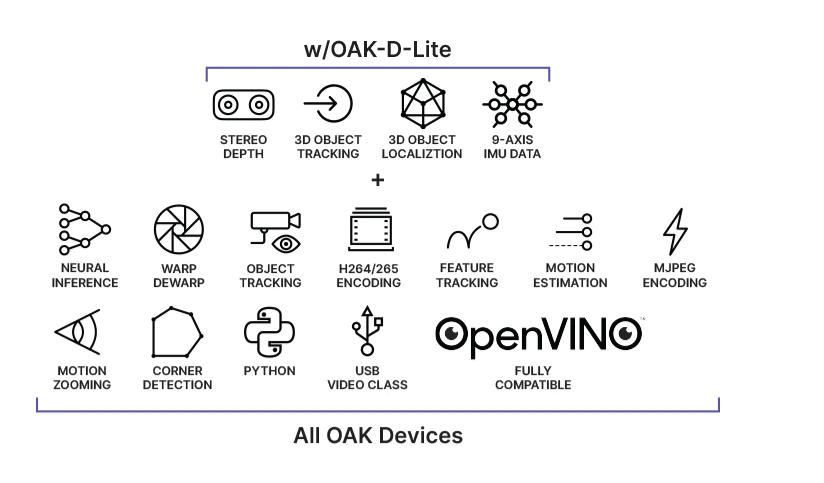

Main Features:
- 4 TOPS of processing power (1.4 TOPS for AI - RVC2 NN Performance)
- Run any AI model, even custom architecture/built ones (models need to be converted)
- Encoding: H.264, H.265, MJPEG - 4K/30FPS, 1080P/60FPS
- Computer vision: warp (undistortion), resize, crop via Image Manip node, edge detection, feature tracking. You can also run custom CV functions
- Stereo depth perception with filtering, post-processing, RGB-depth alignment, and high configurability
- Object tracking: 2D and 3D tracking with Object Tracker node
- Dimensions: 91x28x17.5 mm
- Weight: 61g.
Camera module specifications
| Camera Specs |
Color camera |
Stereo pair |
| Sensor |
IMX214 (PY014 AF, PY114 FF) |
OV7251 (PY013) |
| DFOV / HFOV / VFOV |
81° / 69° / 54° |
86° / 73° / 58° |
| Resolution |
13MP (4208x3120) |
480P (640x480) |
| Focus |
AF: 8cm - ∞ OR FF: 50cm - ∞ |
Fixed-Focus 6.5cm - ∞ |
| Max Framerate |
35 FPS |
120 FPS |
| F-number |
2.2 ± 5% |
2.0 ± 5% |
| Lens size |
1/3.1 inch |
1/7 inch |
| Effective Focal Length |
3.37mm |
1.3mm |
| Pixel size |
1.12µm x 1.12µm |
3µm x 3µm |
