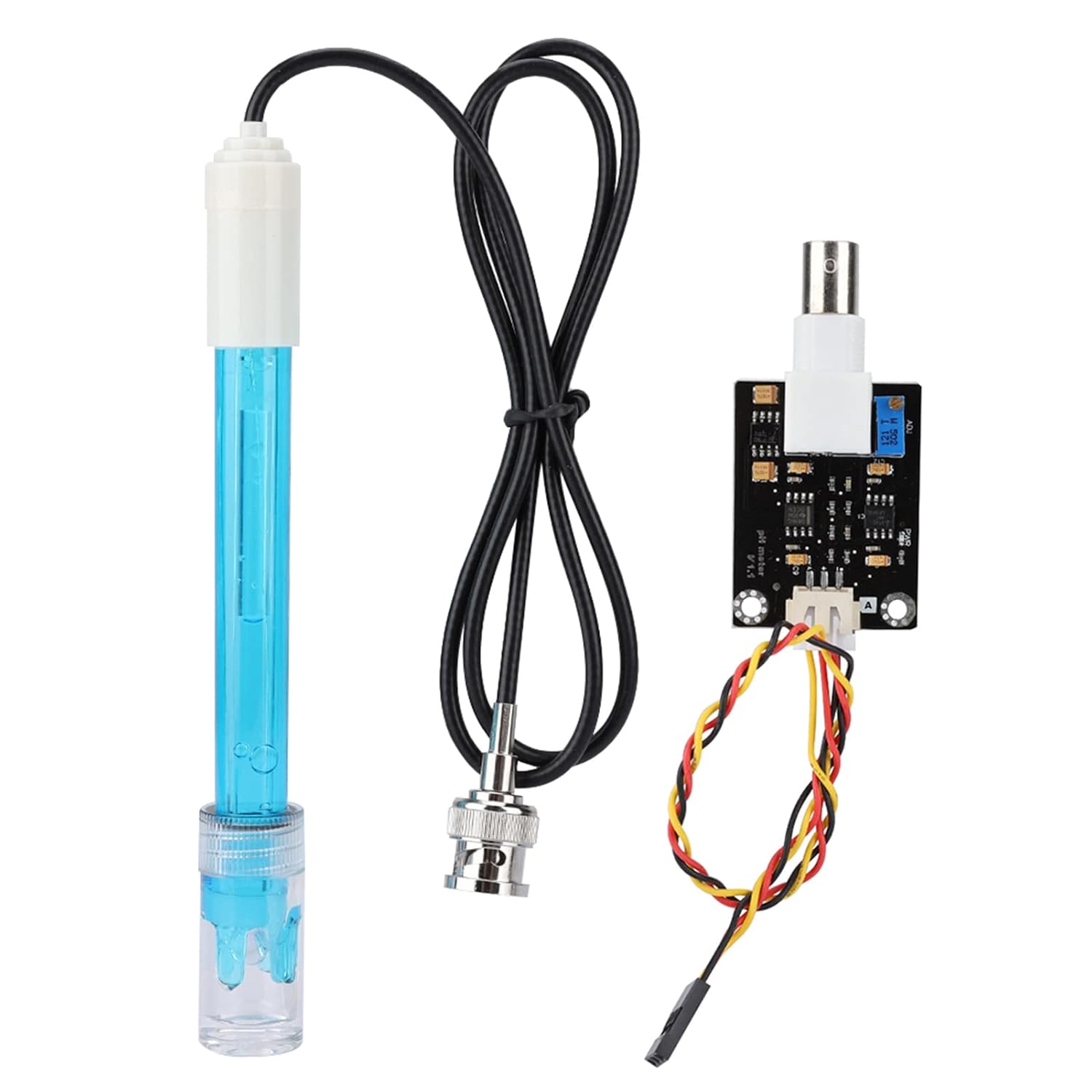

The Liquid pH 0–14 Value Detection Regulator Sensor Module is an essential electronic module designed to measure the acidity or alkalinity (pH level) of liquid solutions with high precision. Whether you’re working on a water quality monitoring system, hydroponics project, environmental research, or industrial automation, this module delivers accurate, reliable, and real-time pH readings compatible with Arduino, ESP32, Raspberry Pi, and other microcontrollers.

Understanding pH and Its Importance

The pH value of a liquid is a measure of how acidic or alkaline it is, ranging from 0 (very acidic) to 14 (very alkaline), with 7 being neutral. Monitoring pH levels is critical for applications in agriculture, aquaponics, laboratory analysis, chemical processing, and even food and beverage production.

The Liquid pH Sensor Module helps you measure these values electronically, making it a perfect fit for IoT-based water analysis systems or automated pH regulation setups.

Key Features

🔹 Wide Measuring Range (0–14 pH):
Covers the full pH spectrum, making it suitable for a wide variety of liquid types — from acidic solutions to alkaline ones.

🔹 High Accuracy and Stability:
Built with a glass electrode probe and a signal conditioning circuit, the module ensures accurate and stable readings even under varying conditions.

🔹 Analog Output Signal:
Provides an analog voltage output that corresponds to the pH level, making it easy to read using Arduino’s analog input pins.

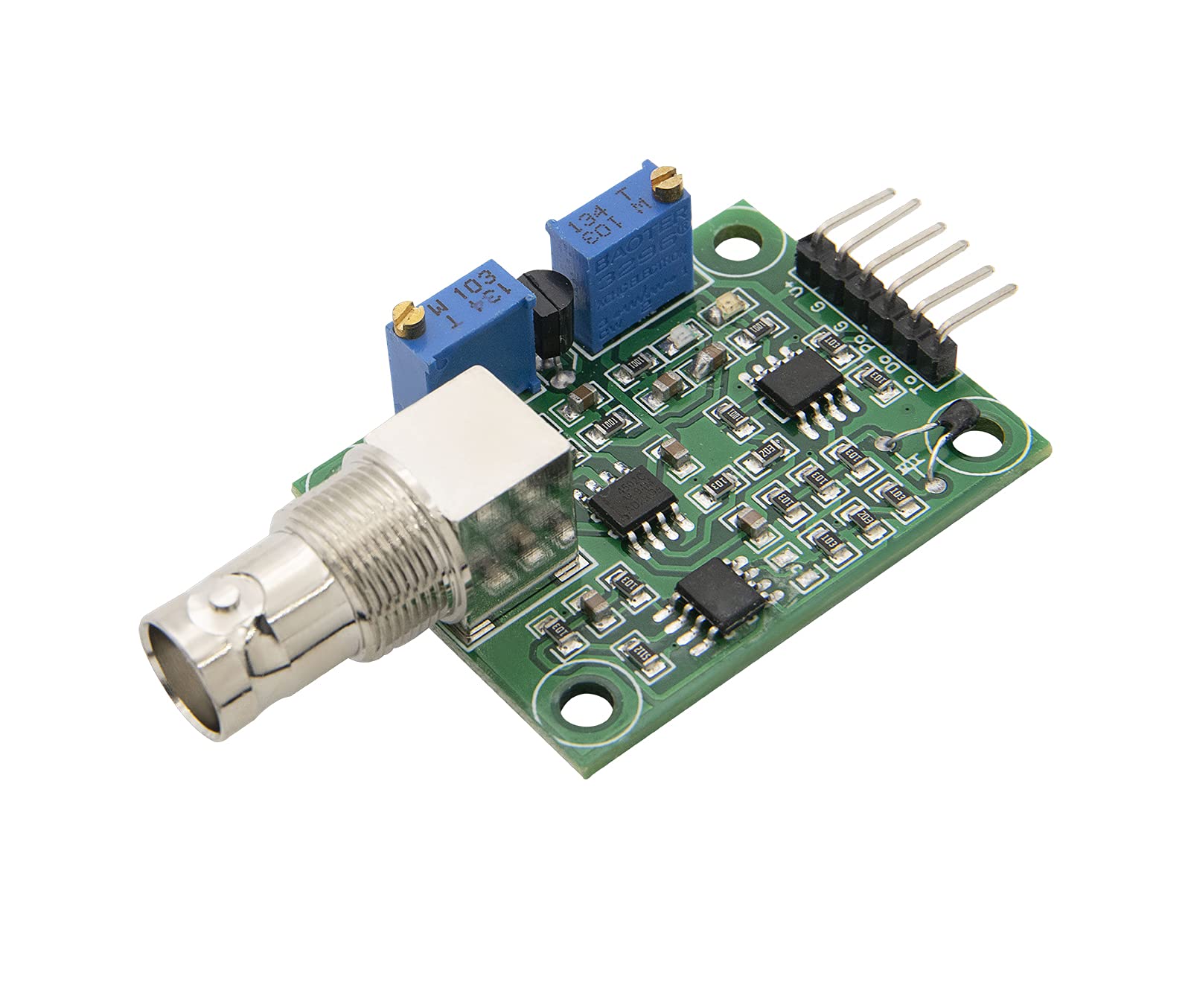

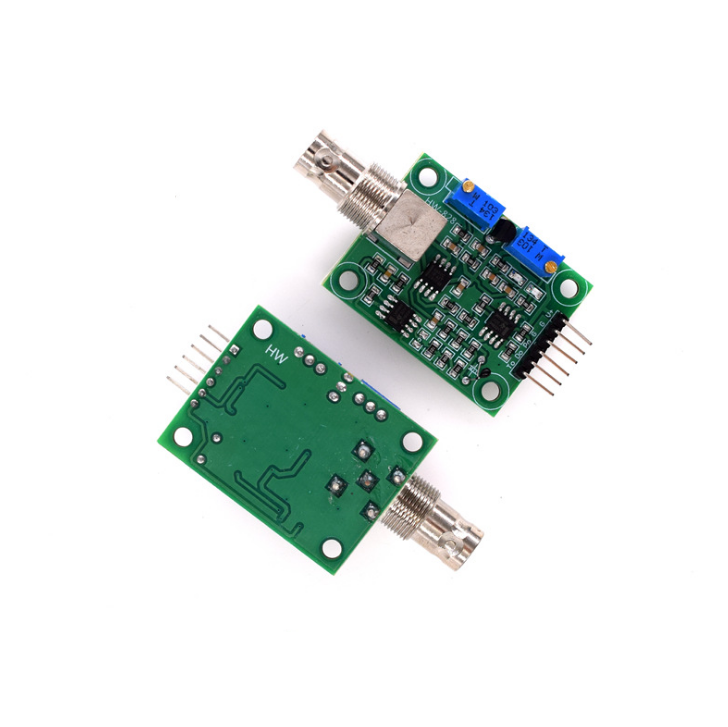

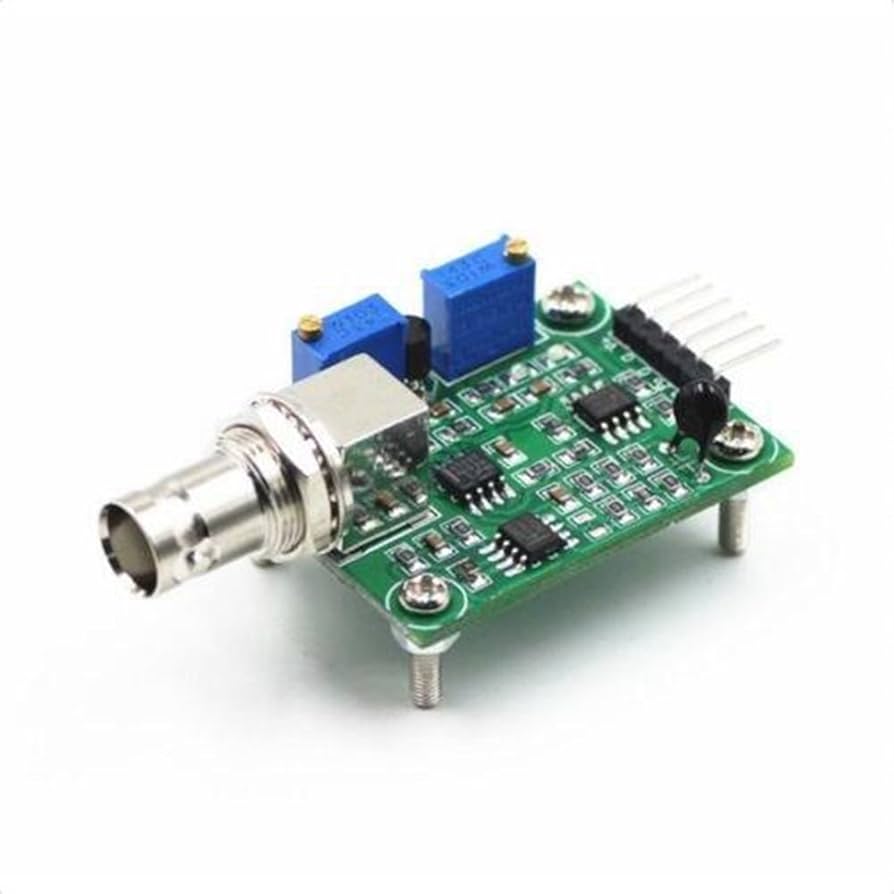

🔹 Onboard Gain and Offset Adjustment:
The module includes potentiometers to fine-tune signal gain and offset, allowing precise calibration for more accurate results.

🔹 Plug and Play Compatibility:
Fully compatible with Arduino, ESP8266, ESP32, Raspberry Pi, and STM32 boards, allowing quick integration into any electronic or IoT project.

🔹 Durable and Reliable Probe:
The included pH probe (electrode) is durable and designed for long-term use in water or mild chemical solutions, ensuring stable output over time.

🔹 Compact Design:
Lightweight and easy to mount, making it perfect for both desktop experiments and embedded system projects.

Technical Specifications

• Module Name: Liquid pH 0–14 Detection Sensor Module

• Measuring Range: 0–14 pH

• Output Type: Analog voltage

• Output Voltage: 0–5V

• Operating Voltage: 5V DC

• Response Time: ≤ 1 second

• Temperature Range: 0°C – 60°C

• Compatible Controllers: Arduino, ESP32, ESP8266, Raspberry Pi, STM32

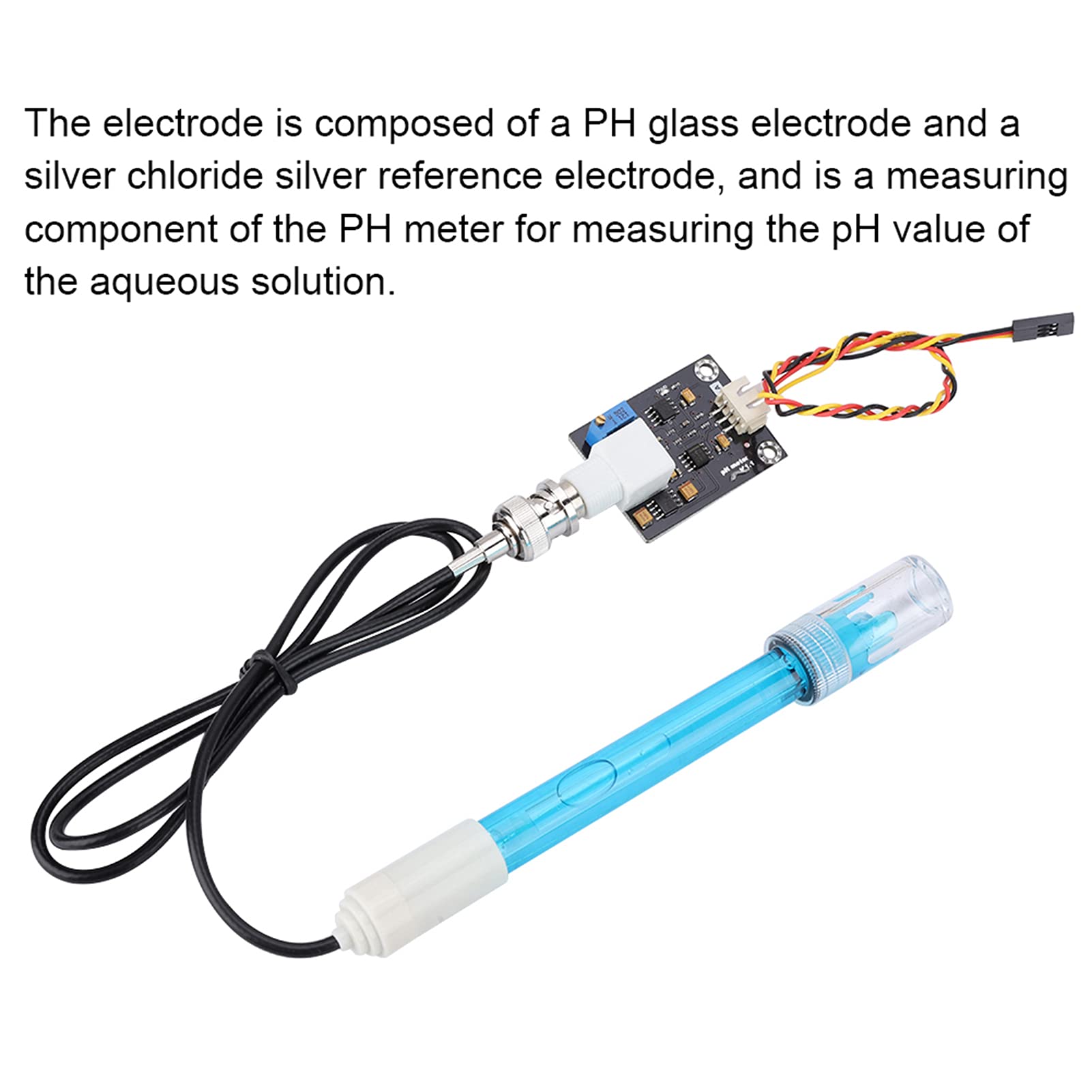

• Electrode Type: Glass pH probe with BNC connector

• Cable Length: Approx. 60–80 cm

Applications

💧 Water Quality Testing:
Accurately monitor the pH level of tap water, drinking water, or filtered water for safety and health standards.

🌱 Hydroponics and Aquaponics:
Maintain the perfect pH level in nutrient solutions to promote optimal plant growth and yield.

🐟 Aquarium & Fish Farming:
Keep water pH balanced to ensure a safe environment for fish and aquatic plants.

🏭 Industrial Process Control:
Monitor pH in chemical processing, wastewater management, and food production lines.

🔬 Educational & Research Labs:
Ideal for academic experiments, environmental monitoring, and chemistry-related studies.

🌊 IoT Smart Monitoring Systems:
Integrate into IoT-based dashboards to log pH data and remotely monitor liquid quality using WiFi or cloud-based systems.

Advantages

✔️ Full 0–14 pH measurement range.
✔️ Stable analog output with easy calibration.
✔️ Compatible with most microcontrollers.
✔️ Durable, long-life pH probe.
✔️ Perfect for educational, industrial, and IoT projects.

How It Works

The pH sensor probe detects the hydrogen ion concentration in a solution and generates a small voltage that varies with the pH level. This voltage is then amplified and conditioned by the onboard circuitry in the module. The resulting analog voltage can be read by an Arduino analog input pin (A0).

By using a simple Arduino sketch, you can easily convert the analog readings into corresponding pH values and display them on an LCD, OLED, or web interface.

Basic Arduino Connection Example:

• VCC → 5V

• GND → GND

• AOUT → A0 (Analog Input)

Optional calibration can be done using known buffer solutions (pH 4.0, 7.0, and 10.0) to improve accuracy.

Advantages of the Liquid pH Sensor Module

✔️ Covers the entire pH scale (0–14) for all types of liquids.
✔️ Easy to calibrate and integrate with any microcontroller.
✔️ Durable glass electrode ensures long-term measurement stability.
✔️ Analog output makes it simple to read data and process it in your code.
✔️ Perfect for IoT and automation projects that monitor or regulate liquid acidity.

Why Choose This Module

The Liquid pH 0–14 Detection Regulator Sensor Module is a cost-effective, easy-to-use, and highly accurate solution for measuring pH in real-time. Its plug-and-play design, wide compatibility, and robust performance make it a reliable component for both DIY makers and professional developers.

https://en.wikipedia.org/wiki/PH

From hydroponic gardens to industrial monitoring systems, this sensor gives you the data you need to keep liquids balanced and safe.
