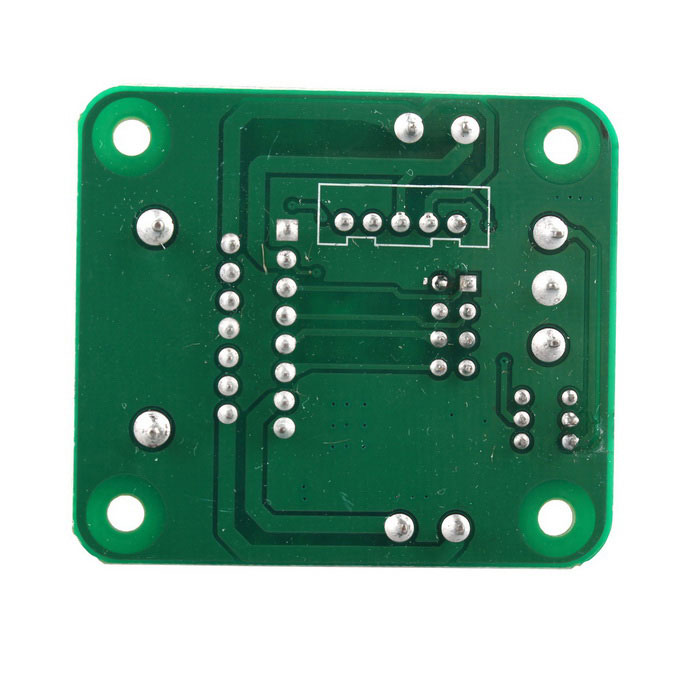

Original Chip Module

• The Driver Chip: dc motor driver chip L298N dual H bridge.
•  The Driving Part Of the Terminal Power Supply Scope Vs: 5V ~ 35V.

•  The Driving Part Of The Peak Current Io: 2A.
•  The Logical Part Vss Terminal Power Supply: 5V ~ 7V.

•  The Logical Part Of The Working Current Range: 0 ~ 36mA.
• Control Signal Input Voltage Range:

•  Enabling Signal Input Voltage Range:       Low level:-0.3≤Vin≤1.5V (control signal is invalid).       High level: 2.3V≤Vin≤Vss (control signal effectively).
•  The Maximum Power Consumption: 20W (T = 75C temperature).
•  Storage Temperature: 25C ~ 130C.
• Drive Plate Size: 48mm * 43mm * 33mm (with fixed copper column and fin height).
• A driver Board Weight: 32 gm.
•  Other Extensions: control the direction of light, logical part within plate for electrical interfaces.
