Key Features:

• ✅ USB and Bluetooth Connectivity – Supports direct USB connection to Android/PC and optional Bluetooth dongle for wireless communication.

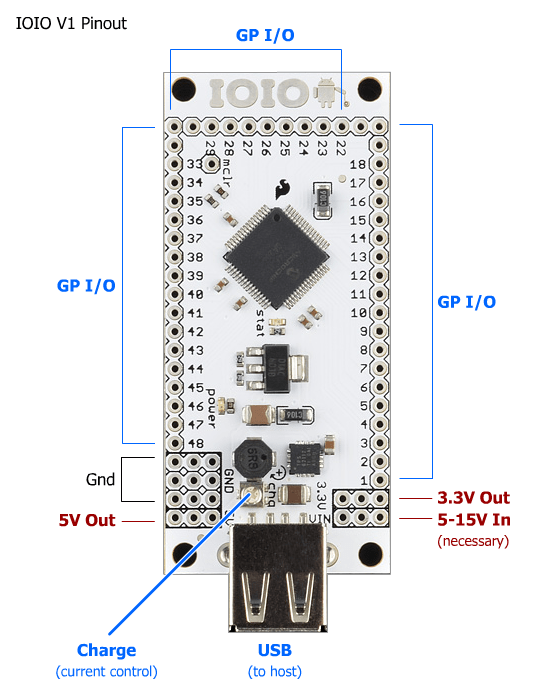

• ✅ Multiple I/O Pins – Over 40 I/O pins including digital I/O, PWM, analog input, I²C, SPI, and UART.

• ✅ Works with Android & PC – Easily integrates with Android phones/tablets and desktop applications using the provided libraries.

• ✅ Integrated 3.3V Regulator – Powers your peripherals with on-board voltage regulation.

• ✅ Overcurrent and Thermal Protection – Built-in safety features protect both the IOIO and your connected devices.

• ✅ Plug-and-Play Development – Minimal setup required; ideal for rapid prototyping and educational use.

Typical Applications:

• 📱 Android-controlled robotics and automation

• 🔌 Home automation systems

• 💡 Sensor monitoring and data logging

• 🧠 Educational electronics projects

• 🎛️ Remote control of electronics via smartphone

Technical Specifications:

• Microcontroller: PIC24F series (16-bit)

• Communication: USB (Full-speed), optional Bluetooth via dongle

• Supply Voltage: 5V via USB or external

• I/O Voltage: 3.3V logic (some 5V tolerant pins)

• Programming Language: Java (Android), Java or other on PC

• Dimensions: Approx. 65mm x 40mm

Package Includes:

• 1x IOIO Board (Original or compatible version)
