Electra

Features:_x000D_

Small size

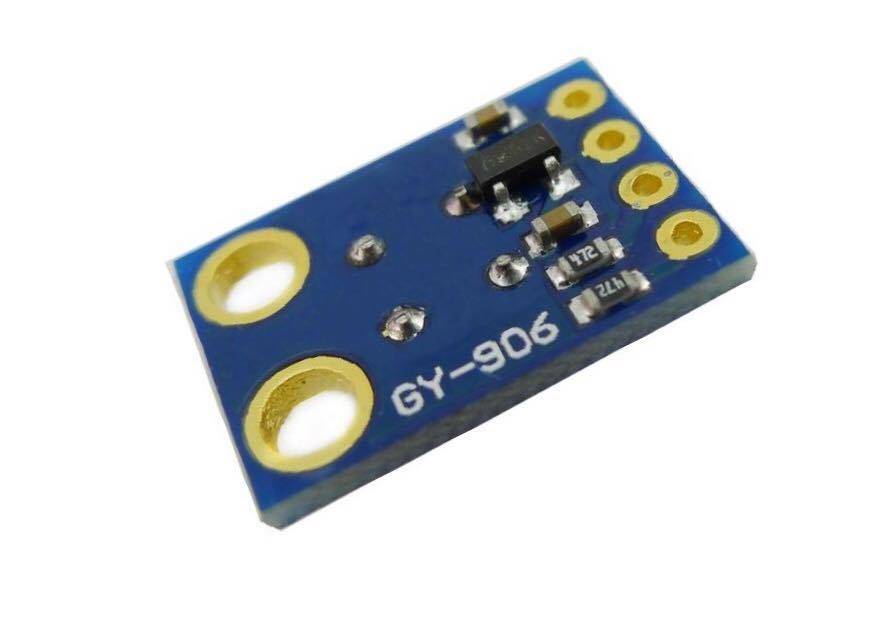

Mounted on a breakout board with two types of pins
10k Pull up resistors for the I2C interface with optional solder jumpers
Easy to integrate
High accuracy of 0.5 ° C over wide temperature range (0 ---> 50 ° C for both Ta and To) High (medical) accuracy calibration
The measurement resolution of 0.02 ° C
Single and dual-zone versions
SMBus compatible digital interface
Customizable PWM output for continuous reading
Simple adaptation for 8 ---> 16V applications
Sleep mode for reduced power consumption
Different package options for applications and measurements versatility
Automotive-grade
Factory calibrated in a wide temperature range:
_x000D_
- -40 ---> 125 ° C for sensor temperature and
- -70 ---> 380 ° C for object temperature.
_x000D_

_x000D_Applications Examples:_x000D_

High precision non-contact temperature measurements
Thermal Comfort sensor for Mobile Air Conditioning control system
The temperature sensing element for residential, commercial and industrial building air-conditioning Windshield defogging
The automotive blind angle detection
Industrial temperature control of moving parts
Temperature control in printers and copiers
Home appliances with temperature control
Healthcare
Livestock monitoring
Movement detection
Multiple zone temperature control up to 127sensors can be read via common 2 wires
Thermal relay/alert
Body temperature measurement

_x000D_For more information, Click on Datasheet, Sample Code_x000D__x000D_ _x000D__x000D_Circuit Connection_x000D__x000D__x000D__x000D_Package included:_x000D_
