F5305S MOSFET Module HW-548

F5305S MOSFET Module HW-548 – High Power Switching Module

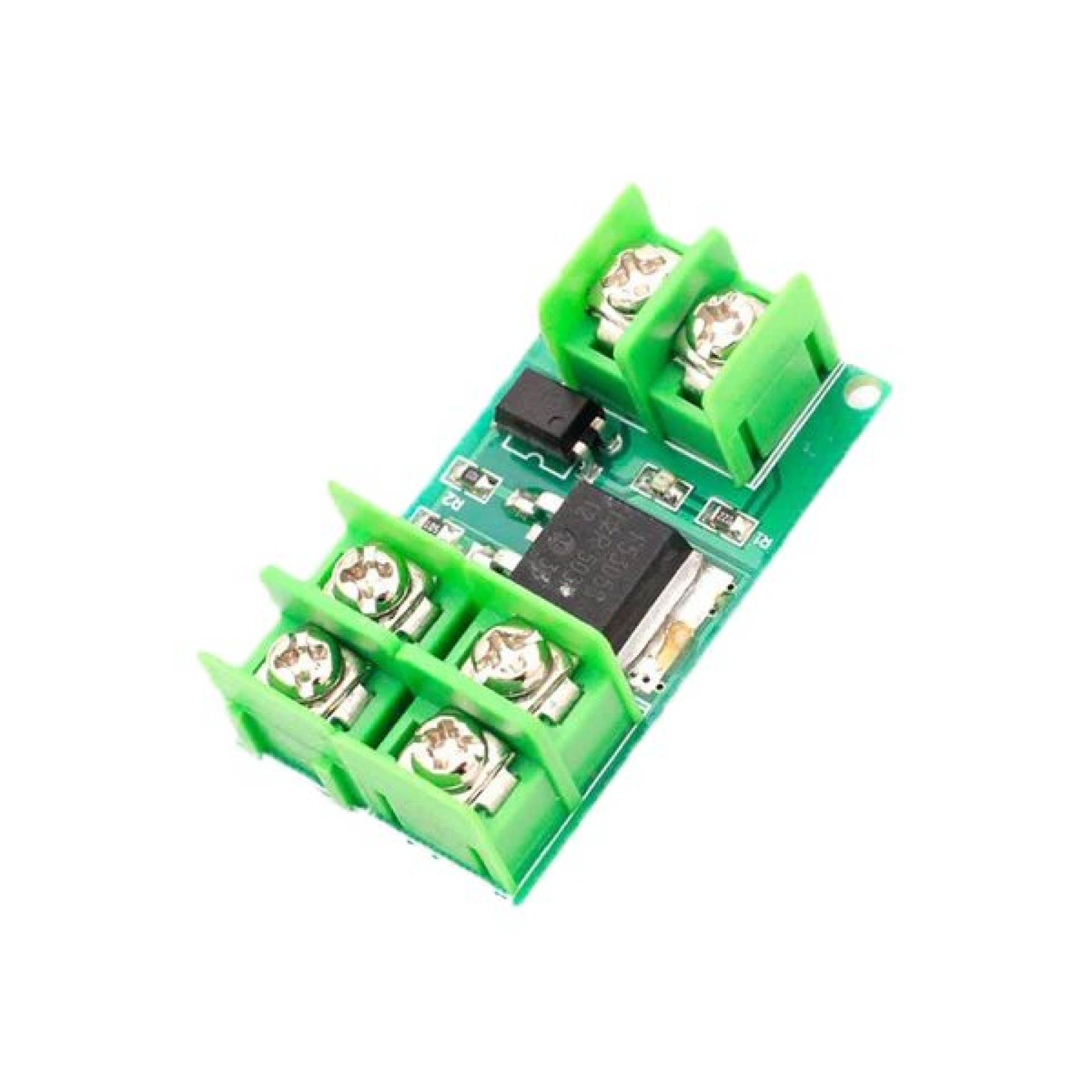

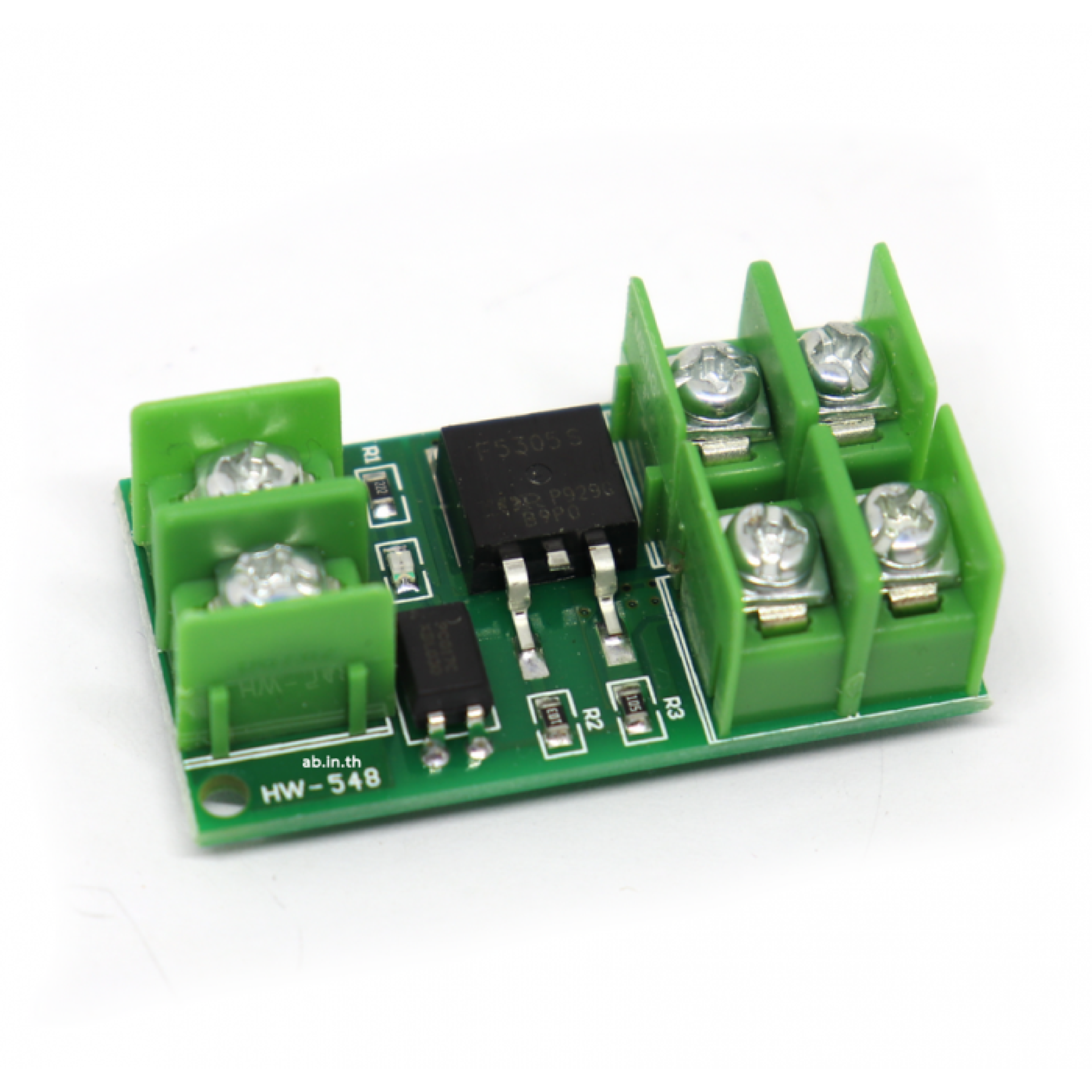

The F5305S MOSFET Module HW-548 is a compact and efficient high-current switching module designed for controlling power loads using low-voltage control signals. Built around the reliable F5305S P-Channel MOSFET, this module is ideal for applications requiring efficient switching of DC loads such as motors, LED strips, heaters, and power supplies.

This module uses a P-Channel MOSFET design, making it particularly suitable for high-side switching applications. Unlike N-channel modules that require gate drivers for high-side use, the F5305S module simplifies circuit design by allowing direct control from microcontrollers. It can be easily interfaced with platforms such as Arduino Uno, ESP32 development board, and other 3.3V/5V logic systems.

With its ability to handle high current loads, the HW-548 module ensures efficient power control with minimal heat generation due to its low on-resistance (RDS(on)). The onboard design typically includes gate resistors and protection components, helping to improve switching stability and protect both the MOSFET and the control circuit.

The module features screw terminals or solder pads for easy connection of power and load, making it convenient for both prototyping and permanent installations. Its compact PCB layout allows it to be integrated into tight spaces while still delivering reliable performance.

Whether you're working on automation systems, battery-powered devices, or DIY electronics, the F5305S MOSFET Module HW-548 provides a simple and effective solution for high-side power switching.

Features:

• P-Channel MOSFET high-side switching module

• Based on F5305S MOSFET

• Supports high current loads

• Low RDS(on) for high efficiency

• Compatible with 3.3V and 5V logic control

• Easy interface with microcontrollers

• Compact and ready-to-use module

• Stable switching performance

• Suitable for DC load control

Specifications:

• MOSFET Type: P-Channel

• Model: F5305S

• Drain-Source Voltage (Vds): -55V (typical)

• Continuous Current: Up to ~20–30A (with proper cooling)

• Gate Threshold Voltage: Low (logic-level compatible)

• RDS(on): Low (varies by batch)

• Module Type: HW-548

• Control Voltage: 3.3V / 5V

• Operating Temperature: -40°C to +150°C

Applications:

• High-side load switching

• Motor control systems

• LED strip switching

• Battery-powered circuits

• Power distribution systems

• Smart home and automation projects

• DIY electronics and prototyping
