Key Features:

• Compatible with ESP32 30-Pin Boards: Designed for seamless integration with standard ESP32 Dev Boards (30 pins).

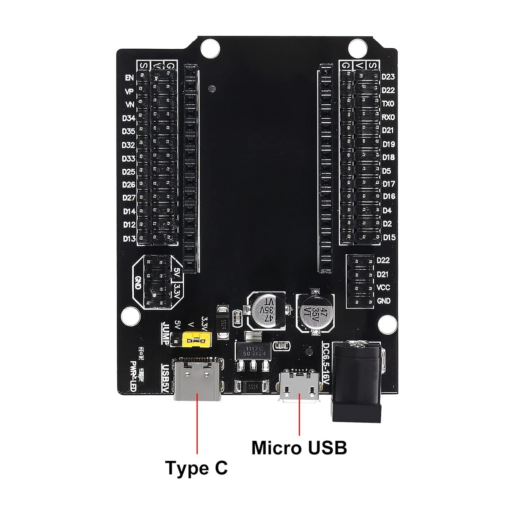

• Dual USB Interface: Both USB Type-C and Micro USB ports for convenient power and programming options (only one active at a time).

• Easy Access to GPIOs: Breaks out all 30 pins to headers with clear labels – ideal for breadboarding and module connections.

• Stable Power Supply: Integrated voltage regulation circuit supports 5V input and provides stable 3.3V output.

• Compact & Durable Design: High-quality PCB with anti-slip rubber feet and mounting holes.

Applications:

• ESP32 prototyping and development

• IoT and smart device projects

• Rapid testing of sensors and modules

• Educational electronics and embedded systems

• Reliable lab bench interface for ESP32-based designs

Technical Specifications:

• Supported Boards: ESP32 Dev Board (30-pin version)

• USB Ports: 1 x Type-C, 1 x Micro USB (switchable)

• Pin Headers: Female headers with 2.54mm pitch

• Voltage Input: 5V via USB

• Voltage Output: 3.3V and 5V rails available on board

• Dimensions: Approx. 85mm x 60mm

Streamline your ESP32 development process with this dual USB 30P Expansion Board, offering cleaner wiring, more robust connections, and greater convenience for your IoT, automation, and prototyping projects.
