Key Features

✔ Flame Detection Range – Up to 1 meter (adjustable via potentiometer). ✔ Dual Output Modes – Digital (TTL) & Analog for versatile use. ✔ High Sensitivity – Detects 760nm–1100nm wavelength (typical of flames). ✔ Adjustable Threshold – Onboard potentiometer to fine-tune sensitivity. ✔ Fast Response Time – Reacts instantly to flame presence. ✔ LED Indicator – Lights up when flame is detected (digital mode). ✔ Low Power Consumption – Works at 3.3V–5V DC.

Technical Specifications

Operating Voltage: 3.3V–5V DC
Detection Spectrum: 760nm–1100nm (IR range of flames)
Output Signals:
- Digital (DO): TTL logic (HIGH/LOW) – adjustable threshold
- Analog (AO): Voltage proportional to flame intensity
Detection Angle: ~60°
Response Time: <100ms
Dimensions: 32mm × 15mm × 8mm
Weight: ~5g

Applications

Fire Alarm Systems – Early warning for homes/offices.
Robotics – Fire-fighting robots or competition bots.
Industrial Safety – Monitor machinery for overheating/flames.
DIY Projects – Camping safety devices or smart stove monitors.
Educational Kits – Learn about IR sensing and safety electronics.

How It Works

Power the Module – Connect VCC (3.3V–5V) and GND to a microcontroller.
Select Output Mode:
- Digital (DO): Triggers a HIGH/LOW signal when flame is detected.
- Analog (AO): Provides a variable voltage for flame intensity analysis.
Adjust Sensitivity – Use the potentiometer to set the detection threshold.
Read Output – Use Arduino/RPi to process signals and trigger alarms/actions.

Package Includes

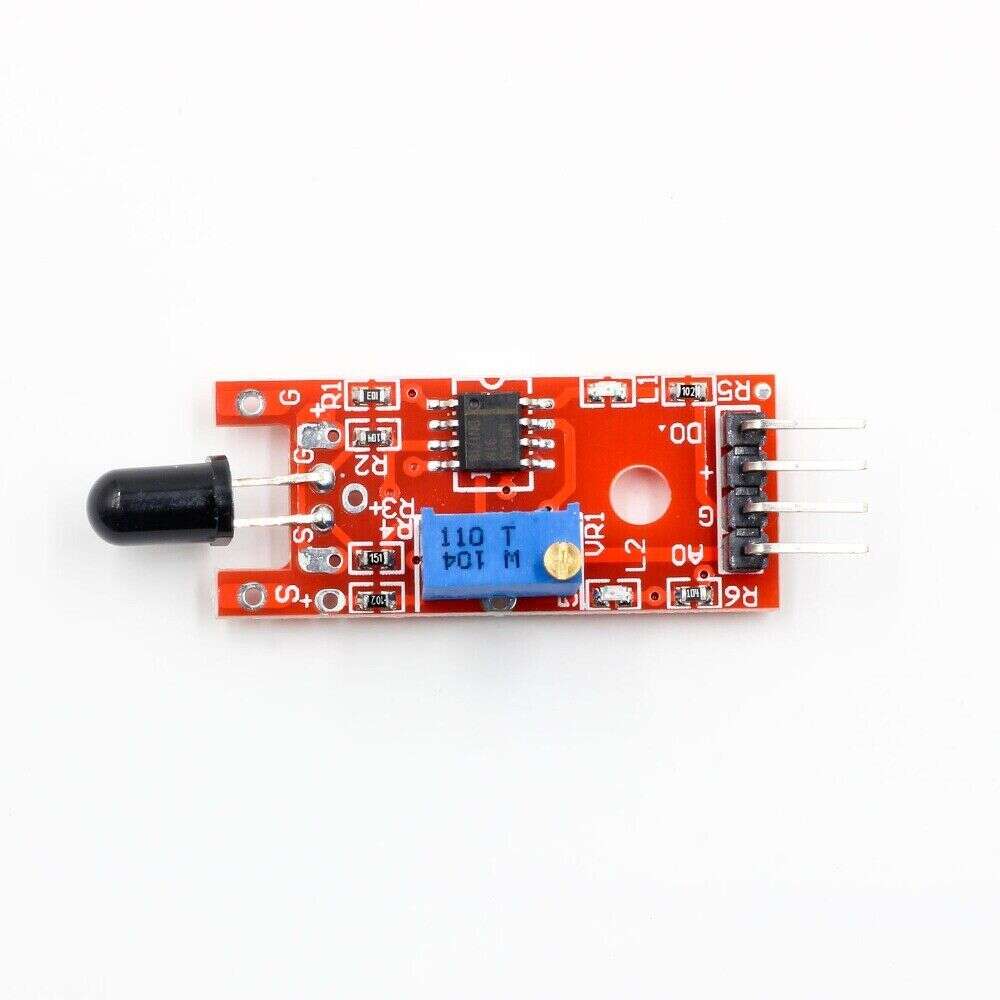

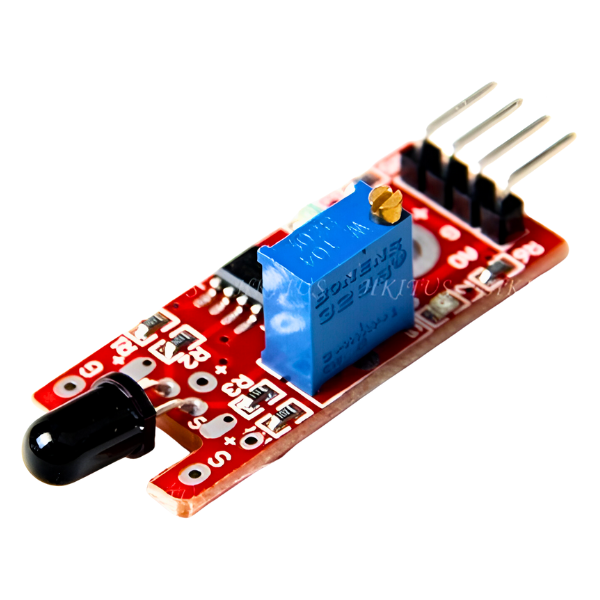

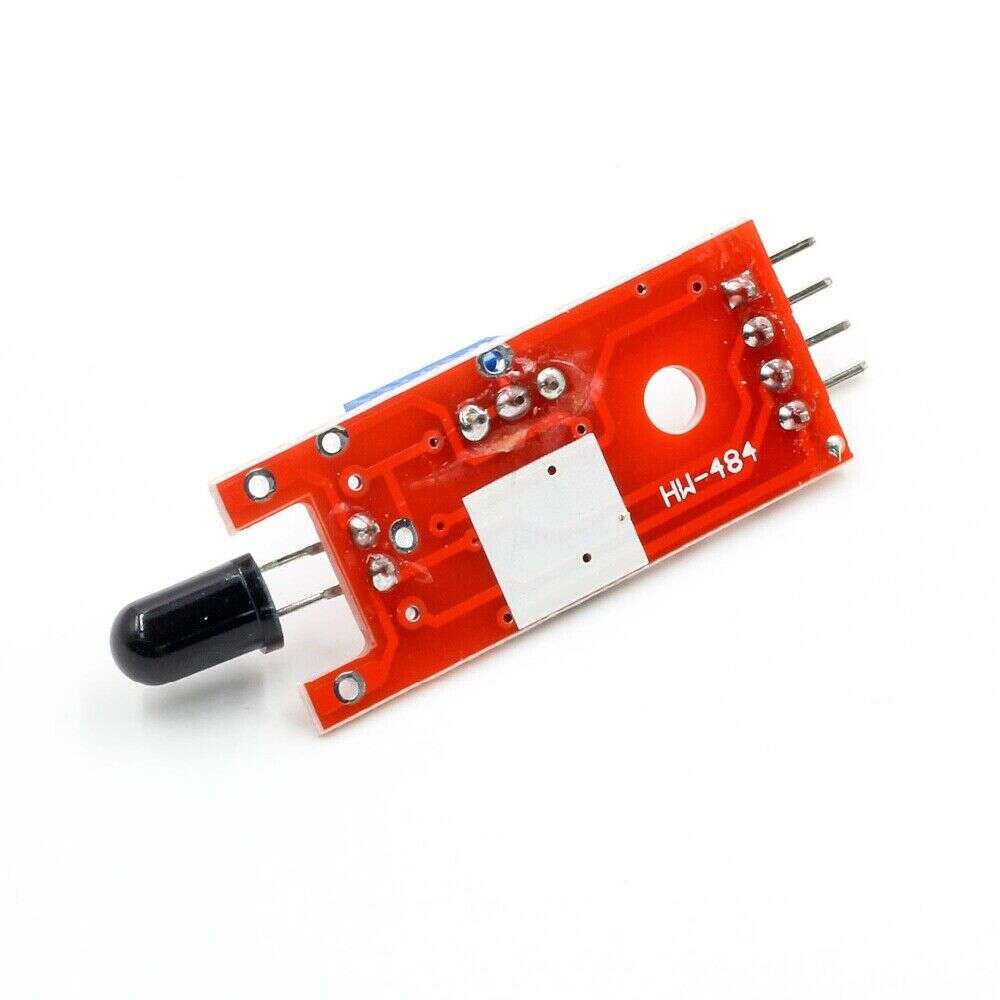

1 × 4-Pin Flame Sensor Module
(Optional) Jumper wires for quick connections

Why Choose This Flame Sensor?

✅ Reliable Detection – Accurately distinguishes flames from ambient light. ✅ Easy to Use – Works out of the box with Arduino/RPi. ✅ Compact & Durable – Small footprint for embedded projects. ✅ Cost-Effective – Affordable fire-sensing solution.
