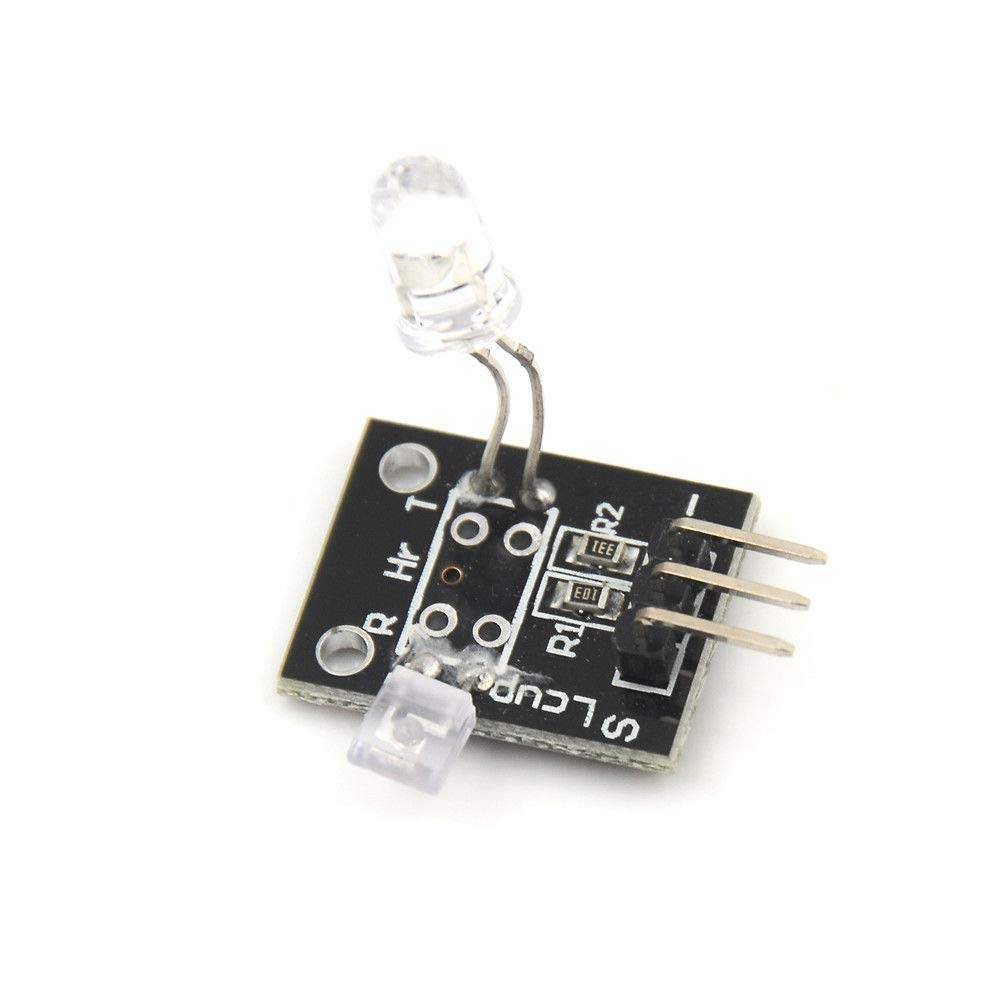

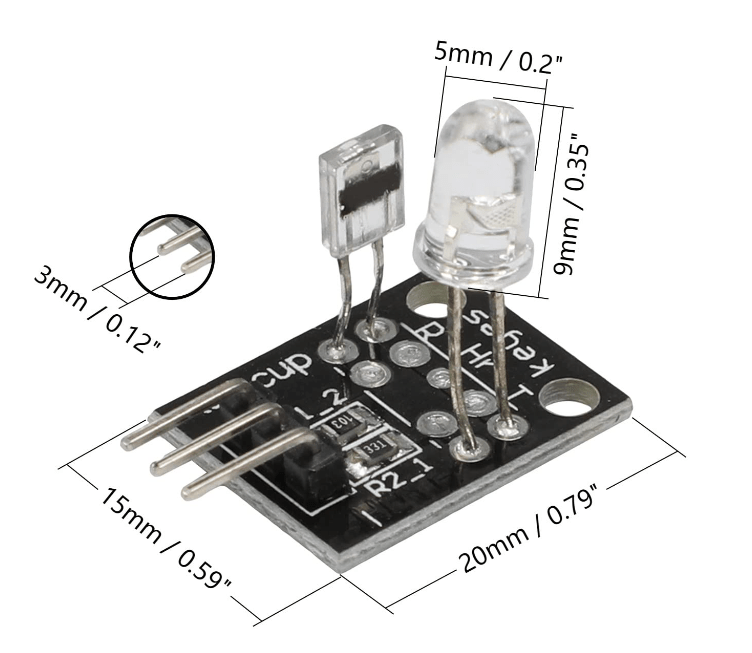

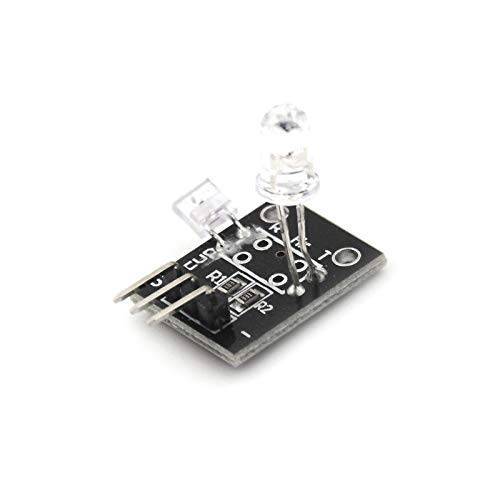

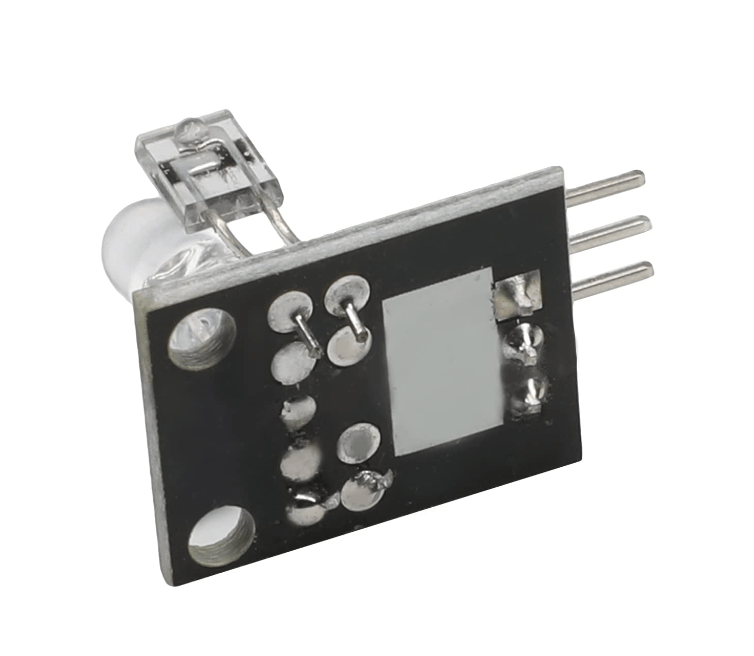

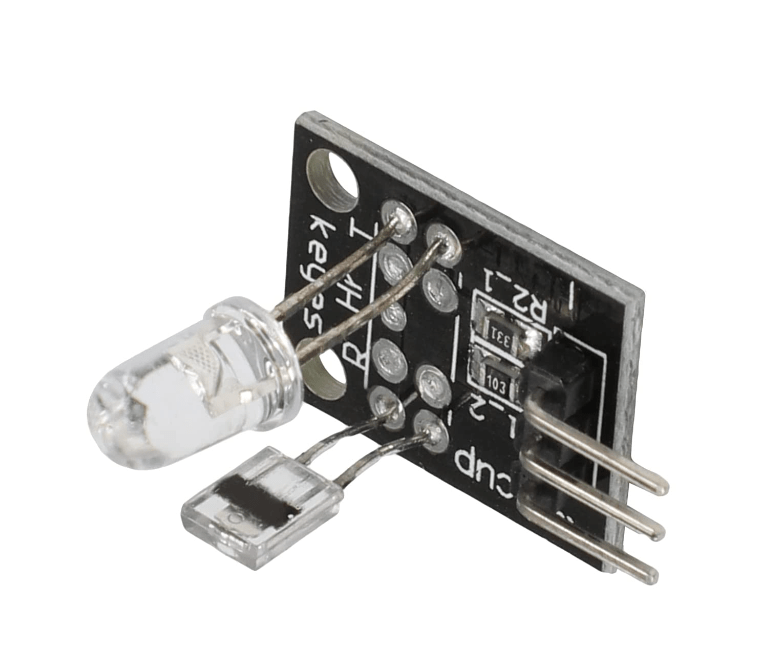

Heartbeat Sensor Module KY039

• The Heartbeat Sensor Module KY039 is designed to detect a pulse while a human finger is place between the infrared diode and the photo transistor.  The pulse will be represented on the signal output pin.

• This sensor works by using a photo transistor to detect the presence of light, in this case how much light is passing through a finger.  When blood moves, the amount of light changes and that change can be detected as a pulse.
• This project uses bright infrared (IR) LED and a phototransistor to detect the pulse of the finger, a red LED flashes with each pulse.
• Pulse monitor works as follows: The LED is the light side of the finger, and phototransistor on the other side of the finger, phototransistor used to obtain the flux emitted, when the blood pressure pulse by the finger when the resistance of the phototransistor will be slight changed.
• We chose a very high resistance resistor R1, because most of the light through the finger is absorbed, it is desirable phototransistor sensitive enough. Resistance can be selected by experiment to get the best results.
• The most important is to keep the shield stray light into the phototransistor. For home lighting that is particularly important because the lights at home mostly based 50HZ or 60HZ fluctuate, so faint heartbeat will add considerable noise.

 DEVICE PINOUT & SCHEMATICS:

• This module has three pins: GND, Vcc , and Signal.  The pinout is as follows:

• The KY-039 heartbeat sensor schematic is as follows:

CODE EXAMPLES:

• You’ll find below code examples of using the KY-039 heartbeat sensor with both Arduino

• KY-039 HEARTBEAT SENSOR CODE EXAMPLE FOR ARDUINO

  The following code example is for the Arduino. This code will read the Analog Output Sensor value and write it to the serial console, pause 500ms and repeat.

  ARDUINO WIRING:

  • KY-039 Sensor GND to Arduino GND
  • KY-039 Sensor Signal to Arduino PIN A0
  • KY-039 Sensor Vcc  to Arduino 5V



  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41

  int ledPin=13; int analogPin=0;   void setup() {   // The included LED of the Arduino (Digital 13), will be used as output here.   pinMode(ledPin,OUTPUT);       // Serial output initialization   Serial.begin(9600);   Serial.println("Heartbeat detection example code"); }   const int delayMsec = 60; // 100msec per sample   // The main program has two tasks: // - The LED will light up after detecting a heart beat // - Calculating of the pulse and outputting of it at the serial out.   void loop() {   static int beatMsec = 0;   int heartRateBPM = 0;       Serial.println(rawValue);   if (heartbeatDetected(analogPin, delayMsec)) {     heartRateBPM = 60000 / beatMsec;     // LED-output for the heart beat heart beat     digitalWrite(ledPin,1);       // Output of the serial data     Serial.print(rawValue);     Serial.print(", ");     Serial.println(heartRateBPM);           beatMsec = 0;   } else {     digitalWrite(ledPin,0);   }   delay(delayMsec);   beatMsec = delayMsec; }

  Pinout

  This module has 3 pins:

  • S: Analog output signal
  • VCC: Module power supply – 5V
  • GND: Ground

  You can see the pinout of this module here.





  Required Materials





  Hardware Components

  Arduino UNO R3	×	1
  Module	×	1
  Male to Female jumper wire	×	1



  Software Apps

  Arduino IDE



  Interfacing with Arduino



  Step 1: Circuit

  The following circuit shows how you should connect Arduino to this module. Connect wires accordingly.





  Step 2: Code

  Upload the following code to Arduino. After that open the Serial Plotter.

      /*

    Made on Jan 16, 2021

    By MehranMaleki @ Electropeak

    Home

  */



  void setup() {

    pinMode(A0, INPUT);

    Serial.begin(9600);

  }



  void loop() {

    float pulse;

    int sum = 0;

    for (int i = 0; i < 20; i  )

      sum  = analogRead(A0);

    pulse = sum / 20.00;

    Serial.println(pulse);

    delay(100);

  }



  Arduino

  In this code, pin A0 of Arduino is used to receive the analog output data. In order to reduce the effect of noise on output, the average of last 20 output data is used. By placing your finger on the module, you can see how it works. The output is as follows.



• 1 X Finger Measuring Heartbeat Sensor Module
