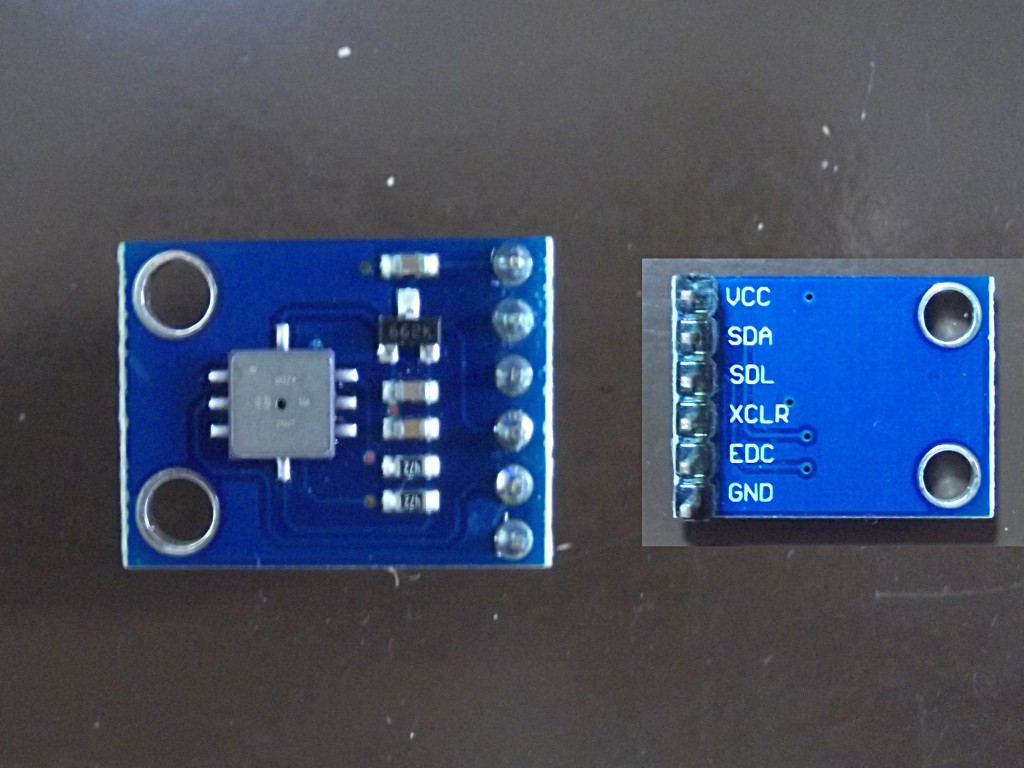

GY-65 BMP085 Atmospheric Pressure Altimeter Module

Main features:

•  Pressure range: 300 - 1100hPa (9000 meters above sea level to -500 m)
• Power supply voltage: 1.8V - 3.6V (the VDDA)
•  1.62V - 3.6V (VDDR)
•  LCC8 package: lead-free ceramic carrier package (LCC)
•  Size: 5.0mmx5.0x1.2mm
•  Low power consumption: 5A in standard mode
•  Precision: low-power mode, the resolution of 0.06hPa (0.5 m)
•  High linear mode with a resolution of 0.03hPa (0.25 m)
•  With temperature output
•  I2C interface
•  Temperature compensation
•  Lead-free, RoHS compliant,
•  Response time: 7.5ms
•  Standby current: 0.1 A
•  Eliminates the need for an external clock circuit

Typical applications:

Package Included:
