12V Delay Timer Switch Adjustable
Electra Store
SKU: CM-27930
45.00 EGP
In Stock
1
Categories: Other Modules
Description

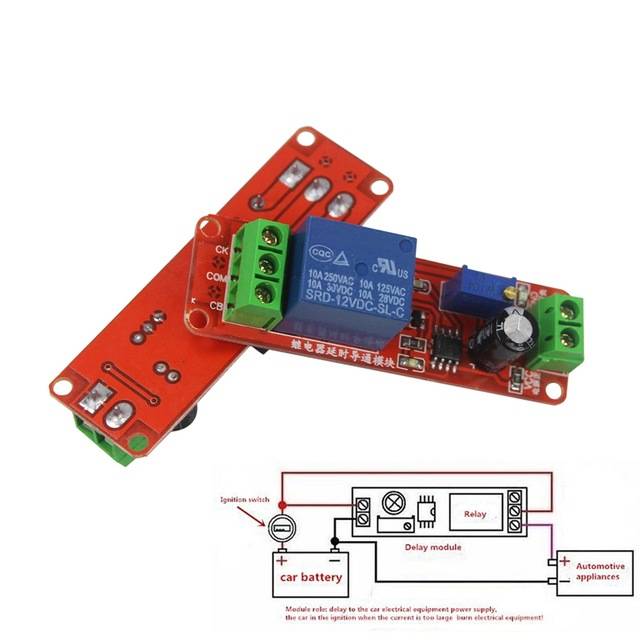

- The relay will delay to close after connecting with the power supply
- The time of delay can be adjusted from 0-10s
- With relay current protection function
- Increase of the potentiometer leads to time delay increase.
- Enlarging the capacitor leads to time delay increase.

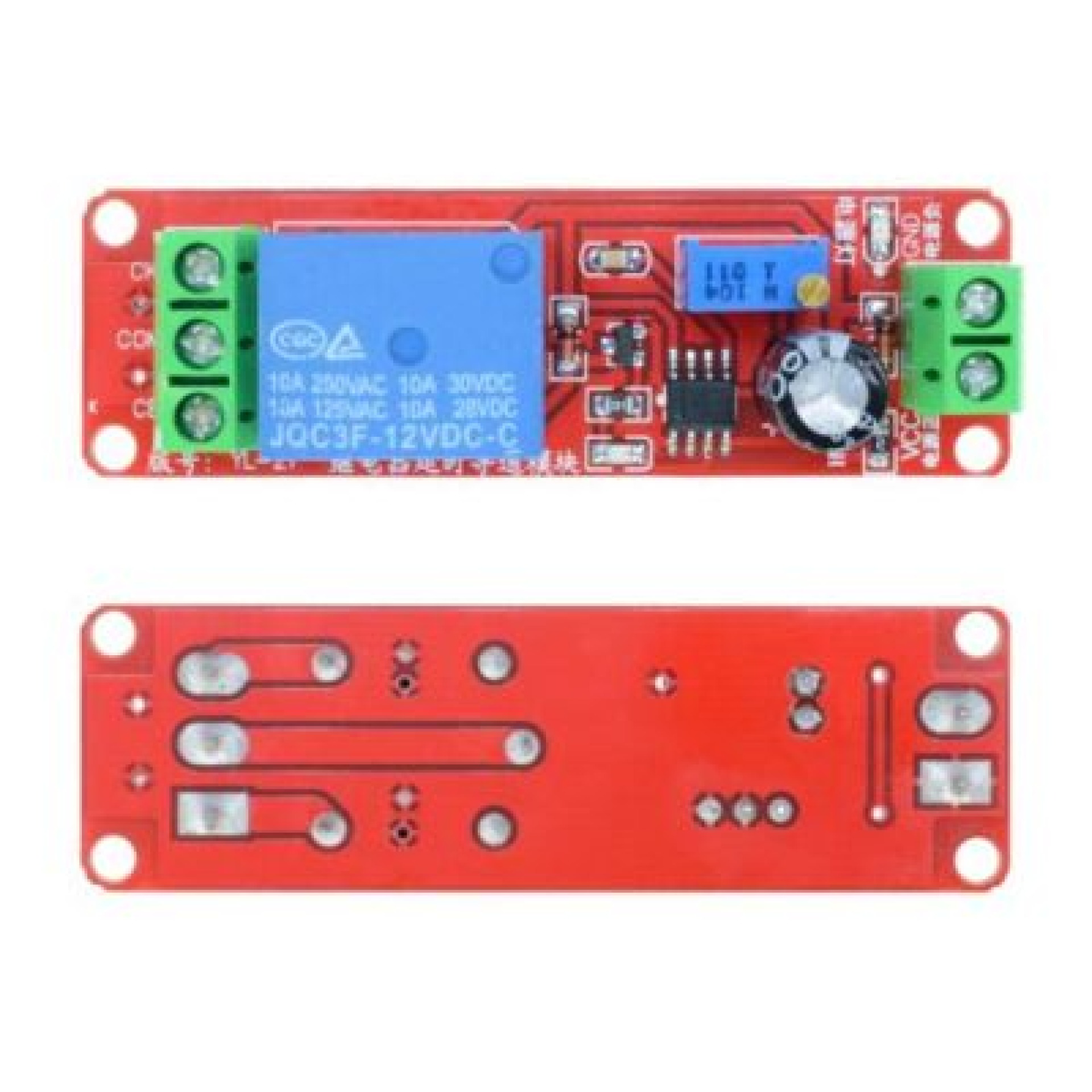

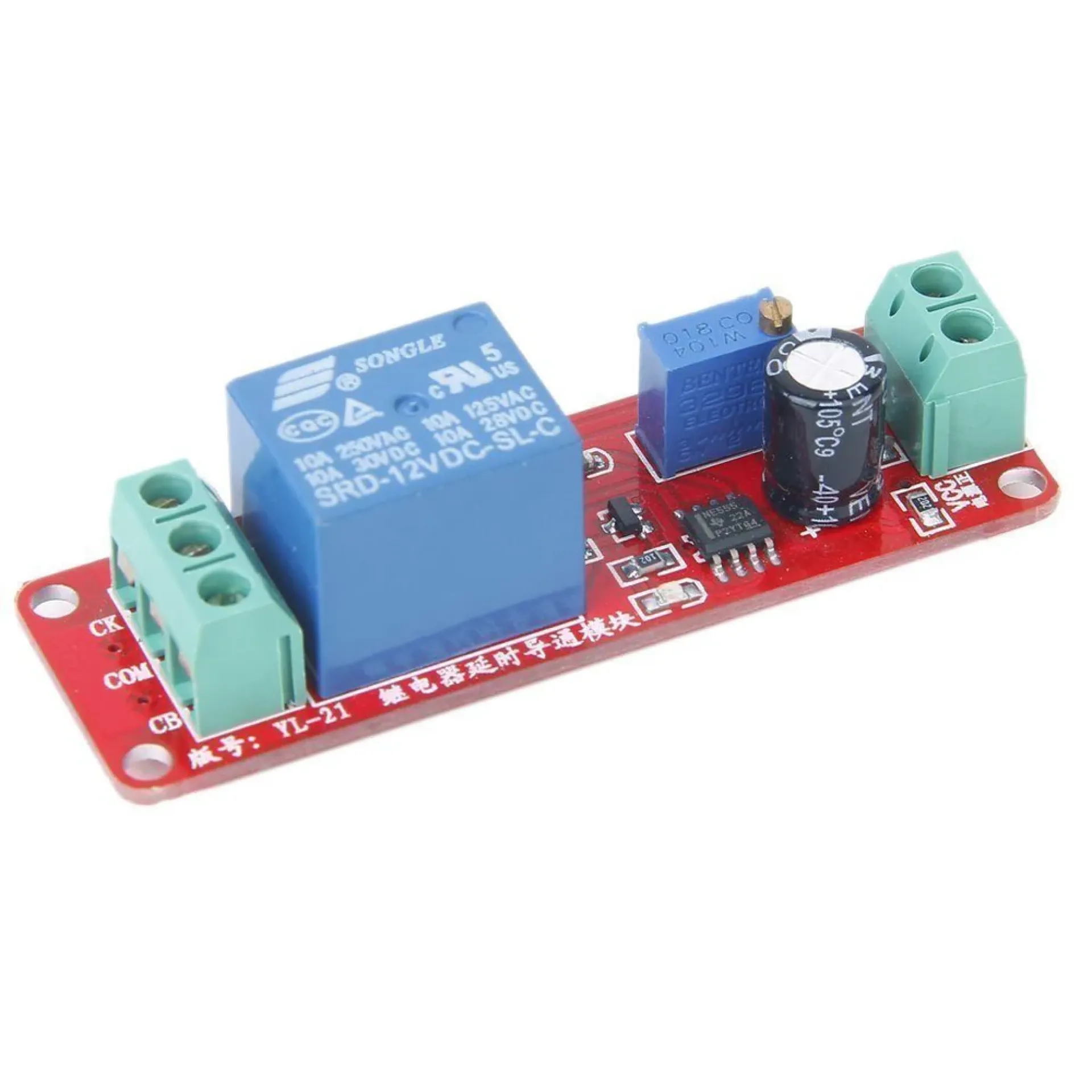

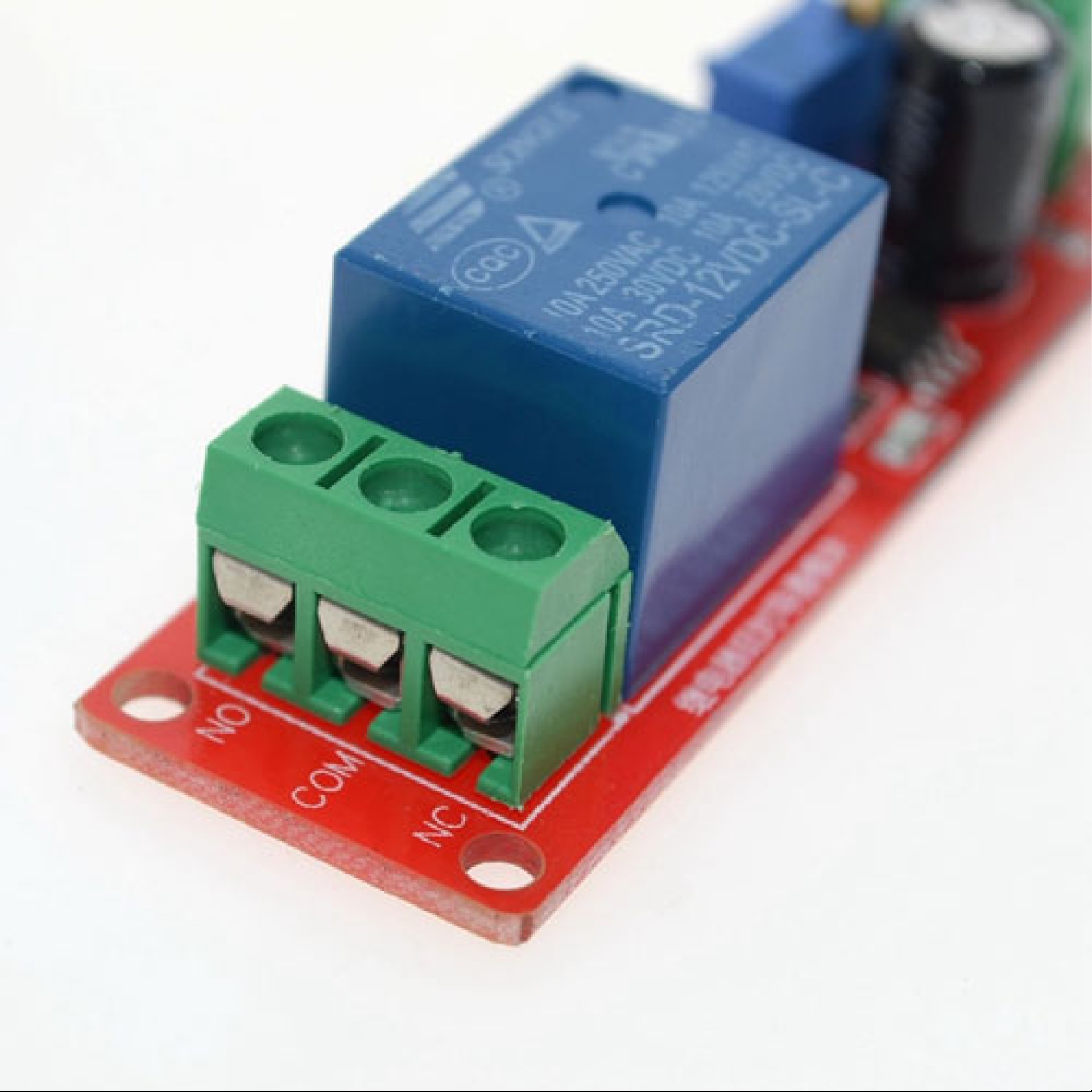

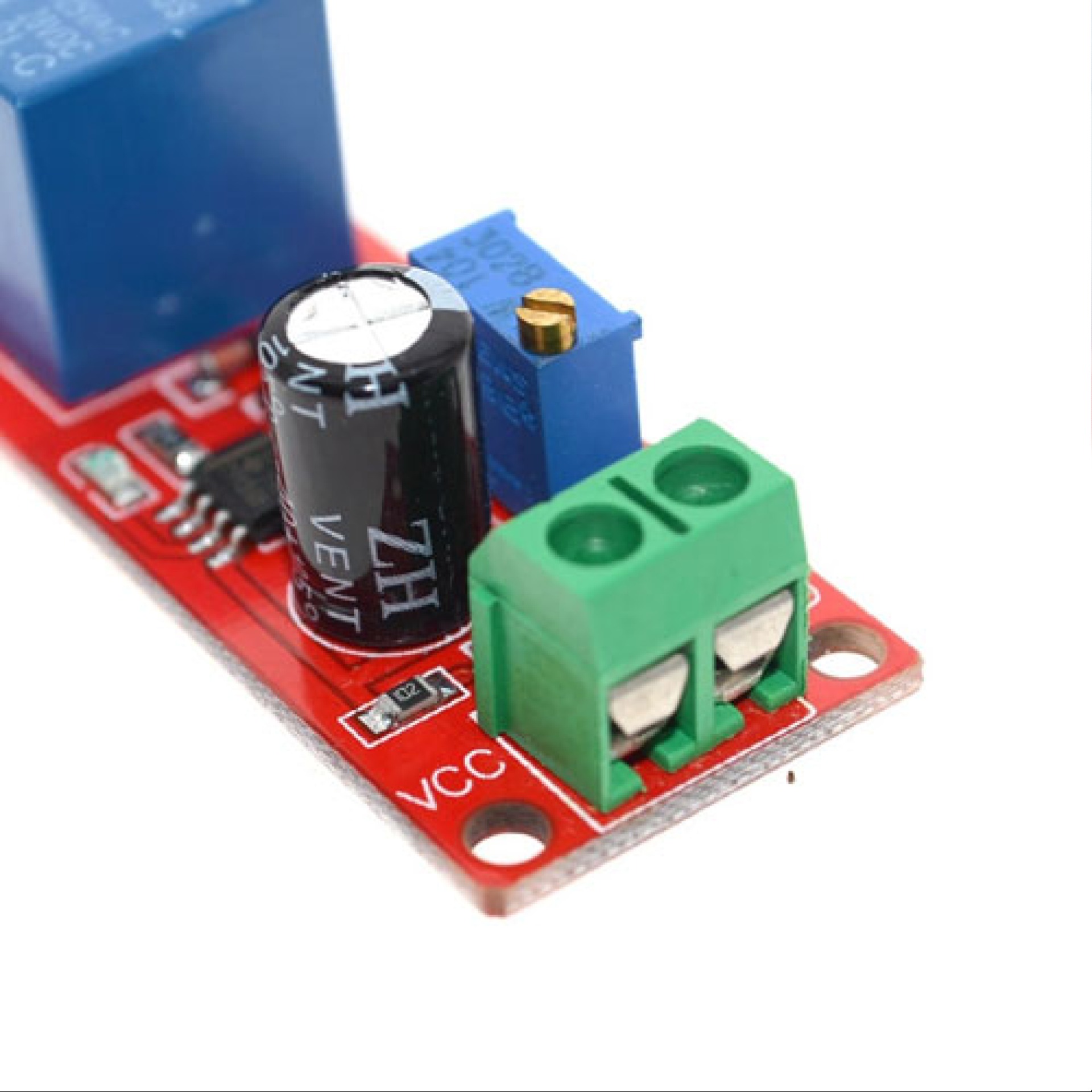

- 1 channel relay interface board
- Module Properties: NE555 chip
- Input Voltage: DC12V
- Adjustable Time: 0 – 10 sec
- Control Voltage: AC 0~250V/ max. 10A, DC 0-30V/max. 10A
- Max. Loading: 2200W
- Weight: 19 g
- Dimensions: 67 x 21 mm (L X H)
- 1 X 12V Delay Timer Switch Adjustable 0 to 10 Second with NE555 Oscillator
