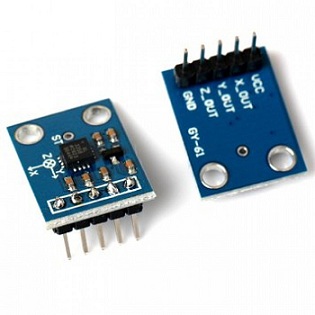

GY-61 DXL335 3-Axis Accelerometer Module
Electra Store
SKU: MD-22932
180.00 EGP
In Stock
1
Categories: Other Modules
Description
The ADXL335 (GY-61) is a small, low power, complete 3-axis accelerometer with signal conditioned voltage outputs. It can measure the static acceleration of gravity in tilt-sensing applications, as well as dynamic acceleration resulting from motion, shock, or vibration.
Specifications:
- Operating Voltage: 3V to 6V DC
- Operating Current: 350μA
- Sensing Range: ±3g
- 3-axis sensing
- High Sensitivity for small movements
- Onboard LDO Voltage regulator
- Can be interfaced with a 3V or 5V Microcontroller.
- Ultra-Low Power: 40uA in measurement mode
- Tap/Double Tap Detection
- Free-Fall Detection
- Analog output
- Build-in ultra-low noise linear LDO voltage regulator
- Built-in onboard filters, which reduce noise from the motor and other high current electronics
- Power LED
- Designed for 5V logic level
Package Included:
- 1 X GY-61 (ADXL335) 3-axis Analog Output Accelerometer Module angular transducer
