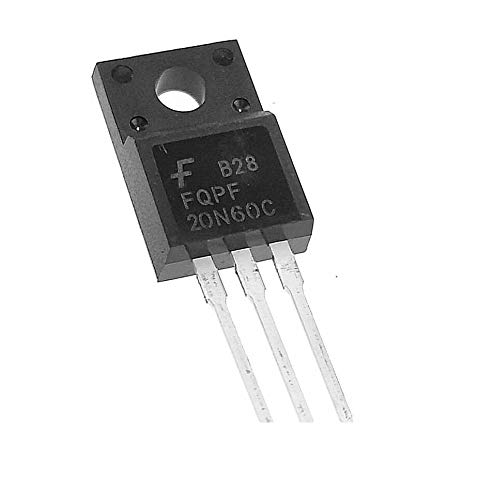

FQPF20N60C N-Channel MOSFET Transistor 600V, 20A TO-220F
In Stock
Categories: Components
Description
FQPF20N60C N-Channel MOSFET Transistor 600V, 20A TO-220F
Key Features:
-
High Voltage Rating:Â 600V drain-to-source voltage (V<sub>DSS</sub>) for reliable power switching.
-
High Current Capacity: Continuous drain current (I<sub>D</sub>) of 20A, suitable for demanding applications.
-
Low On-Resistance: R<sub>DS(on)</sub> of 0.28Ω (max) @ V<sub>GS</sub> = 10V, ensuring efficient power handling with minimal losses.
-
Fast Switching Performance:Â Optimized for high-frequency applications.
-
TO-220F Package:Â Insulated (fully molded) version of TO-220, providing electrical isolation and easy mounting.
-
Avalanche Energy Rated:Â Enhanced durability in inductive load conditions.
-
Low Gate Charge (Q<sub>g</sub>):Â Reduces drive power requirements, improving efficiency.
Applications:
-
Switched-Mode Power Supplies (SMPS)
-
Motor Drives & Inverters
-
AC/DC & DC/DC Converters
-
Industrial & Automotive Electronics
-
Lighting Ballasts & UPS Systems
Technical Specifications:
| Parameter | Value |
|---|---|
| Drain-Source Voltage (V<sub>DSS</sub>) | 600V |
| Continuous Drain Current (I<sub>D</sub>) | 20A |
| Pulsed Drain Current (I<sub>DM</sub>) | 80A |
| Gate-Source Voltage (V<sub>GS</sub>) | ±30V |
| On-Resistance (R<sub>DS(on)</sub>) | 0.28Ω (max) @ V<sub>GS</sub> = 10V |
| Power Dissipation (P<sub>D</sub>) | 125W |
| Operating Junction Temperature (T<sub>J</sub>) | -55°C to +150°C |
| Package Type | TO-220F (Insulated, Fully Molded) |
