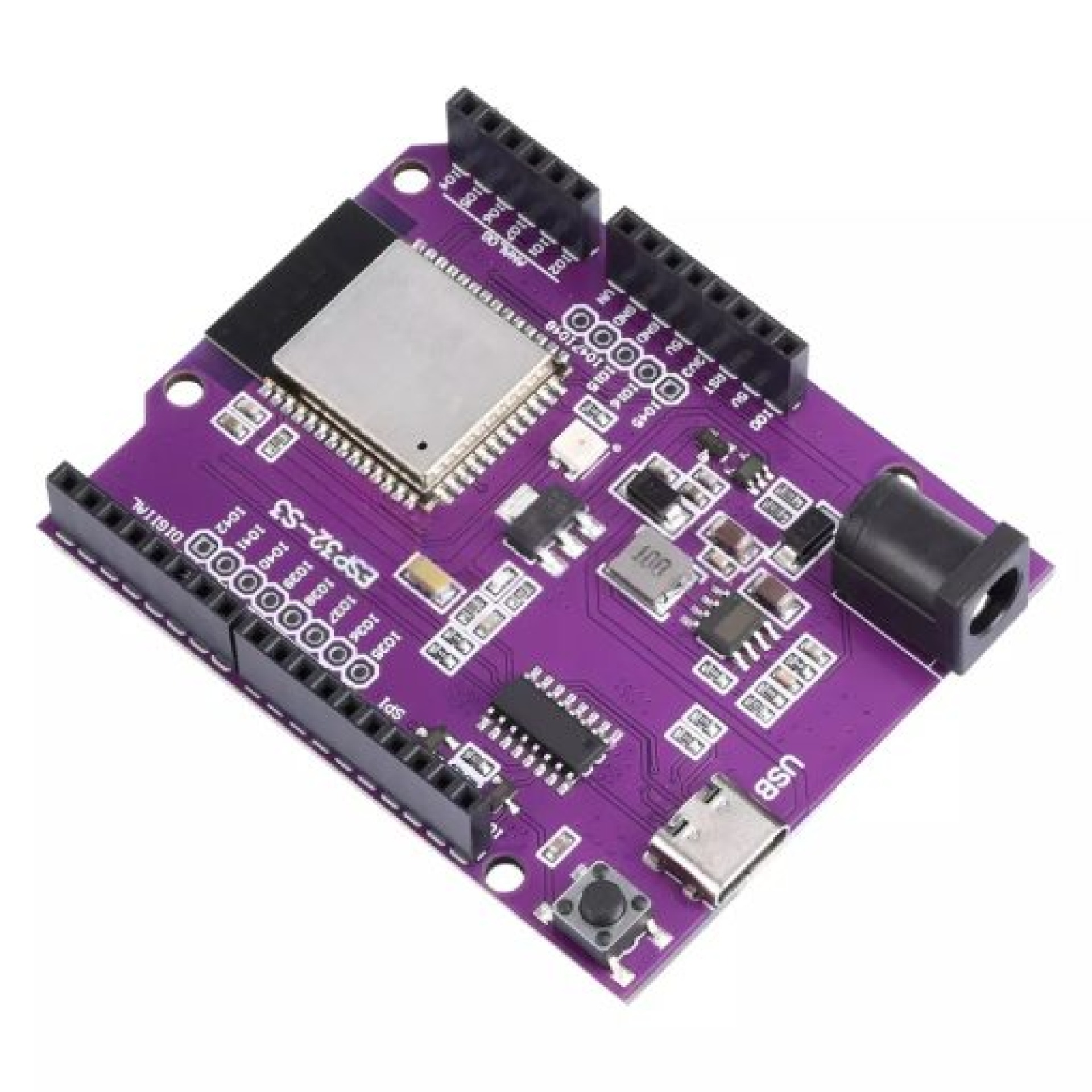

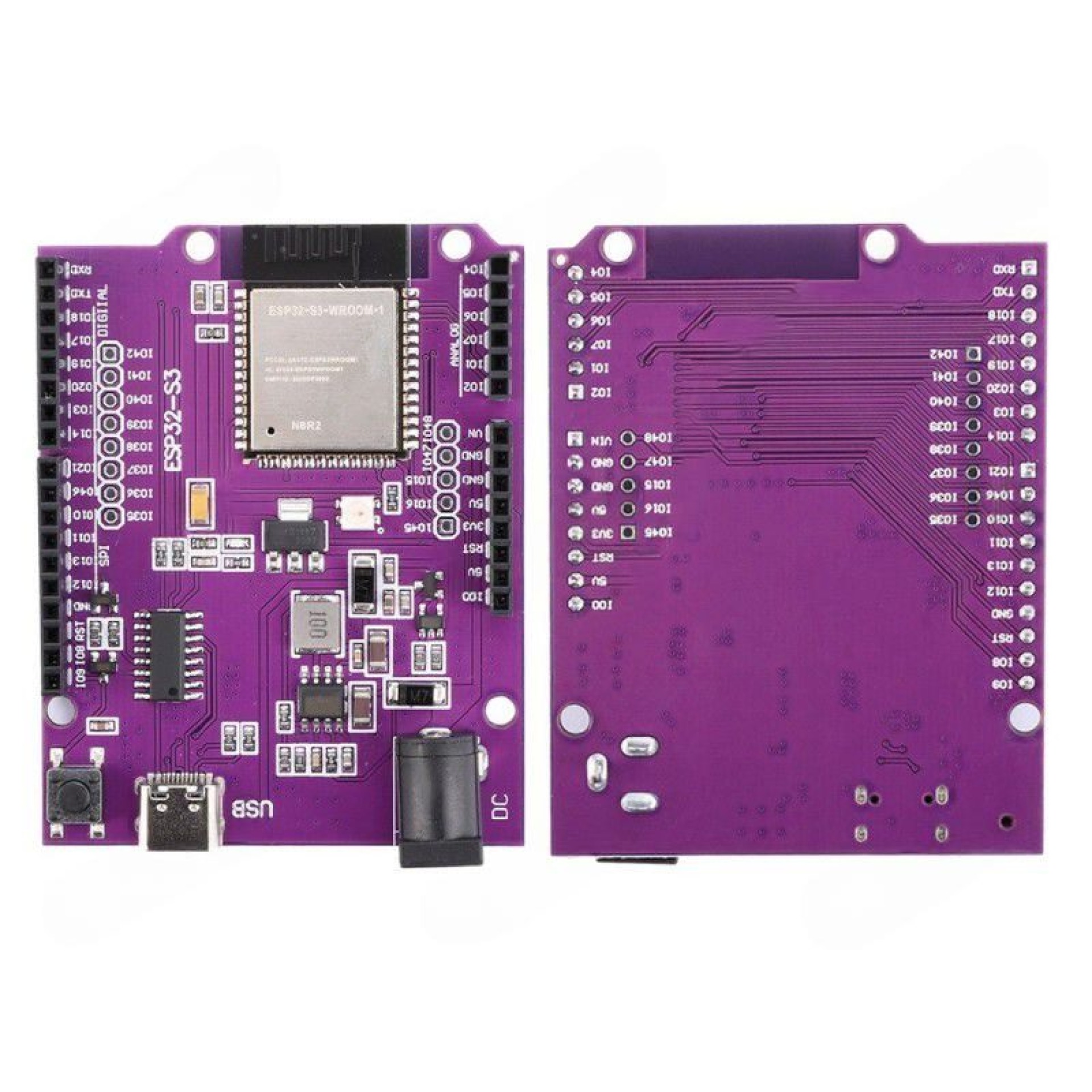

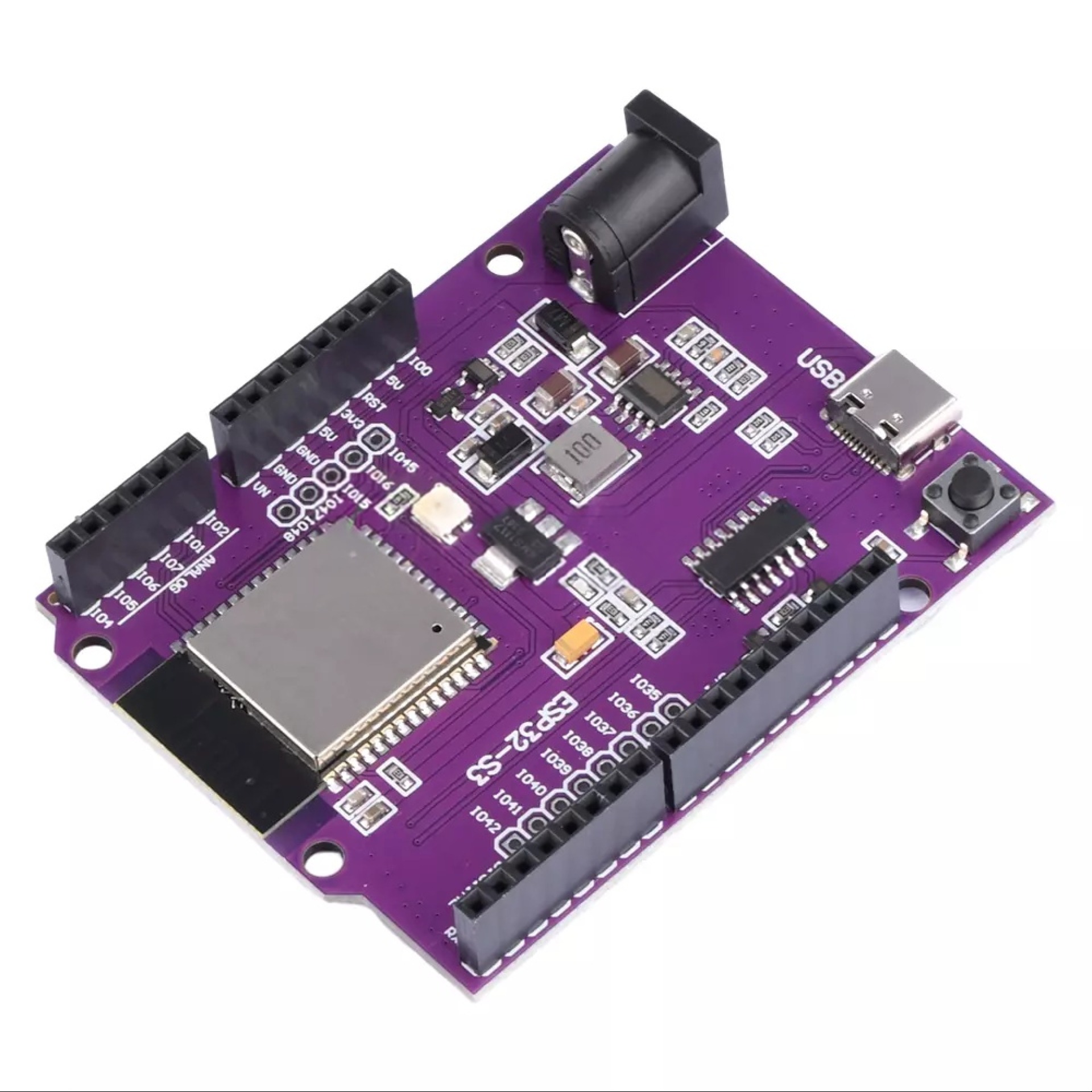

ESP32-S3 N16R8 UNO Development Board WiFi & Bluetooth

The ESP32-S3 N16R8 UNO Development Board is a high-performance development platform based on the ESP32-S3-WROOM-1-N16R8 module. It combines a dual-core Xtensa LX7 processor running at up to 240 MHz with 16 MB of Flash memory and 8 MB of PSRAM, providing the processing capability and memory resources required for advanced IoT, embedded systems, wireless communication, and edge-AI applications.

The board integrates 2.4 GHz Wi-Fi and Bluetooth 5 Low Energy (BLE) connectivity, allowing it to communicate with cloud services, smartphones, sensors, and other wireless devices. Wi-Fi supports IEEE 802.11 b/g/n, while the Bluetooth subsystem supports Bluetooth LE features including long-range PHY modes and Bluetooth Mesh. These wireless capabilities make the board suitable for connected embedded systems without requiring an external communication module.

Its UNO-compatible form factor makes the ESP32-S3 N16R8 particularly convenient for projects designed around the familiar Arduino board layout. The board exposes GPIO connections for digital and analog interfacing while supporting common embedded communication protocols such as UART, SPI, I²C, and I²S. This allows developers to connect displays, sensors, motor controllers, communication modules, and other peripherals directly to the development board.

The ESP32-S3 architecture also provides hardware features useful for AI and signal-processing applications. The processor includes vector instructions that can accelerate neural-network and digital-signal-processing workloads, while the additional PSRAM provides more working memory for applications involving larger buffers, graphics, audio, or machine-learning workloads.

For development and programming, the board can be used with popular ESP32 development environments including Arduino IDE, ESP-IDF, and PlatformIO. Depending on the specific board implementation, USB connectivity can provide programming, debugging, serial communication, and native USB functions. Current N16R8 board variants commonly include dual USB Type-C interfaces and onboard USB-to-UART circuitry.

The combination of high processing performance, large Flash and PSRAM capacity, wireless connectivity, and UNO-compatible hardware makes the ESP32-S3 N16R8 suitable for applications ranging from IoT nodes and smart-home controllers to robotics, USB devices, wireless data logging, AI edge processing, and advanced Arduino-compatible prototypes.

Features

• ESP32-S3-WROOM-1-N16R8 based development board

• Dual-core Xtensa 32-bit LX7 processor

• CPU frequency up to 240 MHz

• 16 MB SPI Flash memory

• 8 MB SPI PSRAM

• 2.4 GHz Wi-Fi 802.11 b/g/n

• Bluetooth 5 LE and Bluetooth Mesh support

• UNO-compatible development-board form factor

• USB connectivity for programming and communication

• Supports UART, SPI, I²C, and I²S

• Hardware vector instructions for AI and DSP workloads

• Compatible with Arduino IDE, ESP-IDF, and PlatformIO

Specifications

*USB interface and connector configuration can vary between board manufacturers.
**The ESP32-S3 SoC supports up to 45 programmable GPIOs; the actual number exposed on a particular UNO board depends on its PCB design.

Applications

• IoT development

• Smart-home controllers

• Wireless sensor nodes

• Robotics and automation

• AI and TinyML projects

• Edge computing applications

• USB HID and USB devices

• Wireless data logging

• Bluetooth-enabled projects

• Arduino-compatible prototypes

• Embedded control systems

• Audio and signal-processing projects
