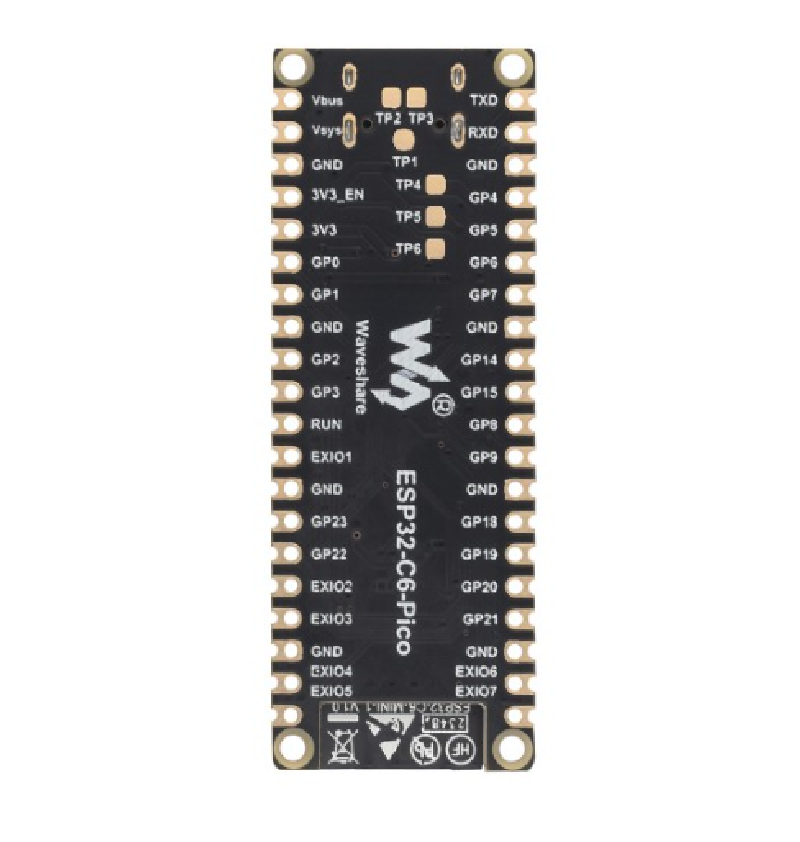

WaveShare ESP32-C6 Pico Mini development board

🌟 Key Features

✅ WiFi 6 (802.11ax) + Bluetooth 5.0 LE

• WiFi 6 – Higher speeds, lower latency, better multi-device performance

• Bluetooth 5.0 LE – Low-power wireless for IoT sensors & wearables

✅ High-Efficiency RISC-V Processor

• 160MHz 32-bit single-core RISC-V CPU – Optimized for IoT workloads

• 320KB SRAM + 8MB Flash (ESP32-C6-MINI-1 module) – Ample storage for firmware

✅ Rich Peripheral Support

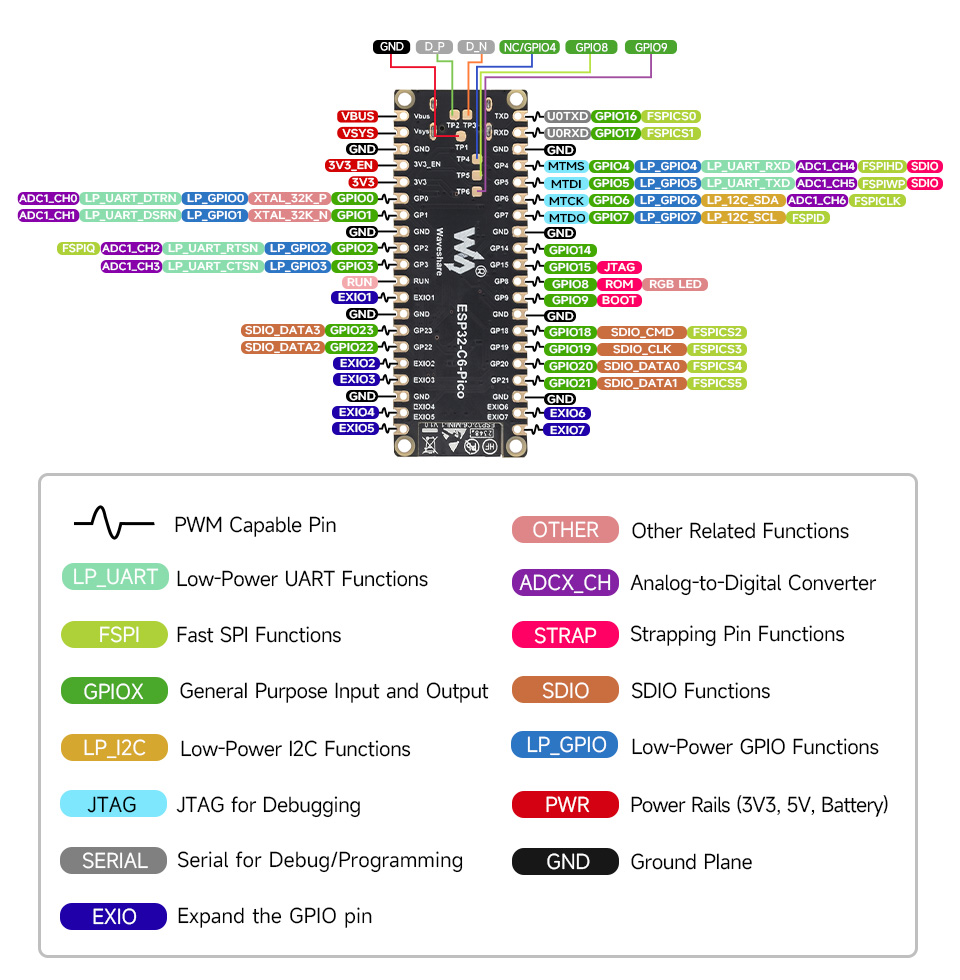

• 30+ GPIOs (UART, SPI, I2C, PWM, ADC, DAC, USB OTG)

• USB Type-C – For programming & power (5V)

• Built-in RGB LED – Debugging & status indication

✅ Ultra-Low Power & Security

• Deep sleep mode (µA current) – Ideal for battery-powered devices

• Secure Boot & Flash Encryption – Enterprise-grade security

✅ Developer-Friendly Ecosystem

• Arduino IDE, ESP-IDF, MicroPython, and Rust support

• Plug-and-play USB programming (no debugger needed)

📊 Technical Specifications

📦 Package Includes

• 1x ESP32-C6 Development Board (ESP32-C6-MINI-1 module)

• Optional headers (if selected)

💡 Why Choose ESP32-C6?

🔹 WiFi 6 support – Future-proof for high-density IoT networks 🔹 RISC-V efficiency – Better performance per watt than ARM Cortex-M 🔹 More GPIOs than ESP32-S3 – Greater expandability 🔹 Type-C convenience – Modern connectivity

🚀 Ideal Applications

✔ Next-gen smart home hubs ✔ Industrial wireless sensors ✔ AIoT edge computing ✔ High-efficiency gateways ✔ Prototyping next-gen wireless tech
