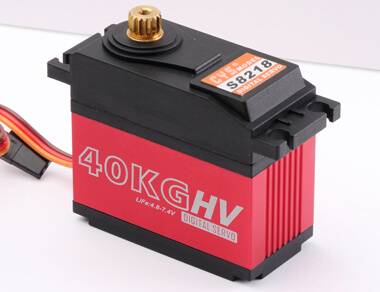

CYS-S8218 40Kg Digital Metal Steering Gear Servo Motor
Electra Store
SKU: MO-27078
891.00 EGP
In Stock
1
Categories: Generic
Description
| Type | Digital |
|---|---|
| Control System | ( )Pulse Width Control 1500usec Neutral |
| Operating Voltage | 6.0~7.4Volts |
| Operating Temperature Range | (-)10 to 50 degree C |
| Operating Speed (6.0V) | 0.20sec/60° at no load |
| Operating Speed (7.4V) | 0.18sec/60° at no load |
| Stall Torque (6.0V) | 38kg.cm |
| Stall Torque (7.4V) | 40kg.cm |
| Operating Angle | 45deg. one side pulse traveling 500 usec |
| Direction | Anticlockwise/Pulse Traveling 1000~2000usec |
| Current Drain (6.0V) | 20mA/idle and 180mA no load operating |
| Current Drain (7.4V) | 20mA/idle and 200mA no load operating |
| Stall Current | 7.5A/8.6A |
| Dead Band Width | 4usec |
| Motor Type | NdFeB motor |
| Bearing Type | Dual Ball Bearing |
| Horn gear spline | 17T |
| Gear Type | Metal |
| Connector Wire Length | 300mm ± 5mm |
| Weight | 164g ± 1 g |
| Size | 59.5*29.2*55.2mm |
| Wire info | Brown/Black = Negative |
| Red = Positive | |
| Orange/White = Signal |
