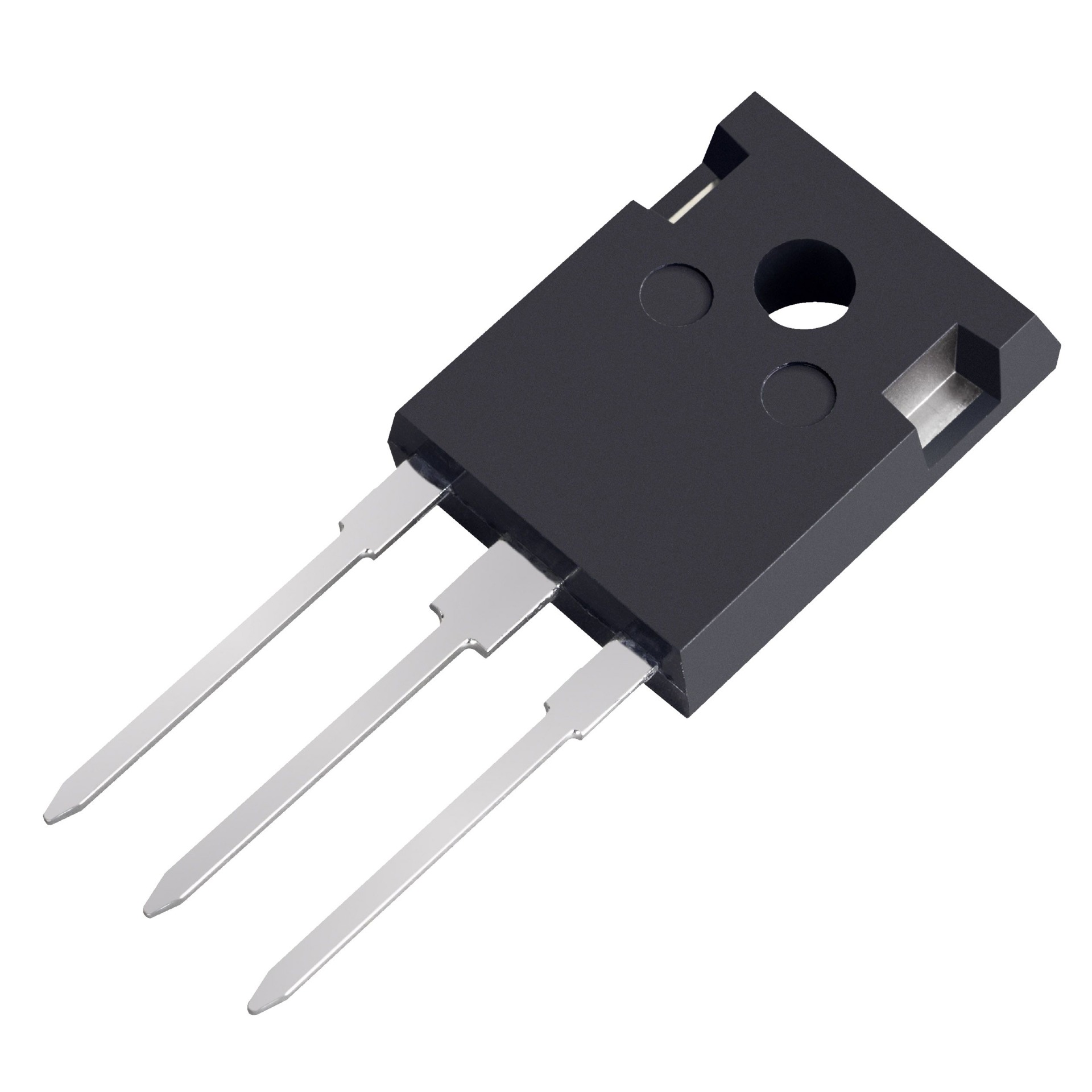

SGT60N60FD2 Field Stop IGBT Transistor 600V 60A TO-247

The SGT60N60FD2 Field Stop IGBT Transistor 600V 60A TO-247 is a high-performance power semiconductor designed for efficient switching and energy control in demanding electronic applications. Utilizing advanced Field Stop IGBT technology, this transistor delivers low conduction losses, fast switching speeds, and high reliability, making it ideal for modern power electronics systems.

With a voltage rating of 600V and a current capacity of up to 60A, the SGT60N60FD2 is well-suited for high-power applications such as motor drives, inverters, UPS systems, and industrial automation equipment. Its integrated fast diode enhances switching performance and reduces energy loss, improving overall system efficiency.

The device is housed in a robust TO-247 package, providing excellent thermal performance and efficient heat dissipation. This ensures stable operation even under high load conditions. The transistor is designed for easy mounting on heat sinks, making it convenient for engineers and technicians working on power control circuits.

Whether used in renewable energy systems, welding machines, or high-frequency switching applications, the SGT60N60FD2 IGBT offers reliable performance, durability, and efficiency. It is a trusted choice for professionals seeking a high-quality solution for power management and control.

Features:

• Field Stop IGBT technology for improved efficiency

• 600V voltage rating and 60A current capacity

• Integrated fast recovery diode

• Low saturation voltage (VCE(sat))

• Fast switching performance

• High reliability and rugged design

• Excellent thermal performance (TO-247 package)

• Suitable for high-frequency applications

Specifications:

• Model: SGT60N60FD2

• Type: IGBT Transistor with diode

• Collector-Emitter Voltage (Vce): 600V

• Continuous Collector Current (Ic): 60A

• Package: TO-247

• Technology: Field Stop IGBT

• Switching Speed: Fast

• Mounting Type: Through-hole

• Operating Temperature: Wide range (industrial grade)

Applications:

• Motor drives and speed control systems

• Inverters and UPS systems

• Solar power and renewable energy systems

• Welding machines

• Industrial automation equipment

• Power supplies and converters

• High-frequency switching circuits
