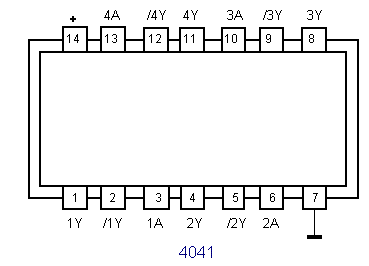

4041 DIP Quad True / Complement Buffer

4041 DIP Quad True Complement Buffer

The Quad True Complement Buffer is a high-performance 40 Series IC. It provides four independent buffer channels. Each channel outputs both true and complement signals. This makes it ideal for precision audio and logic circuits. Hobbyists and engineers alike trust this DIP package for reliable signal conditioning.

This buffer ensures clean signal transfer with minimal distortion. It operates across a wide voltage range. The true and complement outputs simplify differential signaling. You can use it to drive long cable runs or split signals. Electra Store guarantees authentic components for your projects.

The Quad True Complement Buffer works by taking one input signal. It then produces two outputs. One output is the true version. The other is the complement or inverted version. This dual output is very useful. It helps reduce noise in sensitive circuits. The buffer also isolates the input from the output. This prevents loading effects. Your signal stays strong and clear. The 40 Series design ensures stable performance. You can rely on it for consistent results. The DIP package fits standard breadboards. It also works well on custom PCBs. This makes prototyping fast and easy. The wide voltage range adds flexibility. You can use it in many different projects. The Quad True Complement Buffer is a versatile tool for any electronics workbench.

Key Features

• Four independent buffer channels with true and complement outputs
• Standard 16-pin DIP package for easy breadboarding and PCB integration
• Wide operating voltage range from 3V to 15V DC
• High input impedance and low output impedance for signal integrity
• Compatible with TTL and CMOS logic families
• RoHS compliant and lead-free for modern manufacturing

Use Cases

Use this buffer in audio preamps, signal splitters, and logic level translators. It works great for synthesizer modules, test equipment, and data acquisition systems. Hobbyists building DIY effects pedals or Arduino shields will find it essential. Engineers designing industrial control systems also benefit. The Quad True Complement Buffer handles both analog and digital signals. It is perfect for projects needing clean signal distribution. Teachers and students use it in lab experiments. It demonstrates buffer and inverter concepts clearly. Anyone working with 40 Series logic will appreciate its reliability. The buffer simplifies complex wiring tasks. It saves time and reduces errors. Whether you are a beginner or an expert, this component fits your needs.

Order the Quad True Complement Buffer today from Electra Store. Upgrade your circuit with this trusted 40 Series component. Fast shipping and quality guaranteed. Buy now to complete your project! The Quad True Complement Buffer is in stock and ready to ship. Do not wait to enhance your designs. Click to order and get your Quad True Complement Buffer delivered quickly. Your satisfaction is our priority. Start building with confidence now.
