40104 DIP 4-Bit Bidirectional Parallel-In / Parallel-Out Pipo Shift Register (Tristate)

40104 DIP 4-Bit Bidirectional Parallel-In / Parallel-Out PIPO Shift Register (Tristate)

The 4-bit bidirectional shift register is a versatile IC for digital circuits. It stores and shifts 4 bits of data. You can load data in parallel. You can also read data in parallel. This chip uses tristate outputs. It works well with microcontrollers and logic systems. Hobbyists and engineers love it.

This 40104 IC shifts data left or right. It has a clear function. The tristate outputs let you share a data bus. You can cascade multiple chips for more bits. It operates from 3V to 15V. Use it in counters, buffers, or data storage.

The 4-Bit Bidirectional Shift Register handles data in a unique way. It can shift bits left or right on command. This makes it perfect for rotating data. You can also load all four bits at once. This saves time in fast systems. The tristate feature is very useful. It lets multiple devices share one wire. The chip can disconnect its outputs. This prevents data collisions. The 40104 is a true PIPO device. That means parallel-in and parallel-out. It works with many logic families. You can use it with 5V or 12V systems. The DIP package fits standard breadboards. This makes testing easy. The chip is robust and reliable. It handles noise well. You can use it in industrial projects. It also works in educational kits. The 4-Bit Bidirectional Shift Register is a core building block. It helps you learn digital design. It also helps you build advanced circuits.

Key Features

• 4-bit parallel-in and parallel-out operation with bidirectional shifting
• Tristate outputs for bus-oriented systems and shared data lines
• Wide supply voltage range from 3V to 15V DC

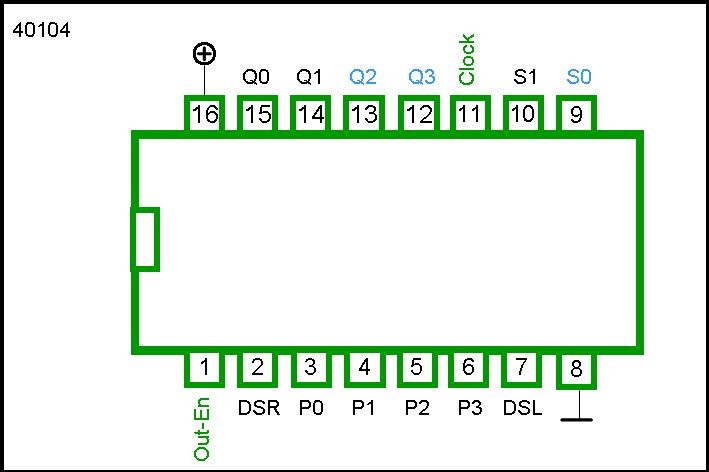

• Standard DIP-16 package for breadboards and PCBs
• Asynchronous master reset clears all flip-flops instantly
• Compatible with TTL and CMOS logic families

Use Cases

Use this 4-Bit Bidirectional Shift Register in data buffers. It works in LED displays. It works in serial-to-parallel converters. Students use it in labs. Engineers use it in prototypes. It is great for learning shift register basics. Hobbyists use it for home projects. It works in robotics for data storage. It also works in communication systems. The 4-Bit Bidirectional Shift Register is ideal for bus sharing. You can use it in counters and timers. It is perfect for data rotation tasks. Teachers use it in classrooms. It helps explain digital logic concepts. The chip is also good for testing. You can build simple shift registers. You can also build complex systems. This IC fits many applications. It is a must-have for any electronics kit.

Order your 40104 4-Bit Bidirectional Shift Register today. Electra Store ships fast. Add this IC to your cart now. Build better circuits with reliable parts. You will love the quality. The price is great. Do not wait. Get your 4-Bit Bidirectional Shift Register now. It will improve your projects. It will save you time. Click add to cart today.
