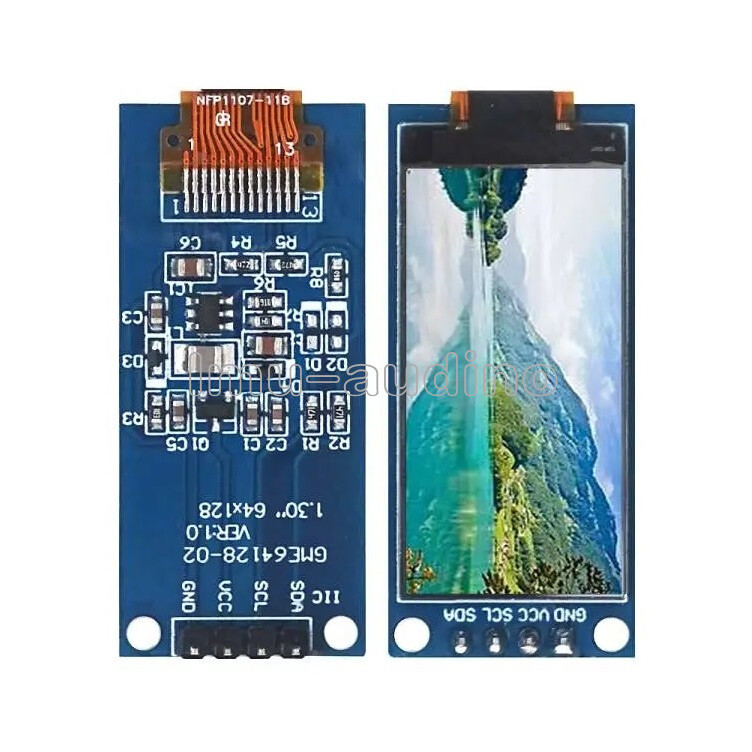

1.3 Inch OLED 64×128 LCD Module OLED Vertical Screen Module for Arduino
In Stock
Categories: Light Source and Display, LCD
Description
1.3 Inch OLED 64×128 LCD Module OLED Vertical Screen Module for Arduino
📊 Key Specifications
| Parameter | Details |
|---|---|
| Display Size | 1.3 inches (diagonal) |
| Resolution | 64 × 128 (vertical layout) |
| Controller | SSD1306 |
| Interface | I2C (default) or SPI (jumper select) |
| Color | Monochrome (white/blue/yellow) |
| Viewing Angle | 180° |
| Contrast Ratio | 10,000:1 |
| Power Supply | 3.3V-5V compatible |
| Current Draw | ~20mA (active), <0.1mA (sleep) |
| Dimensions | 35.5 × 32.5 × 1.2mm |
🔌 Pinout & Connections
Default I2C Configuration (4-pin)
| OLED Pin | Arduino | ESP32 | Function |
|---|---|---|---|
| VCC | 3.3V/5V | 3.3V | Power |
| GND | GND | GND | Ground |
| SCL | A5 (Uno) | GPIO 22 | I2C Clock |
| SDA | A4 (Uno) | GPIO 21 | I2C Data |
SPI Configuration (7-pin, solder jumpers)
| OLED Pin | Arduino | Function |
|---|---|---|
| CS | D10 | Chip Select |
| DC | D9 | Data/Command |
| RES | D8 | Reset |
🛠️ Hardware Setup
I2C Mode (Recommended for Arduino)
-
Connect VCC/GND to power
-
Link SCL/SDA to I2C pins
-
No resistors needed (module has built-in pull-ups)
SPI Mode (For Faster Refresh)
-
Solder bridge BS0/BS1 jumpers per manual
-
Connect all SPI pins (MOSI/MISO not used)
🚀 Project Ideas
✔ Miniature Weather Station (ESP32 + BME280) ✔ Pocket Game Console (Arduino + joystick) ✔ Bike Computer Display (Speed/distance metrics) ✔ Smartwatch Prototype (Low-power time display)
