Description

UNI‑T UTi256G Professional Enhanced Thermal Camera — Product Description (SEO‑Optimized)

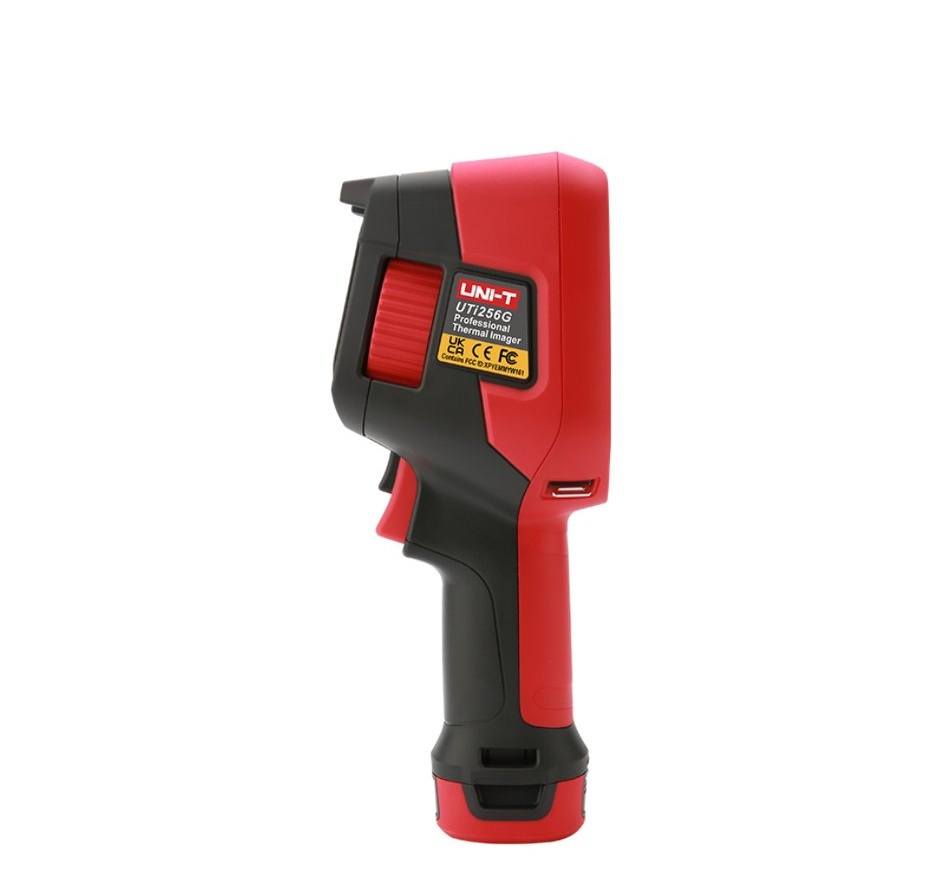

The UNI‑T UTi256G Professional Enhanced Thermal Camera is a rugged, high‑performance infrared imaging solution designed for industrial professionals, maintenance technicians, electrical engineers, HVAC inspectors, building diagnosticians, and energy auditors who need precise thermal diagnostics on demand. Built with advanced thermal imaging technology and a suite of powerful analytic tools, the UTi256G delivers accurate temperature measurement, intuitive operation, and reliable field performance — making it an essential tool for troubleshooting, preventive maintenance, and equipment evaluation in demanding work environments. UNI-T Thermal Imaging

At the heart of the UTi256G is a 256×192 pixel uncooled infrared detector with exceptional thermal sensitivity (NETD ≤40mK), enabling detailed visualization of heat patterns, hot spots, and temperature gradients with high clarity. This high resolution, paired with a wide temperature measurement range of –20 °C to 550 °C, empowers users to analyze both low‑temperature structural issues and high‑temperature industrial systems with confidence. UNI-T Thermal Imaging

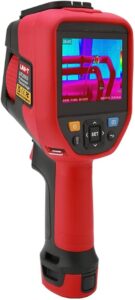

Featuring a large 3.5‑inch IPS touchscreen display with 640×480 resolution, the UTi256G provides vivid, easy‑to‑read thermal imaging results right on‑device — enhancing usability and speeding up inspections on the job site. The touchscreen interface simplifies navigation and makes evaluating thermal data quicker and more efficient than ever. UNI-T Thermal Imaging

Designed to adapt to a broad range of applications, the UNI‑T UTi256G supports multiple imaging modes — including Thermal, Visual Image, Fusion, and Picture‑in‑Picture (PIP) — allowing professionals to view infrared and visible imagery independently or layered together for rich context. With 7 color palettes such as White Hot, Black Hot, Red Hot, Ironbow, HC Rainbow, Rainbow, and Lava, users can customize how thermal data is presented to best match the inspection scenario. UNI-T Thermal Imaging

The UTi256G is engineered for real‑world inspection needs, offering manual focus, digital zoom (2×/4×), and a 5 MP visible light camera for capturing crisp visual images alongside thermal imagery. It also includes on‑screen analysis tools, such as multi‑point, line, rectangle, and circle measurement functions, allowing precise quantification of temperature data in targeted regions. UNI-T Thermal Imaging

Connectivity and data management are core strengths of the UTi256G. The camera supports Wi‑Fi and Bluetooth connectivity via a mobile app, enabling wireless photo download and live streaming. PC analysis software expands the inspection workflow by allowing in‑depth review, reporting, and real‑time image projection when connected to a computer. The built‑in 8 GB internal storage, expandable with a micro SD card (up to 32 GB), ensures you have plenty of space for images and data. UNI-T Thermal Imaging

To support extended field operation, the UTi256G comes with a 5200 mAh rechargeable lithium‑ion battery pack with USB‑C charging — providing approximately 5 hours of continuous runtime. This makes it dependable even during long inspection periods without frequent recharging. UNI-T Thermal Imaging

Built for durability, the UTi256G holds an IP54 protection rating and has been tested for 2 m drop resistance, ensuring it withstands rough handling, dust, and moisture common on industrial job sites. Its ergonomic design and intuitive user experience help professionals stay productive and focused on diagnostics rather than device operation. UNI-T Thermal Imaging

Whether you’re inspecting electrical infrastructure, monitoring HVAC performance, analyzing mechanical equipment, evaluating solar panels, or conducting building envelope assessments, the UNI‑T UTi256G Professional Enhanced Thermal Camera delivers the performance, precision, and rugged dependability that professionals rely on for critical decision‑making and preventive maintenance. UNI-T Thermal Imaging

For official manufacturer details and technical support, see the UNI‑T UTi256G information page on the UNI‑T website: https://thermal.uni-trend.com/product/uti256g/. UNI-T Thermal Imaging

---

Key Features & Specifications

📸 High‑Resolution Infrared Imaging

• 256×192 pixel infrared detector with thermal sensitivity ≤40mK — captures detailed thermal variations for precise diagnostics. UNI-T Thermal Imaging

🔥 Wide Temperature Range

• Accurate temperature measurement from –20 °C to 550 °C, ideal for a broad spectrum of industrial and commercial applications. UNI-T Thermal Imaging

🖥️ Large IPS Touchscreen Display

• 3.5‑inch IPS touchscreen (640×480) enhances visibility and touch control for quick, on‑site image review. UNI-T Thermal Imaging

🧰 Multiple Imaging Modes

• Thermal, Visual, Fusion, and Picture‑in‑Picture modes provide inspection flexibility. UNI-T Thermal Imaging

🎨 Color Palette Selection

• 7 advanced palettes (White Hot, Black Hot, Red Hot, Ironbow, HC Rainbow, Rainbow, Lava) for customized thermal visualization. UNI-T Thermal Imaging

🎯 Analytical Tools

• On‑screen analyzer with multiple measurement shapes supports detailed thermal evaluation. UNI-T Thermal Imaging

📶 Connectivity & Software

• Wi‑Fi, Bluetooth, mobile app support, and PC analysis software — streamline sharing, analysis, and reporting. UNI-T Thermal Imaging

📦 Battery & Storage

• 5200 mAh swappable Li‑ion battery (~5 h runtime), USB‑C charging, 8 GB internal memory + external micro SD support. UNI-T Thermal Imaging

💪 Rugged & Durable

• IP54 protection rating and 2 m drop resistance fortify the camera for field use. UNI-T Thermal Imaging

🌐 Applications

• Electrical inspection

• HVAC diagnostics

• Mechanical systems analysis

• Building envelope assessment

• Solar panel fault detection

• Industrial preventive maintenance UNI-T Thermal Imaging
