UT692D Handheld Optical Power Meter

Original price was: 1,300.00 EGP.Current price is: 1,200.00 EGP.

The UT692D is a rugged and versatile handheld optical power meter designed for accurate measurement of absolute optical power and relative loss in fiber optic cables. Ideal for professionals in telecommunications, network maintenance, and fiber optic installations, this device ensures reliable performance in various field conditions.

-+
SKU: UT692D Category:

Description

UT692D Handheld Optical Power Meter



Key Features:

  • Wide Measurement Range: Measures optical power from -70 dBm to +10 dBm, accommodating a broad spectrum of fiber optic testing scenarios.

  • Broad Wavelength Coverage: Supports wavelengths from 800 nm to 1700 nm, including common industry standards such as 850 nm, 980 nm, 1300 nm, 1310 nm, 1490 nm, 1550 nm, 1625 nm, and 1650 nm.

  • Universal Connector Compatibility: Equipped with an FC connector as standard, with optional adapters available for SC and ST connectors, ensuring versatility across different fiber types.

  • High Accuracy: Utilizes an InGaAs detector with an uncertainty of ±5%, providing precise measurements essential for quality assurance and troubleshooting.

  • Enhanced Display: Features a 2.4-inch LCD screen with backlight and flashlight capabilities, facilitating easy operation in low-light environments.

  • User-Friendly Functions: Includes wavelength storage/recall, user calibration, and auto power off (after 10 minutes) to enhance usability and energy efficiency.

  • Durability: Built to withstand 2-meter drops and rated IP65 for dust and water resistance, making it suitable for demanding field conditions.

  • Extended Battery Life: Operates on three 1.5V AA alkaline batteries, with a battery life exceeding 60 hours, and low battery indication at approximately 3.3V.

📊 Specifications:



Feature Specification
Measurement Range -70 dBm to +10 dBm
Wavelength Range 800 nm to 1700 nm
Connector FC (SC/ST adapters optional)
Detector Type InGaAs
Uncertainty ±5%
Calibrated Wavelengths 850, 980, 1300, 1310, 1490, 1550, 1625, 1650 nm
Display Resolution Linear: 0.1%; Logarithmic: 0.01 dBm
Auto Power Off After 10 minutes of inactivity
Power Supply 3 x 1.5V AA alkaline batteries
Battery Life ≥60 hours
Operating Temperature 0°C to 40°C
Storage Temperature -10°C to 50°C

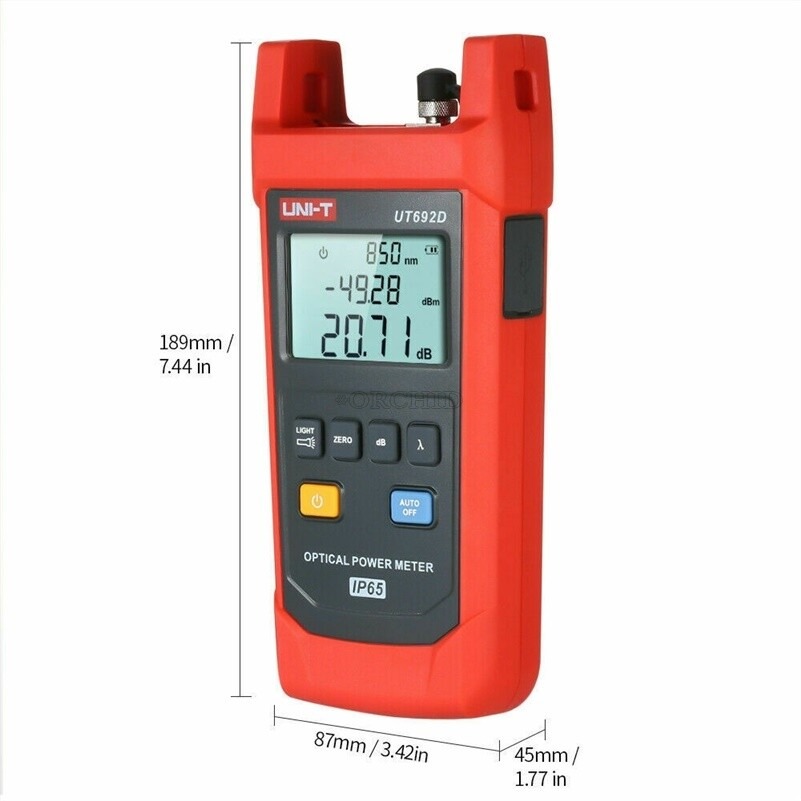

Dimensions 189 x 87 x 45 mm
Weight 286 g
Certifications CE, UKCA, IP65, RoHS

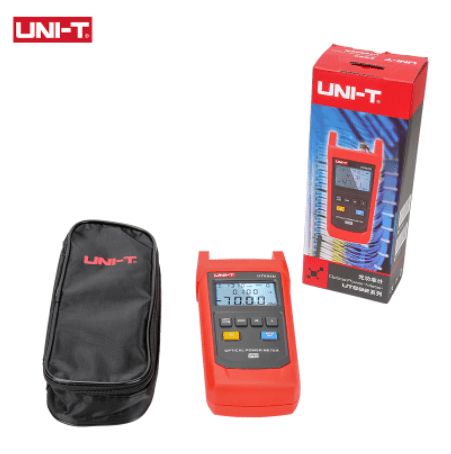

📦 Included Accessories:

  • 1 x UT692D Optical Power Meter

  • 3 x 1.5V AA Alkaline Batteries

  • 1 x English User Manual

  • 1 x Protective Pouch

  • 1 x Calibration Certificate

🛠️ Ideal Applications:

  • Fiber Optic Network Installation: Ensuring optimal signal strength during setup.

  • Telecommunications Maintenance: Diagnosing and resolving signal issues.

  • Data Center Operations: Monitoring and maintaining fiber optic links.

  • Field Testing: Conducting on-site assessments in various environments.

💡 Why Choose the UT692D?

The UNI-T UT692D stands out for its combination of accuracy, durability, and user-friendly features. Whether you’re installing new fiber optic systems or maintaining existing ones, this meter provides the reliability and performance you need to ensure high-quality connections.
