Description

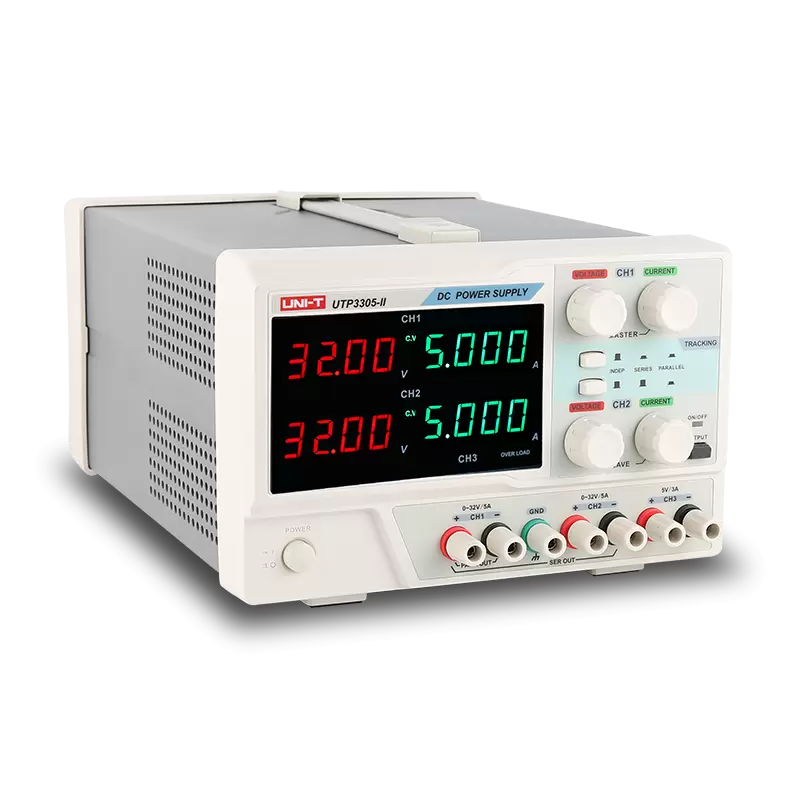

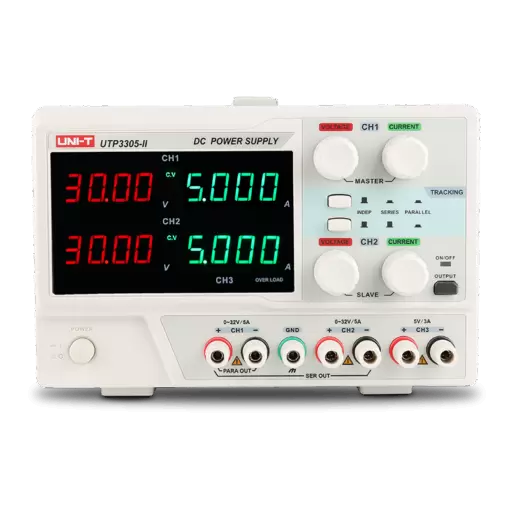

UNI-T UTP3305ii DC Power Supply

🔧 Key Features

• Three Output Channels:

  • CH1 & CH2 (Adjustable): 0–32 V / 0–5 A each

  • CH3 (Fixed): 5 V / 3 A

• Output Power: Total output up to 335 W

• High Resolution & Accuracy:

  • Voltage resolution: 10 mV

  • Current resolution: 1 mA

  • Voltage accuracy: <0.01% + 3 mV

  • Current accuracy: ≤0.2% + 3 mA

• Low Ripple and Noise:

  • Voltage ripple: ≤1 mVrms

  • Current ripple: ≤3 mArms

• Operating Modes:

  • Independent mode

  • Series mode (up to 64 V)

  • Parallel mode (up to 10 A)

• Display: High-precision 4-digit display for voltage and current readings

• Built-in Protections: Over-voltage (OVP), over-current (OCP), over-temperature (OTP), and reverse polarity

• Cooling: Smart temperature-controlled fan for silent operation

📐 Specifications

• Dimensions: 319 × 146 × 226 mm

• Weight: Approx. 10.5 kg

• Input Voltage: 100–240 V AC

🛠️ Applications

• Electronics testing and design

• Educational and training labs

• R&D departments

• Equipment repair and maintenance
