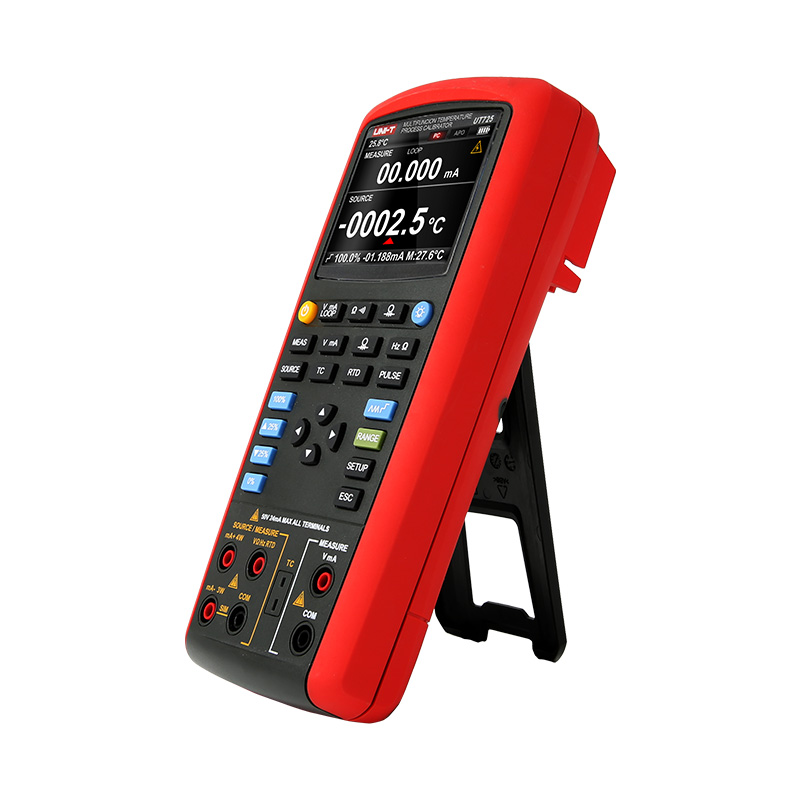

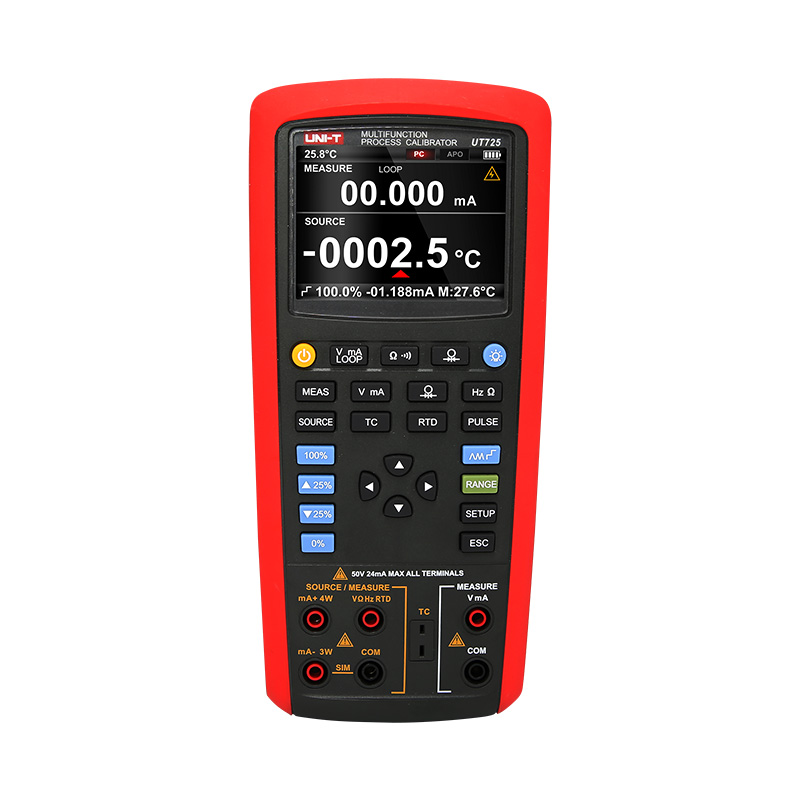

UNI-T UT725 Multifunction Process Calibrator

Original price was: 73,000.00 EGP.Current price is: 72,000.00 EGP.

UT725 is a professional-grade multifunction process calibrator, specifically designed for the calibration and simulation of electrical and process control equipment in the field and lab. With capabilities to measure and source voltage, current, resistance, frequency, and temperature (RTD and thermocouples), the UT725 is an essential tool for instrumentation engineers, process technicians, and industrial automation professionals.

SKU: UT725 Category: UNI-T

Description
Reviews (0)

Description

🌟 Key Features:

✅ Voltage Measurement and Sourcing: Up to ±30V DC
✅ Current Measurement and Sourcing: 0–24mA
✅ Loop Current Testing (4–20mA) – for process control verification
✅ Resistance Measurement and Simulation: Up to 3kΩ
✅ Frequency Measurement and Sourcing: Up to 10kHz
✅ RTD Types Supported: Pt100, Pt1000, Cu50, etc.
✅ Thermocouple Types Supported: K, J, T, E, R, S, B, N
✅ Simultaneous Source and Measure Mode – Test input/output devices in one setup
✅ 0.02% High Accuracy – Industrial-grade precision
✅ Large Backlit LCD Display – Easy to read in any lighting
✅ USB Interface – For PC communication and logging
✅ 24V Loop Power Supply Mode

🧰 Functions & Applications:

🔧 Source/Measure DC Voltage and Current
🔧 Simulate or Read RTD/Thermocouple Signals
🔧 Test Loop-powered Devices with 24V Output
🔧 Calibrate Transmitters, Controllers, and PLCs
🔧 Verify Input/Output of Process Instruments
🔧 Generate Frequency Signals for Flow Meters & Speed Sensors

🛡️ Built for Industrial Use:

📊 0.02% Accuracy for critical process calibration
⚡ Built-in Protection against overloads and miswiring
🔋 Rechargeable Lithium Battery – Long operation time in the field
🧱 Rugged Casing for harsh industrial environments
🌐 USB Communication – Connect to PC for configuration and report generation

📦 Package Includes:

1 × UNI-T UT725 Process Calibrator
1 × Test Lead Set
1 × Thermocouple Probe (Type K)
1 × USB Interface Cable
1 × PC Software CD / Link
1 × User Manual
1 × Protective Carrying Case

📊 Technical Specifications (Overview):

Function	Range	Accuracy
Voltage (source/measure)	±30V DC	±(0.02% + 2 digits)
Current (source/measure)	0 – 24mA	±(0.02% + 2 digits)
Resistance (source/measure)	Up to 3kΩ	±(0.05% + 2 digits)
Frequency (source/measure)	Up to 10kHz	±(0.1% + 2 digits)
RTD Simulation	Pt100, Pt1000	±(0.2°C typical)
Thermocouple Simulation	K, J, T, E…	±(1°C typical)
24V Loop Power Supply	—	Built-in

✅ Ideal For:

Process Calibration & Testing
Instrumentation & Control Technicians
PLC and DCS System Maintenance
Industrial Automation Troubleshooting
Temperature, Pressure, and Flow System Calibration

🔍 Why Choose the UNI-T UT725?

With its precision, versatility, and industrial-grade durability, the UT725 is your go-to calibrator for on-site and lab-based testing. Whether you’re validating transmitters, simulating RTDs, or diagnosing process faults, the UT725 empowers professionals with confidence and accuracy.
