Description

Key Features:

1. High Voltage Testing Capacity:

   • 6 selectable test voltages: 250V/500V/1KV/2.5KV/5KV/10KV

   • Wide measurement range: 0.01MΩ to 10TΩ

   • ±3% basic accuracy for reliable results

2. Advanced Diagnostic Functions:

   • Polarization Index (PI) and Dielectric Absorption Ratio (DAR) measurements

   • Automatic timed tests (1-10 minutes)

   • Comparative testing with programmable alarm thresholds

3. Enhanced Safety Features:

   • CAT IV 600V safety rating

   • Automatic discharge circuit

   • Live circuit detection and warning

   • High-voltage interlock protection

4. User-Friendly Operation:

   • Large backlit LCD with analog bargraph display

   • Ergonomic design with carrying handle

   • Built-in memory stores up to 99 test results

   • USB interface for data transfer

Technical Specifications:

• Measurement Ranges:

  • Insulation Resistance: 0.01MΩ to 10TΩ

  • Voltage Measurement: 0-1000V AC/DC

• Accuracy:

  • Insulation: ±3% (0.01MΩ-10GΩ), ±5% (10GΩ-10TΩ)

  • Voltage: ±2% ±5 digits

• Test Voltage Accuracy: ±5% (no load)

• Power Supply:

  • Rechargeable Li-ion battery (8 hours continuous use)

  • AC adapter input (for lab/stationary use)

• Environmental:

  • Operating Temperature: -10°C to 50°C

  • Storage Temperature: -20°C to 60°C

  • Humidity: <85% RH (non-condensing)

Applications:

• Power generation and distribution systems

• Industrial motor and generator testing

• High-voltage cable insulation testing

• Telecommunications equipment maintenance

• Preventive maintenance programs

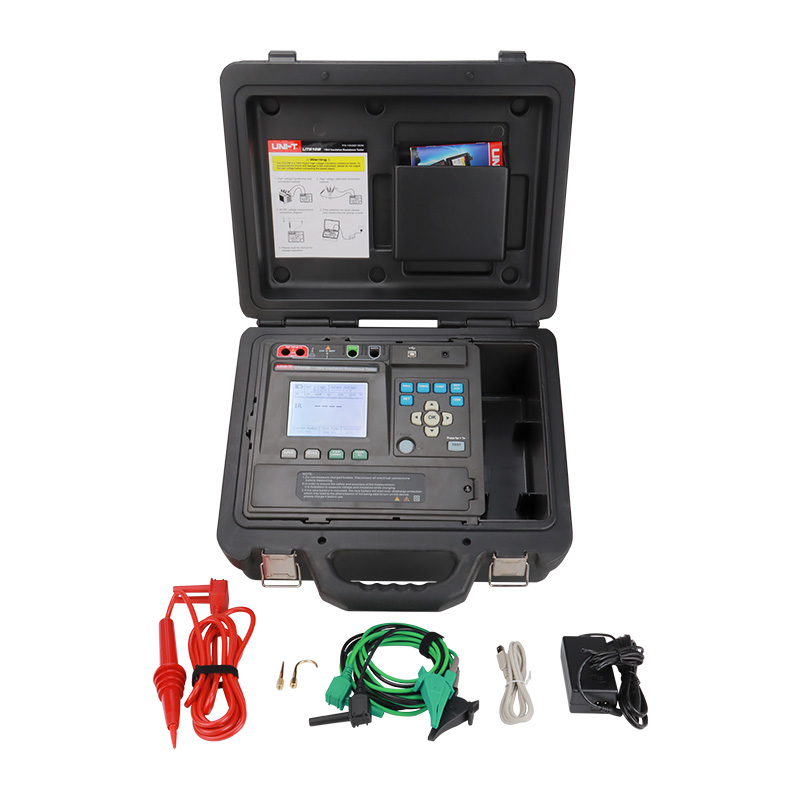

Package Contents:

• UT515B main unit

• Test leads (red/black)

• Alligator clips

• AC power adapter

• Li-ion battery pack

• USB cable

• Software CD

• User manual

• Carrying case

Safety Compliance:

• IEC 61010-1 (CAT IV 600V)

• IEC 61326-1 (EMC)

• CE certified

Why Choose UT515B?

• Professional-grade insulation testing up to 10KV

• Comprehensive diagnostic capabilities including PI/DAR

• Robust safety features for high-voltage environments

• Portable design for field use

• Data logging and analysis functions

Ordering Information:
Model: UT515B
Warranty: 2 years manufacturer warranty

Note: Always follow proper safety procedures when working with high-voltage equipment. Use appropriate PPE and follow local electrical safety regulations.
