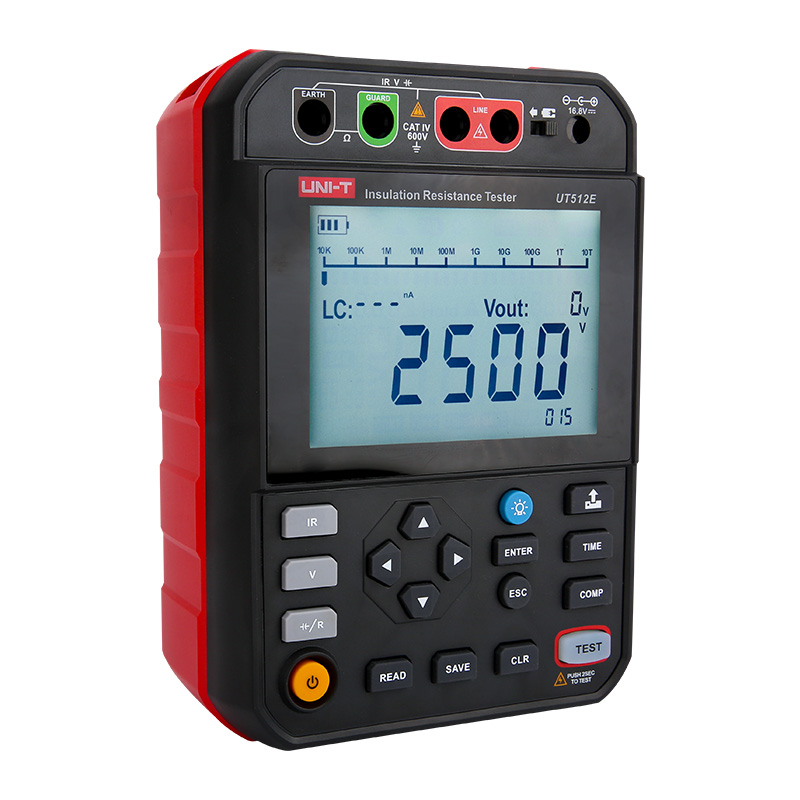

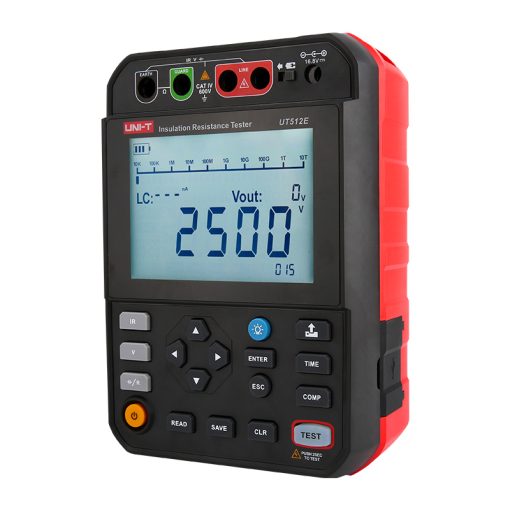

UNI-T UT512E 2.5kV Insulation Resistance Testers
Original price was: 14,500.00 EGP.14,400.00 EGPCurrent price is: 14,400.00 EGP.
UNI-T UT512E is a professional-grade digital insulation resistance tester designed for high-voltage insulation testing of electrical equipment, cables, transformers, switchgear, and more. With test voltages up to 2500V, a wide resistance range up to 100GΩ, and advanced data functions, it’s built for reliable performance in demanding industrial and field environments.
Description
🌟 Key Features:
-
✅ Test Voltages: 500V / 1000V / 2500V
-
✅ Insulation Resistance Measurement Range: 0.1MΩ to 100GΩ
-
✅ Polarization Index (PI) & Dielectric Absorption Ratio (DAR) Measurements
-
✅ Auto Discharge Function for user safety after testing
-
✅ Real-Time Test Timer and programmable test duration
-
✅ Data Hold, Storage & Recall Functions (up to 999 records)
-
✅ USB Interface for PC connectivity and data download
-
✅ Large Backlit LCD Display with analog bar graph
-
✅ Rechargeable Lithium Battery for extended field use
-
✅ CAT IV 600V Safety Rating – Meets IEC61010-1 standards
📊 Technical Specifications:
| Function | Range | Accuracy |
|---|---|---|
| Insulation Resistance | 0.1MΩ – 100GΩ | ±(5% + 3) typical |
| Test Voltages | 500V / 1000V / 2500V | Adjustable |
| Short Circuit Current | ≤2mA | — |
| PI / DAR Measurement | Yes | Automatic calculation |
| Timer Settings | 1s – 15 min | Configurable |
| Capacitance Measurement | Yes | Up to 99.99μF |
| Voltage Detection | AC/DC 30V – 600V | — |
🧰 Applications:
-
🏭 High-Voltage Electrical Equipment Testing
-
🔌 Cable Insulation Verification
-
⚡ Motor, Transformer & Generator Maintenance
-
🧰 Panel Builders & Power Distribution Systems
-
🛠️ Predictive Maintenance in Industrial Plants
📦 What’s in the Box:
-
1 × UNI-T UT512E Insulation Resistance Tester
-
1 × Set of High-Voltage Test Leads & Alligator Clips
-
1 × USB Data Cable
-
1 × Rechargeable Lithium Battery (Built-in)
-
1 × Carrying Case
-
1 × User Manual
🔒 Safety & Durability:
-
🛡️ CAT IV 600V / CAT III 1000V Safety Rated
-
🌐 IEC61010-1 Compliance
-
🔋 Auto Discharge & Voltage Warning Indicators
-
💼 Sturdy Protective Casing for Field Use
✅ Why Choose the UNI-T UT512E?
With its wide insulation resistance range, high test voltage, and advanced safety and logging features, the UT512E is the perfect tool for electrical engineers, utility technicians, and maintenance professionals who demand precision, portability, and protection in one rugged device.
