Description

🔑 Key Features:

✔ Pluggable Design – Male header + female socket for quick mating/disconnection
✔ 3.81mm Pitch – Space-saving yet prevents short circuits
✔ Screw Clamp Mechanism – Secures 24–16 AWG wires (0.2–1.5mm²)
✔ High-Current Rating – 10A @ 250V AC/DC (tin-plated brass contacts)
✔ PA66 Housing (UL94 V-0) – Flame-retardant & heat-resistant (-40°C to +105°C)
✔ Straight PCB Pins – Vertical through-hole mounting for stable integration
✔ Wide Compatibility – Works with standard 3.81mm terminal blocks

---

📌 Applications:

• Industrial PCBs – PLCs, motor controllers, DIN rail systems

• Power Distribution – Multi-wire AC/DC connections

• LED Lighting – RGB/W control wiring

• Prototyping – Breadboard-friendly reusable links

• Home Appliances – Secure internal wiring

---

📦 Package Includes:

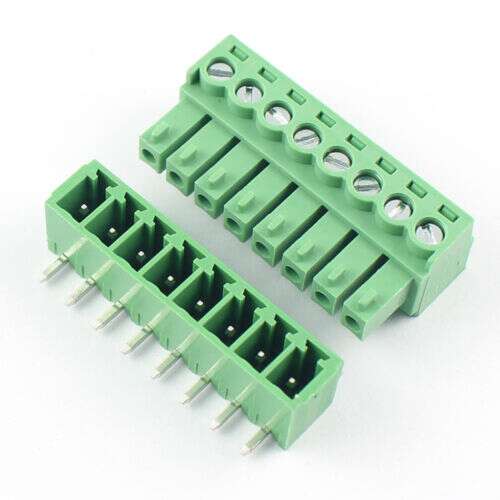

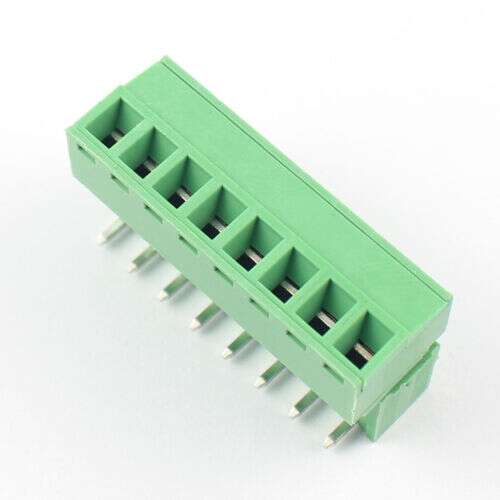

• 1 × 8-Pin Male Terminal Block (Straight Pin, 3.81mm Pitch)

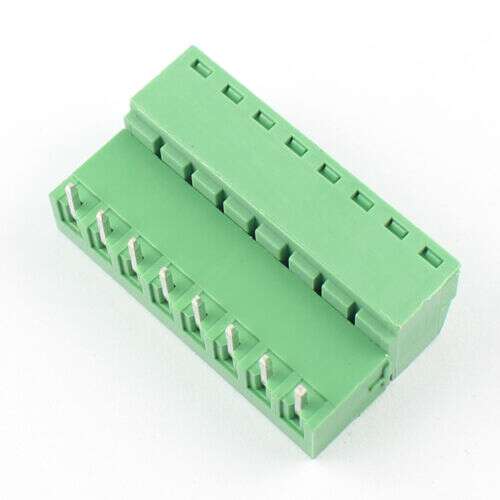

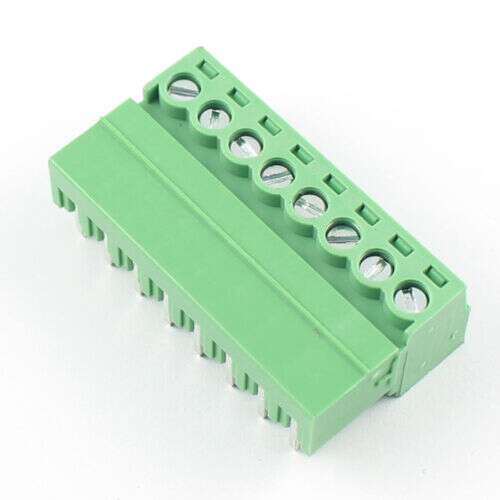

• 1 × Matching Female Socket

• (Optional) Bulk packs available

---

⚙ Technical Specifications:

---

🔧 Why Choose This Terminal Block?

✅ High-density 8-pin design – Ideal for multi-signal/power connections in tight spaces
✅ Tool-free maintenance – Swap wires without soldering
✅ Compact 3.81mm pitch – Fits high-density PCB layouts

Note: For high-vibration use, apply thread locker on screws.

---

SEO Keywords: *8-pin terminal block, 3.81mm pluggable connector, 10A screw terminal, PCB multi-wire terminal*

Need CAD models or custom configurations? Ask now! ⚡
