TDS Sensor Module Water Quality Detection for Arduino
750.00 EGP
Monitor water purity with the TDS Sensor Meter V1.0 — accurate, Arduino-compatible module for measuring total dissolved solids in any water source.
Description
TDS Sensor Meter V1.0 Board Module – Accurate Water Quality Measurement for Arduino & ESP Projects
The TDS Sensor Meter V1.0 Board Module is an essential tool for measuring Total Dissolved Solids (TDS) in water, making it a perfect solution for water quality monitoring in both hobby and professional applications. Whether you’re building a smart IoT water purifier, testing the purity of drinking water, or monitoring hydroponics and aquaponics systems, this sensor delivers precise and reliable readings that help you understand the true quality of your water.
What is TDS and Why It Matters
TDS (Total Dissolved Solids) represents the total amount of dissolved substances in water, such as minerals, salts, and metals. A high TDS level usually indicates impure water, while a lower TDS value suggests cleaner, purer water. Monitoring TDS is crucial for ensuring safe drinking water, maintaining optimal plant growth in hydroponics, and improving the performance of filtration systems.
The TDS Sensor Meter V1.0 converts the electrical conductivity (EC) of water into a readable TDS value, allowing you to easily evaluate the purity of your water with your Arduino, ESP32, or Raspberry Pi.
Key Features
🔹 High Accuracy and Stability:
Built with a high-quality analog TDS probe and signal conditioning circuit to ensure accurate and stable measurements across different water samples.
🔹 Wide Measurement Range:
Capable of detecting TDS values from 0 to 1000 ppm, making it suitable for a wide range of applications—from tap water and well water to aquariums and laboratory testing.
🔹 Analog Output Compatible:
The sensor outputs an analog voltage that can be directly read by Arduino analog pins (A0–A5). It’s easy to calibrate and integrate into any microcontroller-based system.
🔹 Easy Integration with Arduino & ESP Boards:
Fully compatible with Arduino UNO, Mega, ESP8266, ESP32, and other development boards. The module comes with a 3-pin connector for quick connection and setup.
🔹 Corrosion-Resistant Probe:
The included stainless-steel TDS probe ensures long-lasting durability, even with prolonged exposure to water, ensuring consistent readings over time.
🔹 Temperature Compensation Support:
By adding a temperature sensor (like DS18B20), you can achieve temperature-compensated readings, improving accuracy in varying environmental conditions.
Technical Specifications
-
Module Name: TDS Sensor Meter V1.0
-
Operating Voltage: 3.3V – 5.5V
-
Output Signal: Analog voltage (0 – 2.3V)
-
TDS Measurement Range: 0 – 1000 ppm
-
Signal Type: Analog
-
Compatible Boards: Arduino, ESP8266, ESP32, Raspberry Pi, STM32
-
Probe Material: Stainless steel (corrosion-resistant)
-
Cable Length: ~60cm
-
Interface Type: 3-pin connector (VCC, GND, AOUT)
Applications
💧 Water Quality Testing:
Use it to measure the purity of drinking water, tap water, or filtered water to ensure it meets safe standards.
🌱 Hydroponics & Aquaponics:
Monitor the nutrient levels in your plant’s water system. Maintaining the right TDS ensures plants receive the correct mineral balance for healthy growth.
🐟 Aquarium Monitoring:
Measure dissolved solids to keep fish and aquatic life in a balanced environment.
🏭 Industrial & Laboratory Use:
Useful for small-scale industrial water testing, RO (reverse osmosis) system calibration, and educational lab experiments.
🌊 IoT Water Monitoring Projects:
Ideal for smart systems that automatically track water quality and send data to online dashboards using WiFi-enabled boards like ESP8266 or ESP32.
How It Works
The TDS Sensor Meter V1.0 works by measuring the electrical conductivity (EC) of water and converting it into a readable TDS value. When connected to an Arduino or microcontroller, the module’s analog output voltage changes according to the water’s conductivity level. Using a simple code, you can easily convert this analog reading into parts per million (ppm) and display it on an LCD, OLED screen, or web dashboard.

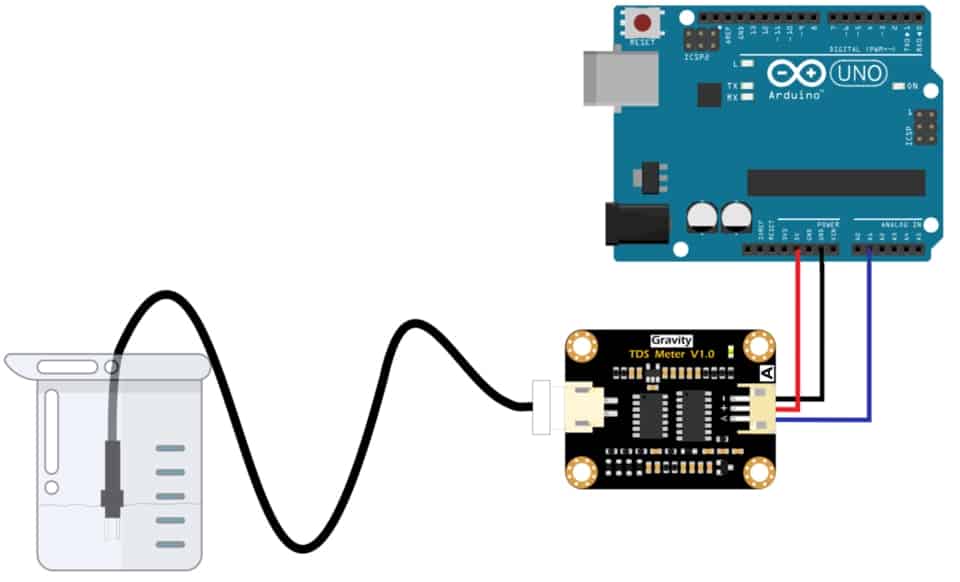

Example Connection
-
VCC → 5V (or 3.3V)
-
GND → Ground
-
AOUT → Analog input (e.g., A0 on Arduino)
Optional: Connect a DS18B20 sensor for temperature compensation to enhance reading accuracy.
Why Choose the TDS Sensor Meter V1.0
✔️ Easy to use and integrate – perfect for both beginners and professionals.
✔️ Accurate readings for a wide range of applications.
✔️ Durable probe design for long-term use.
✔️ Compatible with multiple platforms including Arduino, ESP, and Raspberry Pi.
✔️ Ideal for IoT projects focused on real-time water quality monitoring.
Conclusion
The TDS Sensor Meter V1.0 Board Module is a reliable and cost-effective solution for anyone interested in monitoring water quality. Its compatibility with popular microcontroller platforms, accuracy, and simplicity make it an excellent choice for DIY electronics enthusiasts, IoT developers, and environmental engineers alike.
From checking your home’s water filter performance to maintaining perfect conditions in a hydroponic system, this sensor helps you measure what matters — the purity of your water.
Analog-TDS-SensorV1.0-Schematic

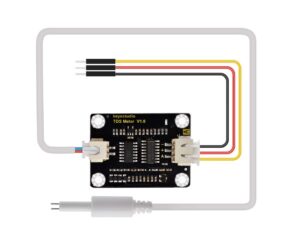

Package Included:
- 1 X TDS circuit board
- 1 X Waterproof TDS probe
- 1 X Analog sensor line
