Description

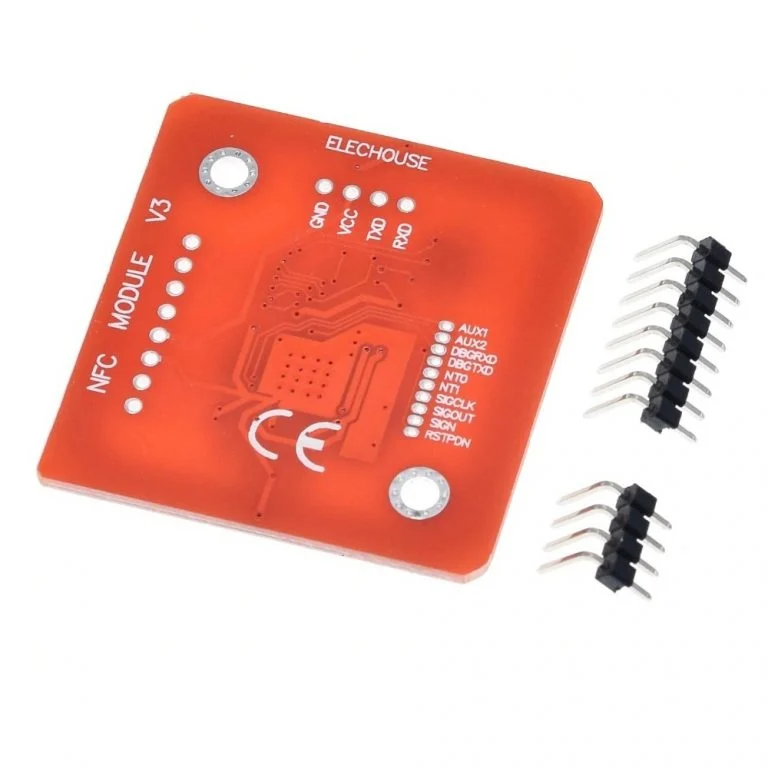

PN532 NFC RFID Read / Write Module 13.56 Mhz

• The PN532 is a highly integrated transmission module for contactless communication at 13.56 MHz including microcontroller functionality based on an 80C51 core with 40 Kbytes of ROM and 1 Kbytes of RAM.
• The PN532 combines a modulation and demodulation concept completely integrated for different kinds of contactless communication methods and protocols at 13.56 MHz with an easy-to-use firmware for the different supported modes and the required host controller interfaces.
• It works as RFID reader/writer,1443-A card or a virtual card and also supports NFC with Android phone. It is also compatible with Arduino.

Quick Overview:

• Easy to change mode: with a small SMD toggle Switch, it becomes very easy to change among IIC, SPI and HSU modes
• Longer distance: the reading distance becomes 5~7cm, compared with 4~6 cm of last version
• Built in PCB Antenna, with 5cm~7cm communication distance
• On-board level shifter, Standard 5V TTL for I2C and UART, 3.3V TTL SPI
• Work as RFID reader/writer
• Work as 1443-A card or a virtual card

Features:

• Support II2, SPI and HSU (High-Speed UART)
• I2C / UART: 3.3V ~ 24V TTL
• SPI: 3.3V TTL with 100-ohm resistors in series
• Communication distance: 5cm~7cm
• On-board level shifter, Standard 5V TTL for I2C and UART, 3.3V TTL SPI
• Work in NFC Mode or RFID reader/writer Mode
• RFID reader/writer supports:
• Plug and play, compatible
• Built-in PCB Antenna, with 4cm~6cm communication distance
• On-board level shifter, Standard 5V TTL for I2C and UART, 3.3V TTL SPI
• Work as an RFID reader/writer
• Work as a 1443-A card or a virtual card
• Exchange data with other NFC devices such as a smartphone

Useful Links:

Quick Start Guide



Package Included:

• 1 x 1PCS*PN532 NFC RFID Module
• 1 x 2.54mm spacing 4pin Cable
• 1 x Mifare One S50 White Card
• 1 x Mifare One S50 Key Card
• 1 x 12P bended male pins
