Description

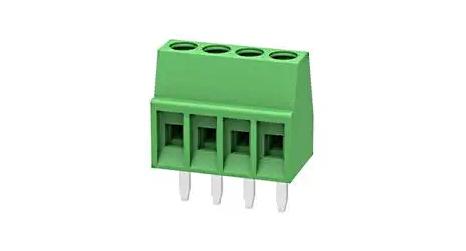

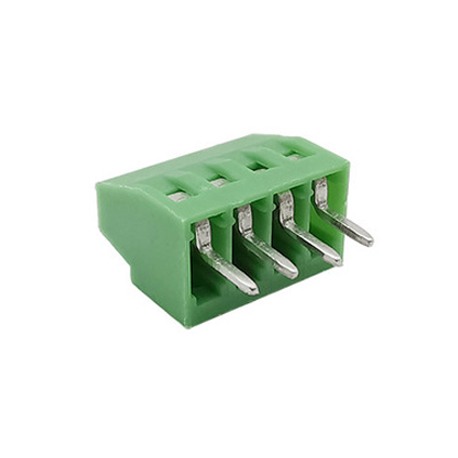

PCB Terminal Block 4 pin

• Pitch 5 mm
• Screws: M2.5 steel Zinc plated
• Clamp: Brass,Ni plated
• Pin header: Brass,Tin plated

Electrical

• Rated voltage: 300V  250V
• Rated current: 10A    18A
• Contact resistance: 20m
• Insulation resistance: 5000M/DC1000V
• Withstanding voltage: AC 2000V/1 Min
• Wire range: 22-14AWG 2.5mm²

 Mechanical

• Temp.Range: -40~ 105
• MAX Soldering:  250,for 5 Sec.
• Torque: 0.4Nm(3.6Lb.in)
• Strip length: 6-7mm
