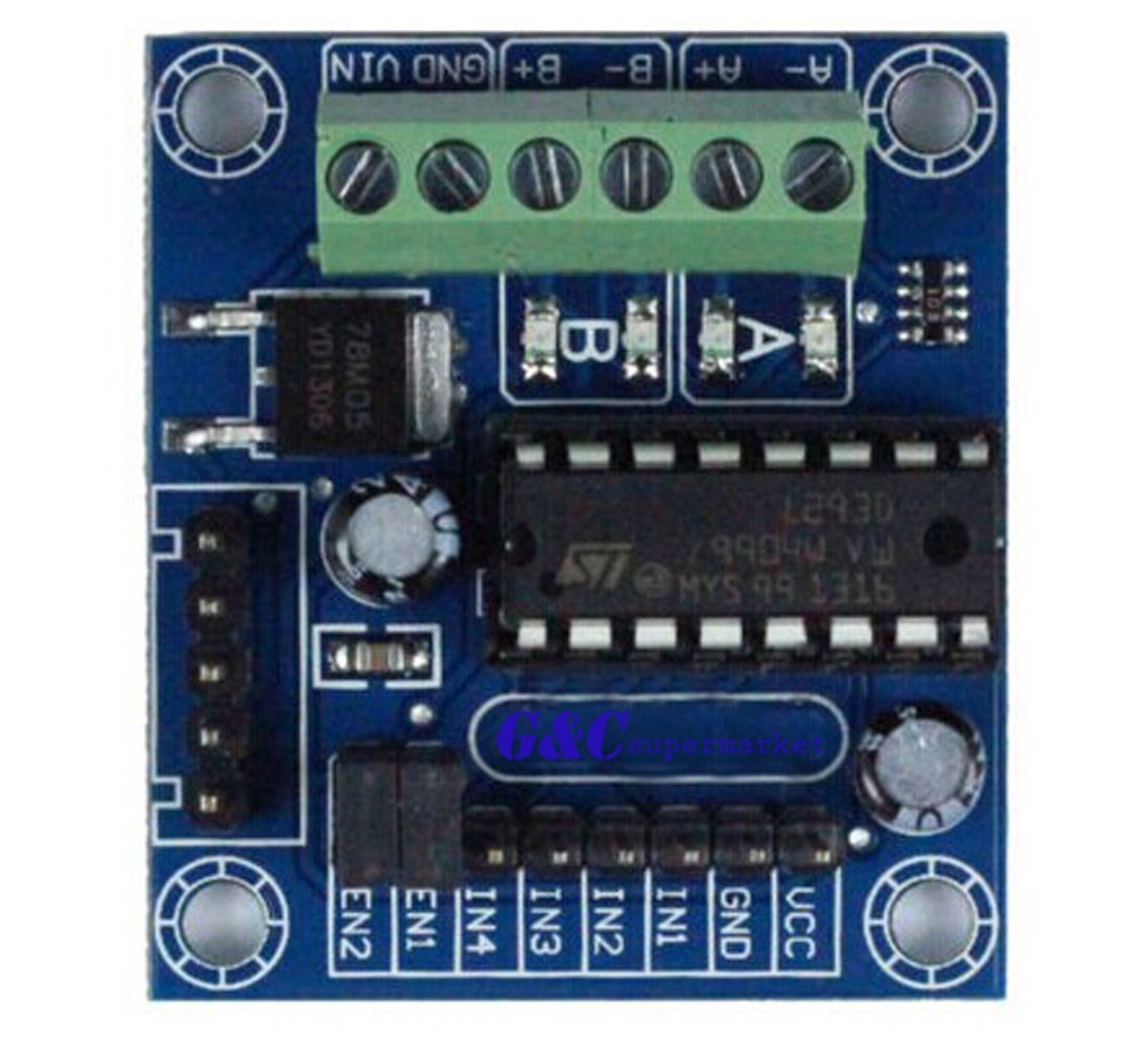

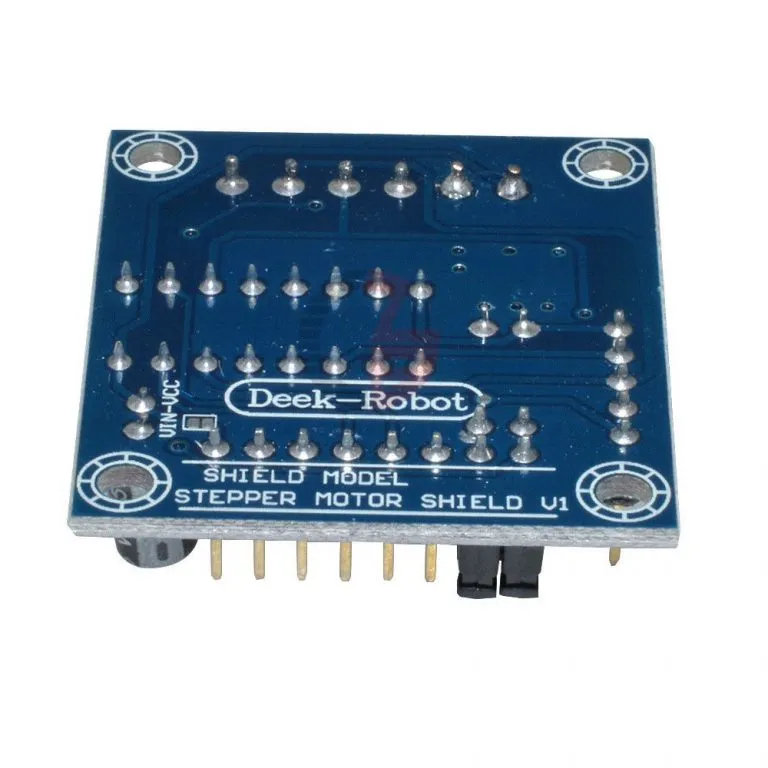

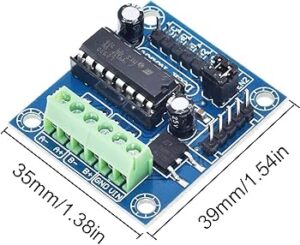

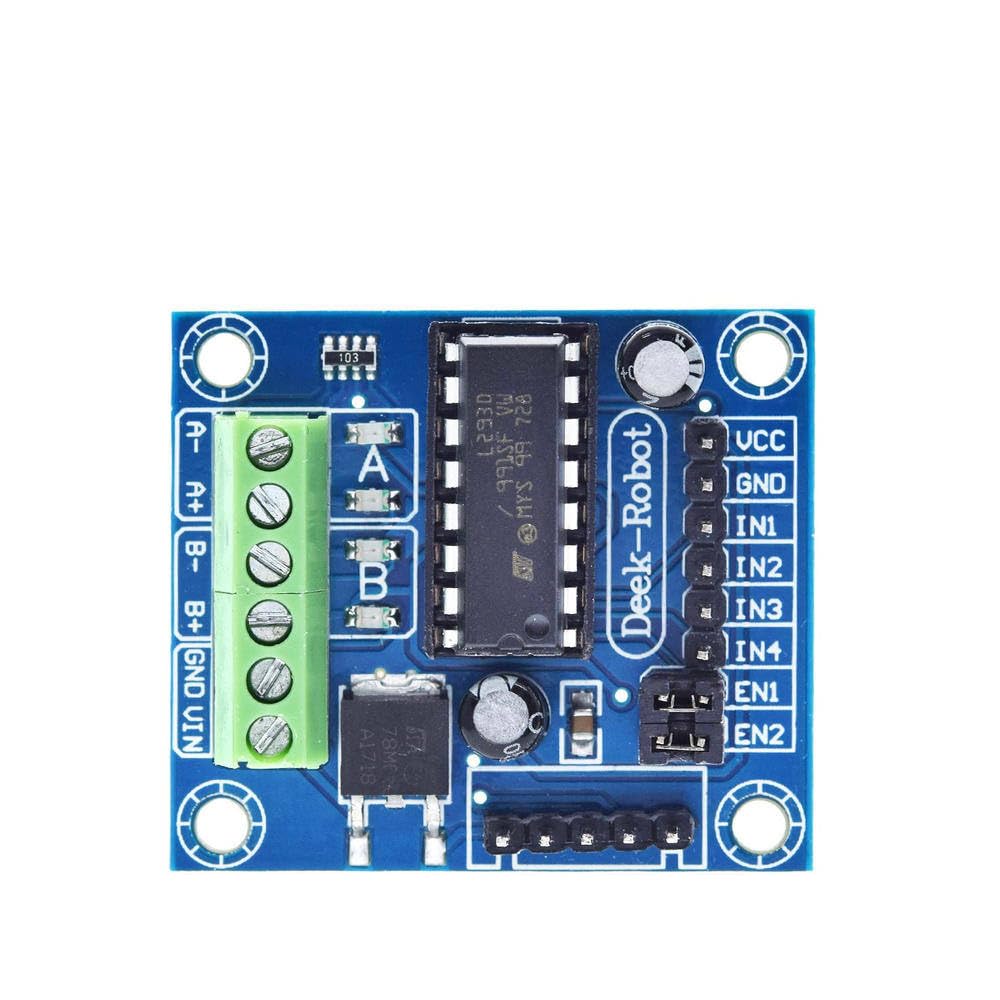

Mini Motor Drive Shield Expansion Board L293D Module

The Mini Motor Drive Shield Expansion Board L293D Module is a compact and powerful motor driver shield designed for use with Arduino and other microcontroller platforms. Equipped with the L293D dual H-bridge motor driver IC, this module allows you to control the speed and direction of two DC motors or one stepper motor easily and efficiently.

Perfect for DIY robotics, automation systems, RC vehicles, and mechatronics projects, the L293D Motor Driver Shield offers reliable performance, flexibility, and ease of integration for both beginners and advanced makers.

Key Features

🔌 Dual H-Bridge Motor Driver (L293D)

At the heart of this expansion board is the L293D motor driver IC, a robust dual-channel H-bridge capable of driving two DC motors independently or one stepper motor. It supports both bidirectional control and speed regulation via PWM signals, giving you precise movement control for your projects.

Each channel can handle up to 600mA continuous current (1.2A peak) at voltages from 4.5V to 25V, making it ideal for small to medium DC motors.

⚙️ Full Arduino Compatibility

This module is fully compatible with Arduino UNO, Mega, Nano, and other similar boards. It connects directly to the Arduino headers, simplifying wiring and setup. The shield’s plug-and-play design makes it beginner-friendly and time-saving for prototyping.

🧠 Easy Motor Control via Code

Using the Arduino IDE and basic motor control libraries, users can easily program speed, direction, and braking functions. You can even combine it with sensor modules or wireless controllers to build autonomous or remote-controlled robots.

🔋 Separate Power Supply Support

The Mini L293D Motor Shield features independent power input for the motor supply (Vs) and the logic circuit (Vss). This allows you to use external power sources for motors while keeping your control board safely powered at 5V. The built-in voltage regulator and protection circuitry ensure safe operation.

⚡ Overcurrent and Thermal Protection

The L293D IC includes built-in diodes for back EMF protection and thermal shutdown to prevent damage from overheating or excessive current. This extends the lifespan of both your motors and your driver board.

🪶 Compact and Durable Design

With its miniature form factor and high-quality PCB construction, the board is designed to fit into small enclosures or compact robots. The durable components ensure long-term performance even in continuous operation environments.

Specifications

Applications

The Mini Motor Drive Shield Expansion Board L293D Module is widely used in:

• Robotics projects – control DC motors for wheels or actuators

• Smart car kits – build and control two-wheel or four-wheel robots

• Automation systems – control conveyor belts or mechanical arms

• RC toys and mechatronics – manage speed and movement precisely

• DIY projects – integrate motion control with sensors or wireless modules

Its compact design and straightforward integration make it a top choice for students, hobbyists, and developers working on motion control systems.

Benefits

• ✅ Dual-channel motor control: Drive two DC motors or one stepper motor

• ✅ PWM speed control: Adjust motor speed smoothly and accurately

• ✅ Compact design: Fits easily on small robotic chassis or Arduino setups

• ✅ Easy integration: Directly plugs into Arduino headers

• ✅ Safe operation: Built-in protection against overheating and back EMF

• ✅ Budget-friendly: Affordable yet highly capable motor control solution

Why Choose the L293D Motor Driver Shield?

The L293D Motor Driver is one of the most trusted and widely used motor control ICs in robotics and automation. Combined with this mini expansion board, it offers a reliable, efficient, and easy-to-use interface for controlling motors directly through Arduino.

Its versatile features, such as PWM speed control, separate power supply options, and full compatibility with open-source libraries, make it an essential tool for students, engineers, and makers. Whether you’re building a line-following robot, DIY RC car, or mechanical arm, this motor driver shield provides the functionality and control precision you need.

The L293D IC, at the heart of this module, is a dual H-bridge motor driver developed by Texas Instruments.
Learn more about the L293D motor driver specifications on the official Texas Instruments website.

Conclusion

The Mini Motor Drive Shield Expansion Board L293D Module is a powerful yet compact motor control solution perfect for Arduino-based projects. With its dual H-bridge design, PWM support, and built-in safety protections, it offers precise and efficient motor control for DIY robotics, automation, and mechatronics applications.

Compact, affordable, and reliable—the L293D Motor Shield empowers your projects with smooth, accurate, and safe motor operation. It’s the perfect choice for anyone looking to bring motion and automation to their electronic creations.
