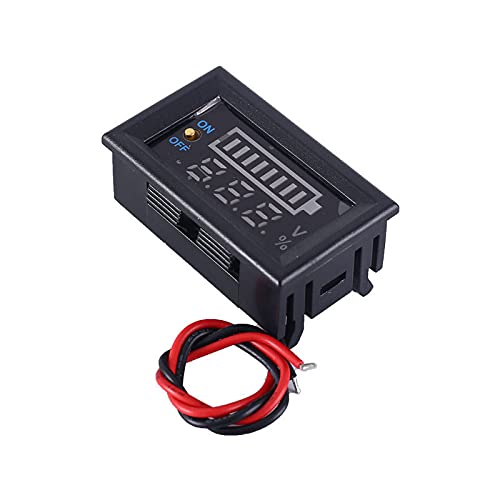

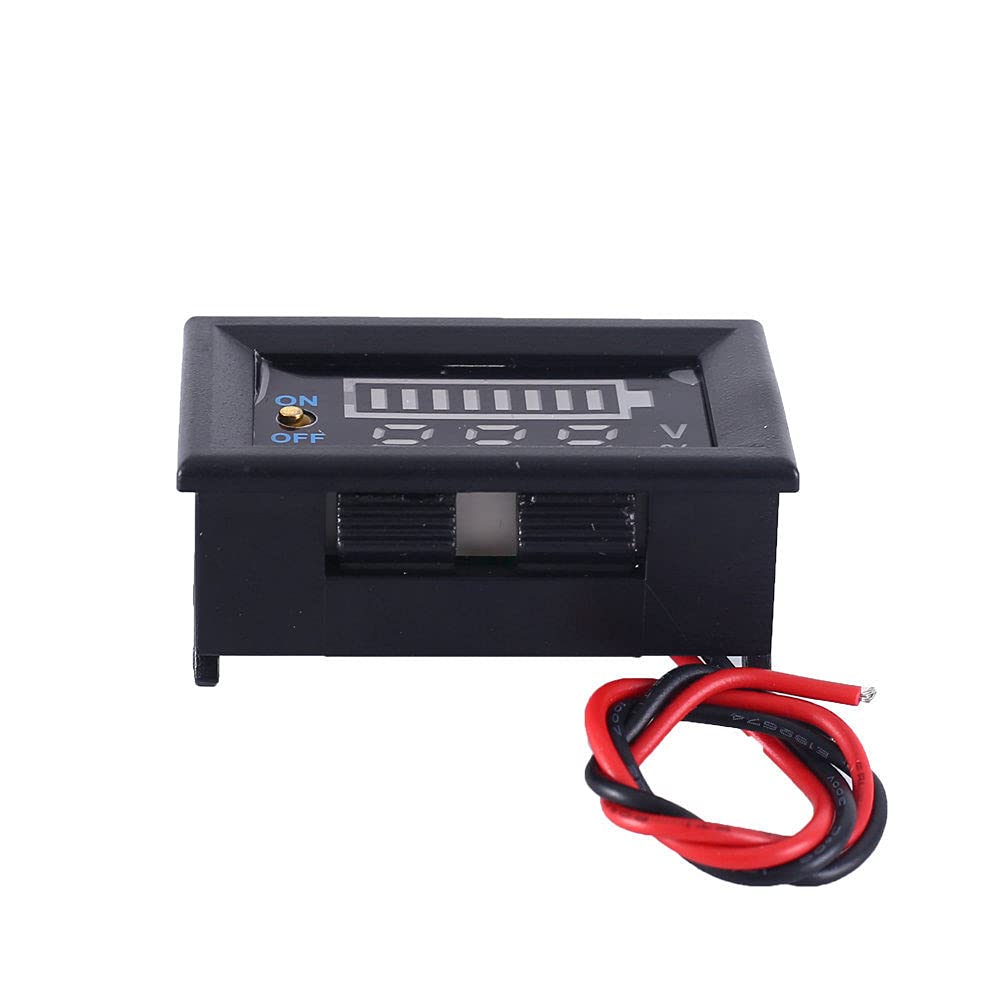

Lithium Battery Capacity Meter Tester – LED Display Voltmeter
250.00 EGP
The Lithium Battery Capacity Meter Tester is a compact, versatile, and easy-to-use device designed for monitoring the voltage and capacity level of lithium batteries. Featuring a bright LED display and accurate voltage measurement, it provides a clear indication of battery status in real time, making it ideal for DIY projects, battery packs, e-bikes, solar systems, and portable power solutions.
This tester is available in two universal versions: within 30V or 7–100V, and it supports multiple battery types. Its 8-segment display resolution offers a quick and precise overview of battery health, ensuring you always know your power status.
Description
Key Features:
🔋 Universal Compatibility – Available in 0–30V or 7–100V versions for different battery packs.
💡 LED Display Options – Choose between red light or blue light display.
📊 8-Level Battery Resolution – Clearly shows battery percentage at 10%, 25%, 40%, 50%, 60%, 75%, 90%, 100%.

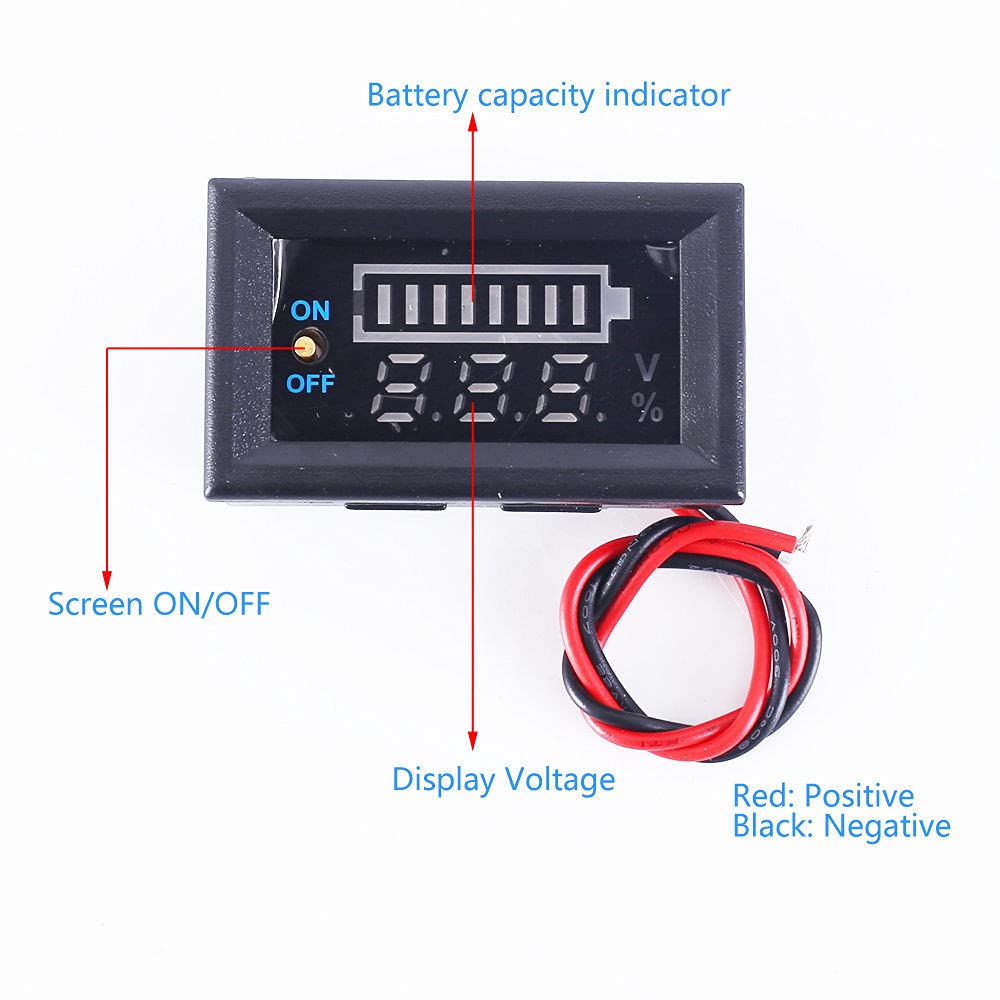

✅ Easy Operation:
Click switch → turn display on/off.

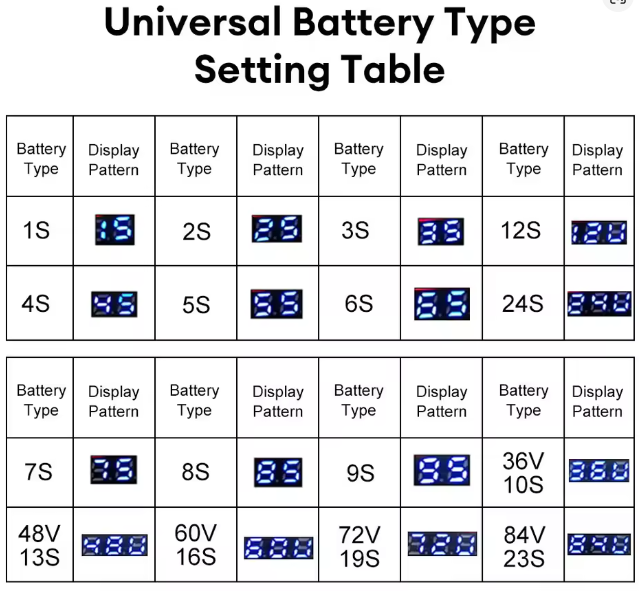

Double click → switch between battery types.
Press & hold (2s) → show current battery type.
🔧 Compact & Easy to Install – Perfect for integration into enclosures, panels, and battery systems.
📏 Mini Size – Space-saving design, simple panel cut-out installation.
Technical Specifications:
Specification Options: Universal 0–30V / Universal 7–100V
Display Colors: Red or Blue LED (optional)
Battery Resolution: 8 levels (10% – 100%)
Voltage Accuracy: ±3%
Working Temperature: -10°C ~ +65°C
Working Humidity: 10% – 80% (non-condensing)
Opening Size: 45 × 26 × 18 mm

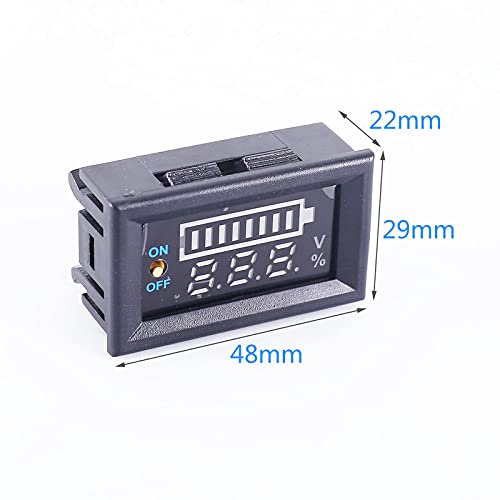

Product Size: 48 × 29 × 21 mm
Applications:
🔋 Lithium Battery Packs (DIY & Commercial)
🚲 Electric Bicycles & Scooters
☀️ Solar Power Systems
⚡ Portable Energy Storage Solutions
🛠 DIY Electronics Projects & Battery Monitoring
The Lithium Battery Capacity Meter Tester with LED Display is the perfect solution for anyone needing a clear, compact, and reliable battery monitoring tool.
