Description

4 Pin Photoresistor LDR Light Detection Resistance Sensor Module – Simple & Reliable Light Sensing for Arduino

The 4 Pin Photo-resistor LDR Light Detection Resistance Sensor Module is a versatile and beginner-friendly sensor designed to detect ambient light levels with ease. Utilizing a Light Dependent Resistor (LDR), this module provides both analog and digital outputs, making it suitable for a wide range of projects including Arduino, ESP32, Raspberry Pi, and other microcontroller applications.

Whether you are building automatic lighting systems, smart home devices, or robotics projects, this sensor module allows your project to respond intelligently to changes in light intensity. Compact, lightweight, and easy to use, it is ideal for both hobbyists and professionals.

How the LDR Sensor Module Works

The photoresistor (LDR) changes its resistance based on the intensity of light. In darkness, the resistance is high, and when exposed to bright light, the resistance decreases significantly. The 4 Pin Photo-resistor LDR Light Detection Resistance Sensor Module integrates additional components to make interfacing with microcontrollers simple.

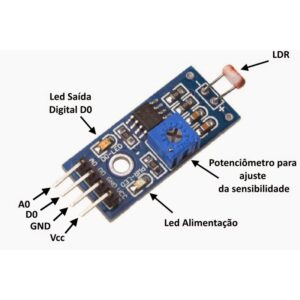

It features:

• Analog Output (AO): Provides a voltage corresponding to light intensity for precise measurements.

• Digital Output (DO): Uses an onboard potentiometer to set a light threshold, giving HIGH or LOW signals for automation purposes.

This combination allows the module to be used in both precise light-sensing applications and simple on/off control systems, offering flexibility for various projects.

Key Features

• • Dual Output: Supports analog and digital signals for versatile use.

  • Adjustable Sensitivity: Onboard potentiometer lets you set the digital output threshold.

  • LED Indicator: Shows digital output status in real-time.

  • Easy to Connect: 4-pin interface (VCC, GND, AO, DO) for microcontrollers.

  • Compact & Lightweight: Easy to mount in small or portable projects.

  • Wide Compatibility: Works with Arduino, ESP32, Raspberry Pi, and other boards.

Technical Specifications

• Module Type: 4 Pin Photo-resistor LDR Light Detection Resistance Sensor Module

• Operating Voltage: 3.3V – 5V

• Output: Analog (AO) and Digital (DO)

• Light Sensor: LDR (Photoresistor)

• Adjustment: Potentiometer for threshold control

• Pins: VCC, GND, AO, DO

• Indicator: Digital output LED

• Dimensions: Approx. 32mm x 14mm x 8mm

Benefits of Using the LDR Light Detection Module

• Simple Wiring: Connects quickly to Arduino or Raspberry Pi with minimal effort.

• Flexible Use: Provides both analog readings and digital threshold triggers.

• Beginner-Friendly: Ideal for learning electronics and programming microcontrollers.

• Versatile Applications: Suitable for automation, robotics, and DIY projects.

• Affordable & Reliable: Low-cost, durable sensor for indoor and hobby projects.

Applications

The 4 Pin Photo-resistor LDR Light Detection Resistance Sensor Module is widely used in:

• Automatic Lighting: Turn lights on/off based on ambient light.

• Smart Home Systems: Detect day/night conditions for home automation.

• Robotics: Enable robots to follow or avoid light sources.

• Solar Trackers: Optimize solar panel positioning for maximum efficiency.

• Security Systems: Detect sudden changes in light for alarms or alerts.

• Educational Projects: Teach students about sensors, electronics, and automation.

Example Project

A popular project is an automatic night lamp. Connect the module to an Arduino and program it to read the digital output. When ambient light falls below a set threshold, the module triggers the lamp to turn on automatically.

Another example is a light-following robot. By installing two LDR modules on the robot’s sides, the microcontroller can compare light intensity readings and steer the robot toward the brighter source. This demonstrates the module’s versatility in both automation and robotics.

Why Choose This Module?

The 4 Pin Photo-resistor LDR Light Detection Resistance Sensor Module is a must-have for electronics enthusiasts. Its dual output, adjustable sensitivity, and simple interface make it highly versatile for both beginners and advanced users. Compact, reliable, and cost-effective, it simplifies light-based sensing and automation projects.

Conclusion

The 4 Pin Photoresistor LDR Light Detection Resistance Sensor Module is an essential tool for anyone working on light-based automation, robotics, or DIY electronics. With its easy-to-use design, adjustable sensitivity, dual output options, and wide compatibility, it simplifies the process of adding light detection to your project.

Whether you’re a beginner learning Arduino basics or an engineer designing a smart automation system, this sensor provides a reliable and efficient solution for detecting light. Compact, affordable, and highly effective, the LDR sensor module is a must-have for every maker’s toolkit.

Data Sheet
