Description

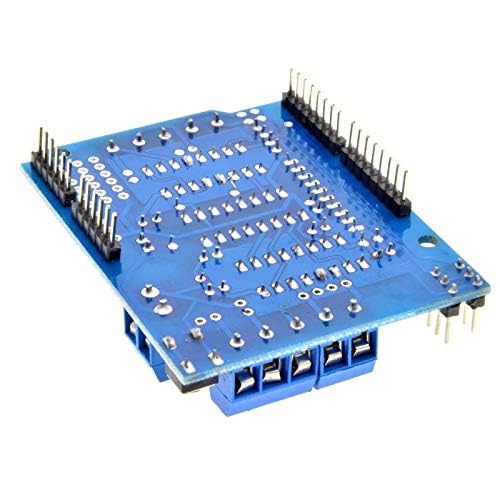

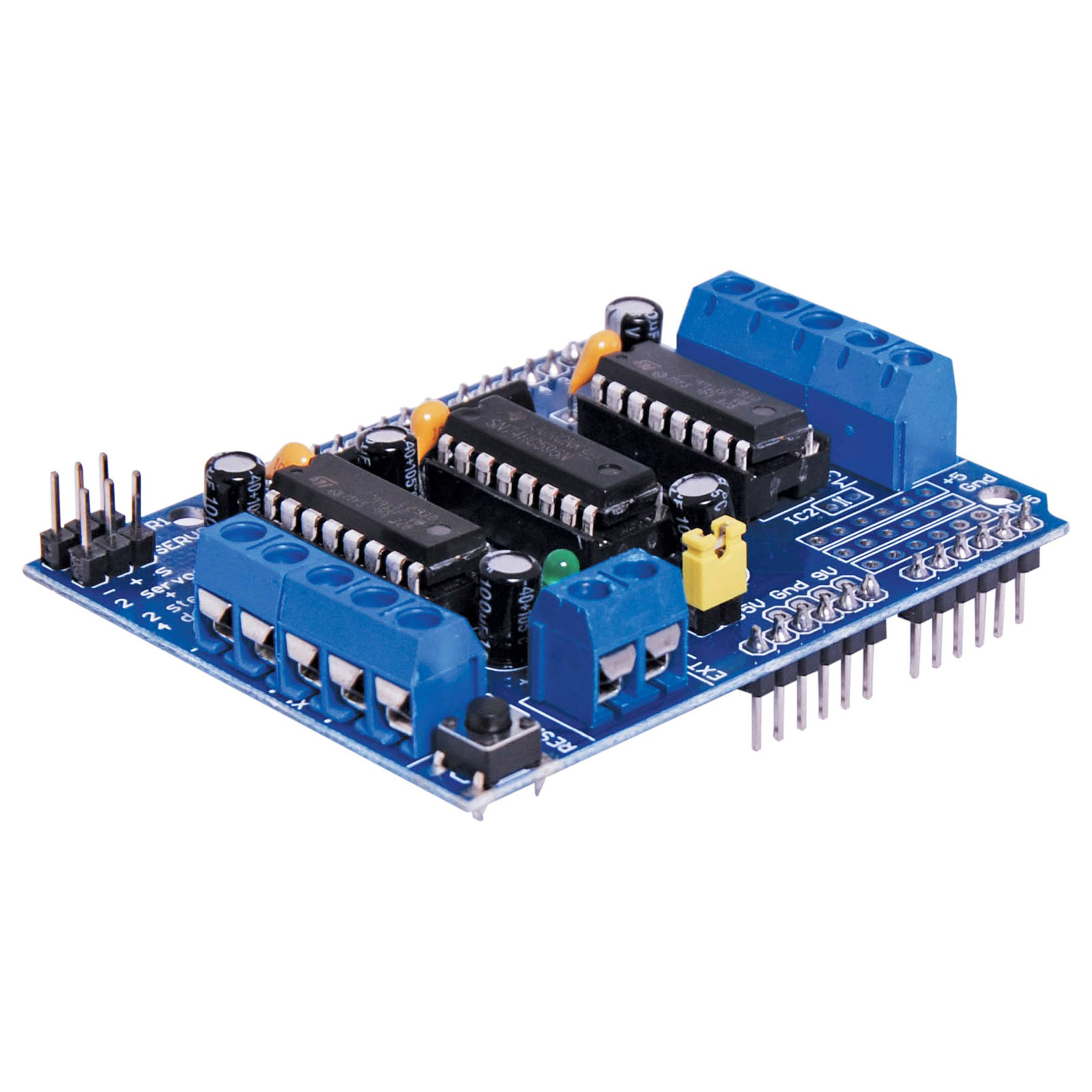

L293D Motor Control Shield – Motor Driver Expansion Board for Arduino

The L293D Motor Control Shield is a versatile and reliable motor driver expansion board designed specifically for Arduino projects. Whether you are building a simple robotic car, a smart automation system, or an advanced mechatronics project, this shield makes it easy to control multiple motors with precision and efficiency. By using the popular L293D motor driver ICs, the board provides stable current output and protection features, making it one of the most widely used motor shields for students, hobbyists, and engineers.

Key Features of the L293D Motor Control Shield

• Dual L293D ICs: Each IC can drive two DC motors, giving you control over up to 4 DC motors independently.

• Bidirectional motor control: Supports both forward and reverse rotation for each motor.

• Speed control: PWM (Pulse Width Modulation) inputs allow for variable speed adjustment of motors.

• Current capacity: Each channel supports up to 600mA continuous current (peak 1.2A).

• Stepper motor support: Capable of driving 2 stepper motors with precision control.

• Arduino compatibility: Designed as an Arduino Uno shield, it plugs directly on top of the Arduino board without additional wiring.

• Stackable design: Can be combined with other Arduino shields for more complex projects.

• Easy-to-use libraries: Fully supported by the Arduino IDE with example codes and libraries available online.

Why Choose the L293D Motor Driver Shield?

The L293D Motor Driver Expansion Board simplifies the process of controlling motors in robotics and embedded systems. Instead of connecting bulky driver circuits or wiring multiple components, this shield provides an all-in-one solution with neatly arranged pins and pre-configured layouts.

Some reasons why it is popular:

1. Beginner-friendly – Perfect for students and hobbyists starting with Arduino and robotics.

2. Reliable motor driving – Built-in diodes protect the circuit from back EMF, ensuring motor longevity.

3. Flexible motor types – Supports DC motors, stepper motors, and servo motors, making it suitable for a wide range of applications.

4. Compact and efficient – Saves space and eliminates the need for external driver circuits.

Technical Specifications

• Driver ICs: 2 × L293D motor driver chips

• Motor channels: 4 DC motors or 2 stepper motors

• Current per channel: 600mA continuous, 1.2A peak

• Voltage supply (motors): 4.5V to 25V DC

• Logic supply voltage: 5V (from Arduino)

• PWM control: Yes, via Arduino digital pins

• Dimensions: Standard Arduino shield size

• Compatibility: Arduino Uno, Arduino Mega, and other compatible boards

Applications of the L293D Motor Control Shield

The shield is widely used in:

• Robotics: Controlling wheels of robotic cars, arms, and robotic platforms.

• Automation projects: Driving conveyor belts, fans, or small automation tools.

• CNC and DIY machines: Controlling stepper motors for precision movements.

• STEM education: Ideal for students learning about motor control and electronics.

• Prototyping: Quick and easy testing of DC and stepper motors with Arduino.

How to Use the L293D Motor Driver Shield

Using this expansion board is straightforward:

1. Plug the shield onto your Arduino Uno or Mega.

2. Connect your motors to the motor terminals on the shield.

3. Supply motor power (separate from Arduino if needed for higher voltage motors).

4. Upload your Arduino sketch using the AFMotor library or other motor control libraries.

5. Start controlling motor direction and speed with just a few lines of code.

Package Includes

• 1 × L293D Motor Driver Shield for Arduino

Conclusion

The L293D Motor Control Shield Motor Drive Expansion Board for Arduino is an essential tool for anyone working on robotics, automation, or DIY electronics projects. With its ability to control up to 4 DC motors or 2 stepper motors, support for bidirectional and speed control, and seamless Arduino integration, it is a must-have shield for both beginners and advanced users.

If you want a reliable, cost-effective, and efficient way to add motor control to your Arduino projects, the L293D Motor Shield is the perfect choice.

Data Sheet
