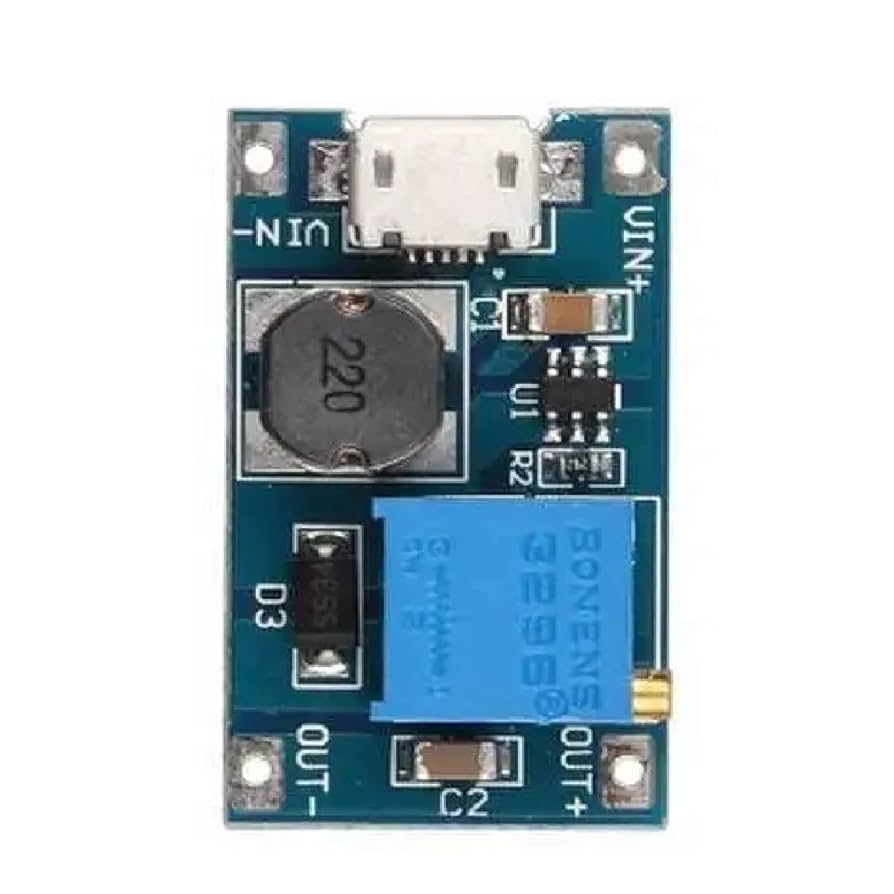

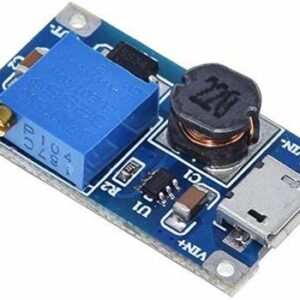

HW-183 Board DC-DC Step Up Power Module 2A B6287
HW-183 Board DC-DC Step Up Power Module 2A B6287
HW-183 Board DC-DC Step Up Power Module 2A B6287
HW-183 Board DC-DC Step Up Power Module 2A B6287

HW-183 Board DC-DC Step Up Power Module 2A B6287

55.00 EGP

The HW-183 DC-DC Step-Up Power Module is a high-efficiency boost converter based on the B6287 IC, designed to increase low DC voltage to a higher, stable output (up to 28V at 2A). Ideal for powering LED strips, motors, portable devices, and DIY electronics, this compact module efficiently converts 2V–24V input into adjustable output voltage with up to 96% efficiency.

With its built-in potentiometer for voltage adjustment, overcurrent protection, and minimal heat generation, the HW-183 is perfect for battery-powered projects requiring stable higher voltage from a lower source (e.g., 3.7V Li-ion to 12V).

SKU: HW-18301 Categories: , Tags: , , , , , , , ,

Description

Key Features

✔ Wide Input Range (2V–24V DC) – Works with batteries (Li-ion, 18650), solar panels, and lab PSUs.
✔ Adjustable Output (5V–28V) – Fine-tune voltage via onboard potentiometer.
✔ High Current (2A Max) – Supports power-hungry devices (LEDs, motors, etc.).
✔ Efficient Conversion (Up to 96%) – Minimizes energy loss with synchronous rectification.
✔ Compact & Lightweight – Fits into tight spaces (40mm × 20mm).
✔ Overcurrent Protection – Safeguards against short circuits and overloads.
✔ Low Ripple Noise – Clean output for sensitive electronics.

Technical Specifications

  • Input Voltage: 2V–24V DC

  • Output Voltage: Adjustable 5V–28V (default: set by potentiometer)

  • Max Output Current: 2A (sustained), 2.5A peak

  • Efficiency: Up to 96% (depends on input/output voltage)

  • Switching Frequency: 500kHz (low-noise operation)

  • Load Regulation: ±0.5%

  • Dimensions: 40mm × 20mm × 10mm

  • Weight: ~8g

Applications

  • LED Power Supply – Drive 12V/24V LED strips from 3.7V/5V batteries.

  • Portable Devices – Boost USB 5V to 9V/12V for gadgets.

  • DIY Electronics – Power Arduino, sensors, and motors from low-voltage sources.

  • Solar Projects – Step up solar panel voltage for charging circuits.

  • RC Models – Increase voltage for servos or cameras.

How It Works

  1. Connect Input – Wire the power source (2V–24V) to IN+ and IN-.

  2. Adjust Output – Turn the potentiometer to set desired voltage (use a multimeter).

  3. Connect Load – Attach devices to OUT+ and OUT- (within 2A limit).

  4. Power On – Module automatically stabilizes output voltage.

Package Includes

  • 1 × HW-183 DC-DC Step-Up Module (B6287)

  • (Optional) Jumper wires for prototyping

Why Choose the HW-183?

✅ Precise Voltage Control – Adjustable output for versatile use.
✅ High Power in Small Size – Packs 2A capability in a tiny module.
✅ Battery-Friendly – Ideal for 3.7V to 12V conversions.
✅ Reliable & Durable – Protections ensure long-term stability.

Get Yours Today!

Upgrade your projects with the HW-183 Step-Up Module—efficiently boost voltage for LEDs, motors, and more!

🔹 Order now and unlock higher voltage from low-power sources! 🔹
