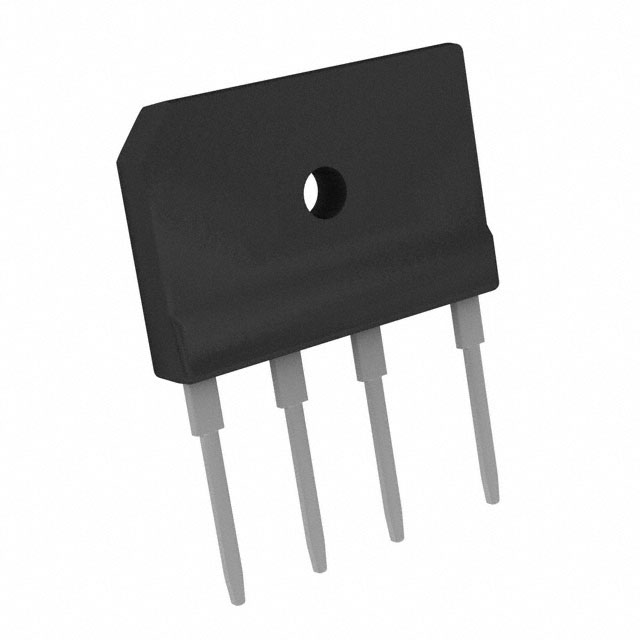

GBJ2508 SIP-4 25A Glass Passivated Bridge Rectifier
35.00 EGP
The GBJ2508 is a high-quality glass-passivated bridge rectifier designed for reliable AC-to-DC conversion in high-current applications. Built in a compact SIP-4 package, it offers excellent thermal performance and high surge current capability, making it suitable for demanding power supply and industrial equipment designs.
Description
Key Features:
-
High Current Capacity: Handles up to 25A continuous forward current.
-
High Voltage Rating: Maximum repetitive peak reverse voltage (VRRM) of 800V.
-
Glass Passivated Junction: Ensures superior stability, low leakage, and enhanced reverse voltage protection.
-
Low Forward Voltage Drop: Reduces power loss and heat generation for improved efficiency.
-
High Surge Current Handling: Withstands large inrush currents for inductive or capacitive loads.
-
Compact & Durable: SIP-4 package with easy mounting for space-saving designs.
-
Clear Polarity Markings: Simplifies installation and reduces wiring errors.
Typical Applications:
-
Switched Mode Power Supplies (SMPS)
-
Motor Drivers and Control Circuits
-
UPS (Uninterruptible Power Supplies)
-
Battery Charging Systems
-
Industrial Power Conversion
Electrical Specifications:
-
Average Forward Current (IF(AV)): 25A
-
Peak Reverse Voltage (VRRM): 800V
-
Forward Voltage (VF) @ 12.5A: ~1.1V
-
Peak Forward Surge Current (IFSM): up to 300A
-
Operating Temperature: -55°C to +150°C
-
Package Type: SIP-4, Through-Hole
The GBJ2508 combines high current capacity, excellent reliability, and compact design—making it an ideal choice for engineers and manufacturers requiring a dependable AC-to-DC rectification solution.
