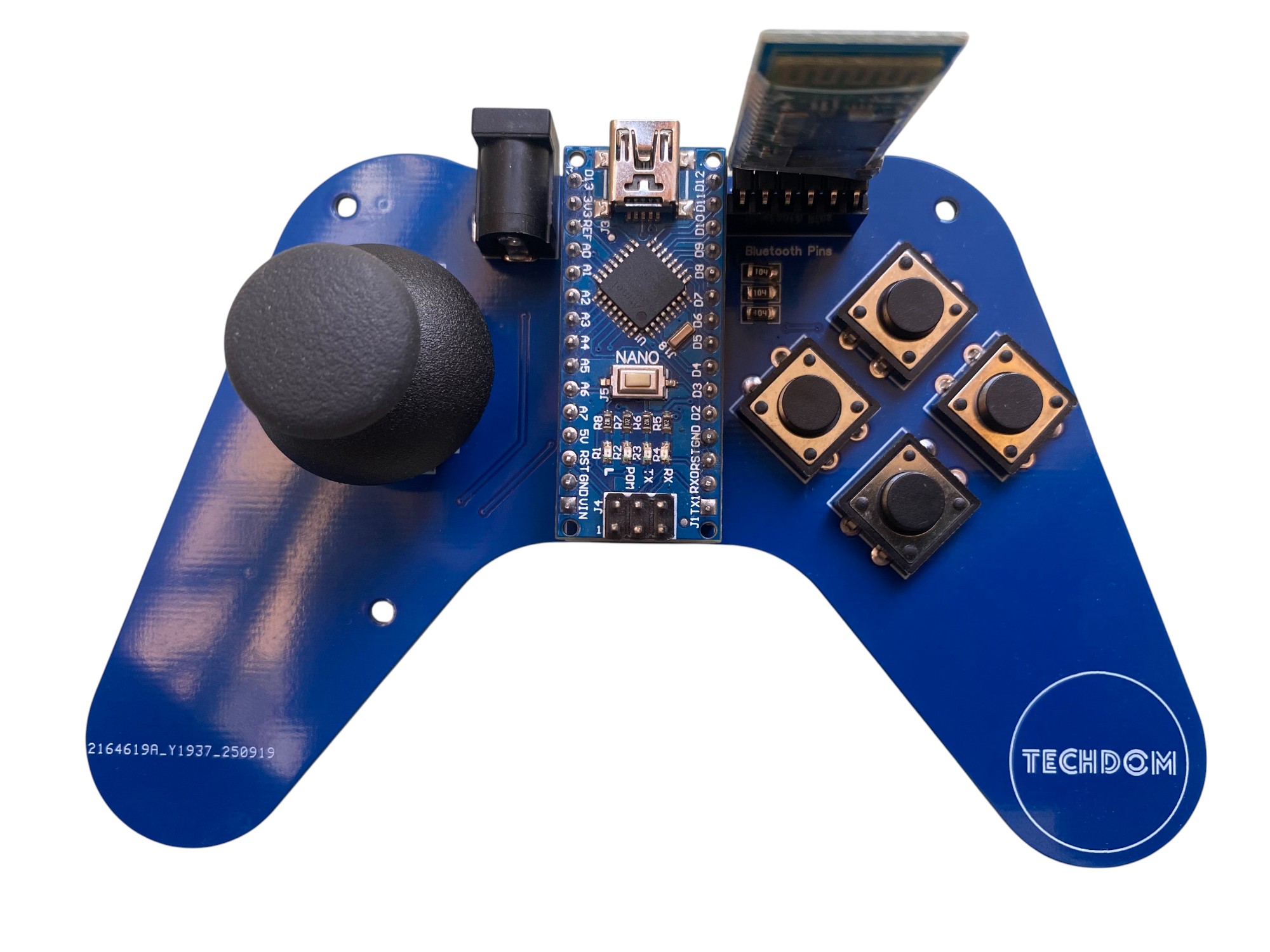

DomStick: Bluetooth Game Controller PCB Based on Arduino Nano

The DomStick Bluetooth Game Controller PCB is a versatile and compact solution for wireless robotic control, DIY gaming projects, and Arduino-based applications. Built around the Arduino Nano, this PCB integrates a joystick, buttons, and a Bluetooth HC-05 module, allowing you to create a fully functional wireless controller for robots, drones, or other electronic projects.

Designed with hobbyists, students, and makers in mind, the DomStick offers easy integration, flexibility, and reliable performance for Arduino enthusiasts looking to add Bluetooth control to their projects.

Features

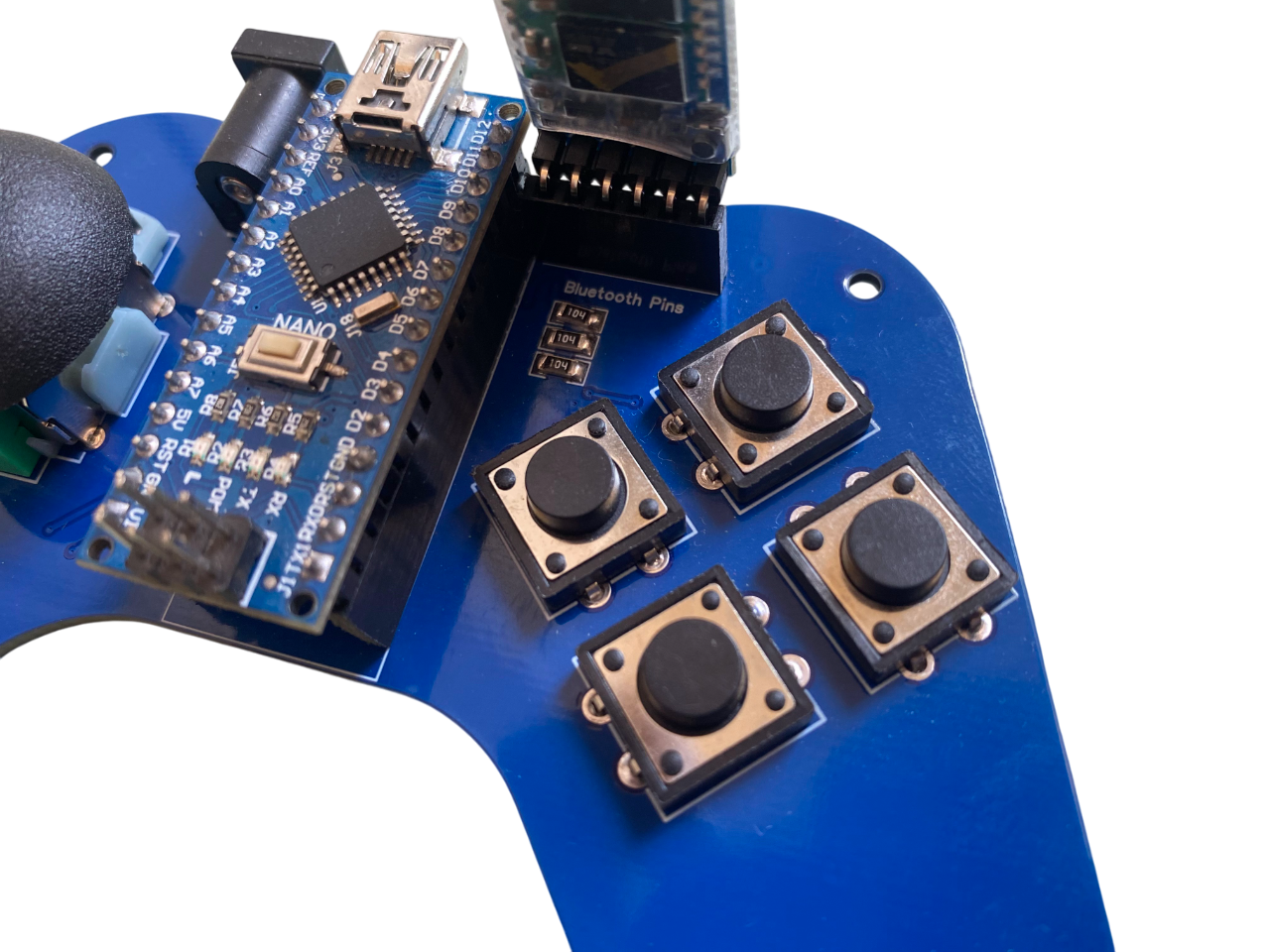

Buttons with Internal Pull-Up

All buttons on the DomStick PCB are connected directly to ground without external pull-up resistors. To ensure proper operation, you simply enable the Arduino Nano’s internal pull-up resistors on the input pins. This design choice simplifies the circuit and reduces component count while maintaining stable and responsive button inputs.

Joystick with Dual Axes

The joystick on the DomStick includes two axis-controlled variable resistors (X and Y axes) and a push button. Like the other buttons, the joystick button is not connected to an external pull-up resistor, so the Arduino Nano’s internal pull-up resistor should be enabled for accurate readings. This allows for precise directional control and smooth analog input for robotic movement or game control.

Bluetooth HC-05 Module

The DomStick uses the popular HC-05 Bluetooth module, configurable in Master-Slave mode. This enables wireless communication between your Arduino Nano-based controller and your robot, drone, or other compatible devices.

To protect the HC-05’s 3.3V RX pin, the DomStick PCB includes a voltage divider with three resistors to safely step down the Arduino’s 5V TX signal to the appropriate 3.3V level. This ensures safe, reliable communication and protects the Bluetooth module from voltage damage.

Applications

The DomStick Bluetooth Game Controller PCB is ideal for a wide range of projects:

• Arduino Robotics: Wireless control of robots with joystick and button inputs

• DIY Gaming Controllers: Create custom game controllers for Arduino-based games

• IoT Projects: Remotely control devices and interact with electronics

• Educational Projects: Teach programming, electronics, and wireless communication

• Prototyping: Easily test wireless control in prototype systems

Its compact PCB design allows it to fit into small enclosures, making it ideal for portable or embedded applications.

Benefits

• Compact and Lightweight: Easy to integrate into your projects

• Arduino Nano-Based: Flexible and widely compatible with Arduino code and libraries

• Wireless Control: HC-05 Bluetooth module enables remote operation

• Joystick and Buttons: Multiple input options for precise control

• Safe Communication: Voltage divider protects the Bluetooth module

• Easy Setup: Use Arduino’s internal pull-up resistors, reducing additional components

• DIY Friendly: Perfect for hobbyists, students, and makers

Why Choose DomStick

The DomStick PCB stands out for its simplicity, flexibility, and Bluetooth-enabled functionality. It reduces the complexity of designing your own wireless controller by providing pre-integrated buttons, joystick, and Bluetooth on a single PCB. Its Arduino Nano foundation ensures broad compatibility with existing Arduino libraries, sketches, and hardware.

Whether you are building a robot, a drone, a DIY game controller, or an interactive project, the DomStick allows you to wirelessly control your electronics with ease and precision.

Conclusion

The DomStick: Bluetooth Game Controller PCB Based on Arduino Nano is an essential tool for makers, hobbyists, and educators looking to add wireless control to their projects. With its joystick, push buttons, and HC-05 Bluetooth module, this PCB provides a compact, flexible, and reliable platform for Arduino-based remote control applications.

Invest in the DomStick PCB today to bring your robotic, gaming, or IoT projects to life with wireless, intuitive control.

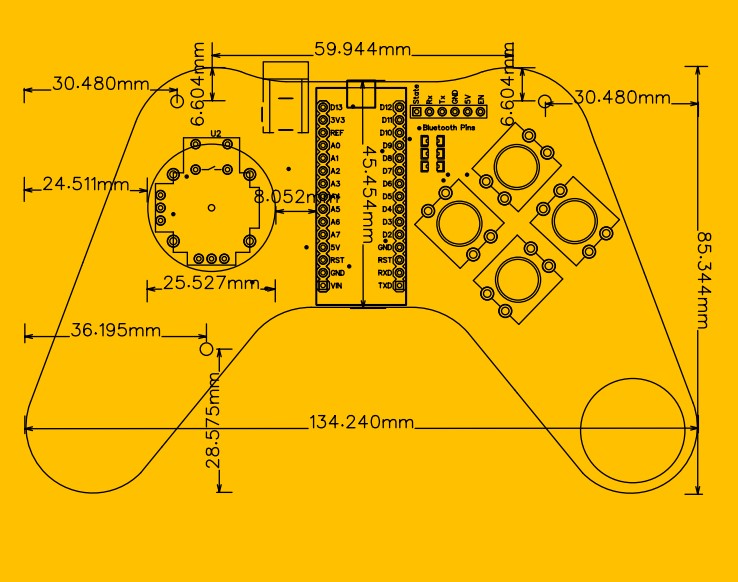

DomStick Data Sheet
