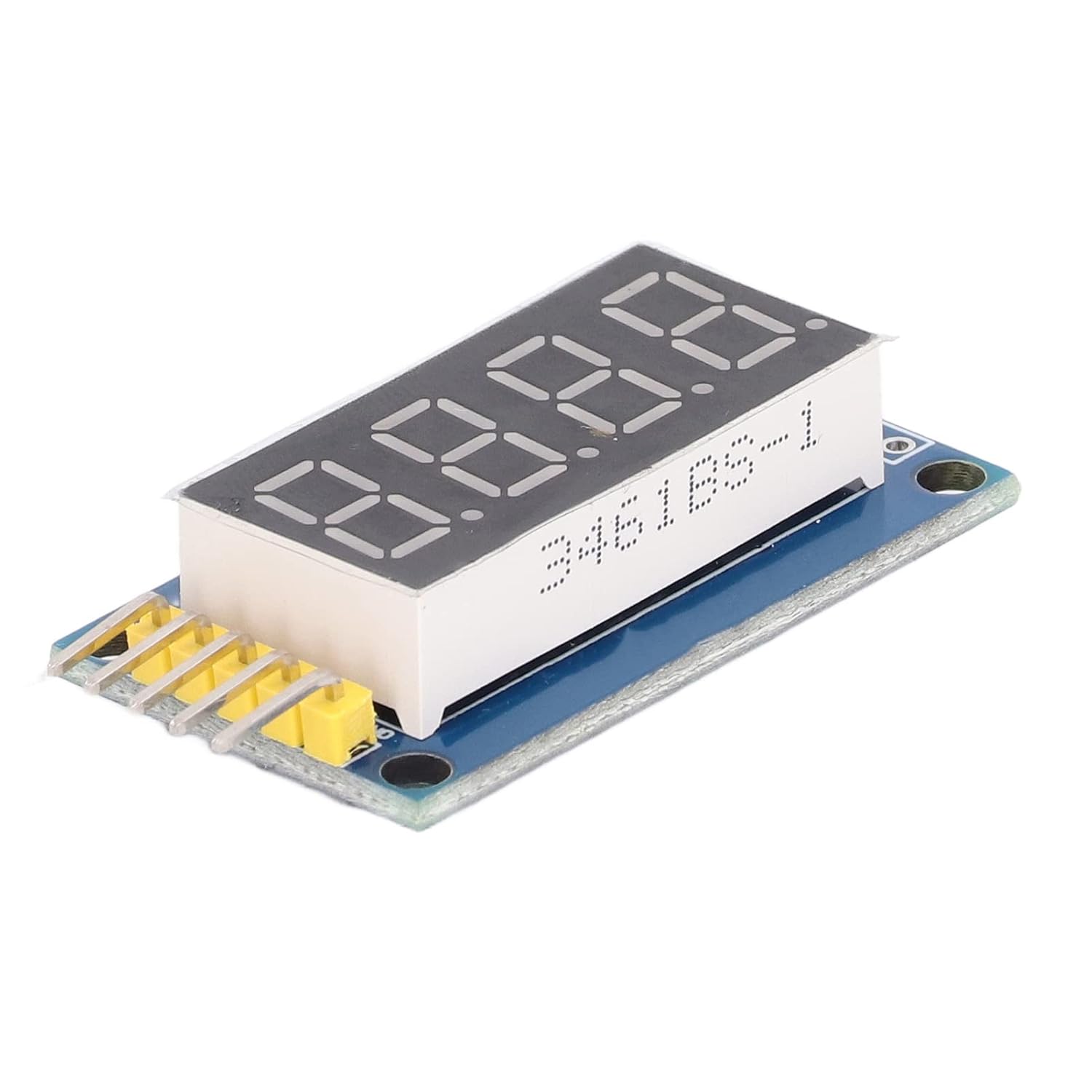

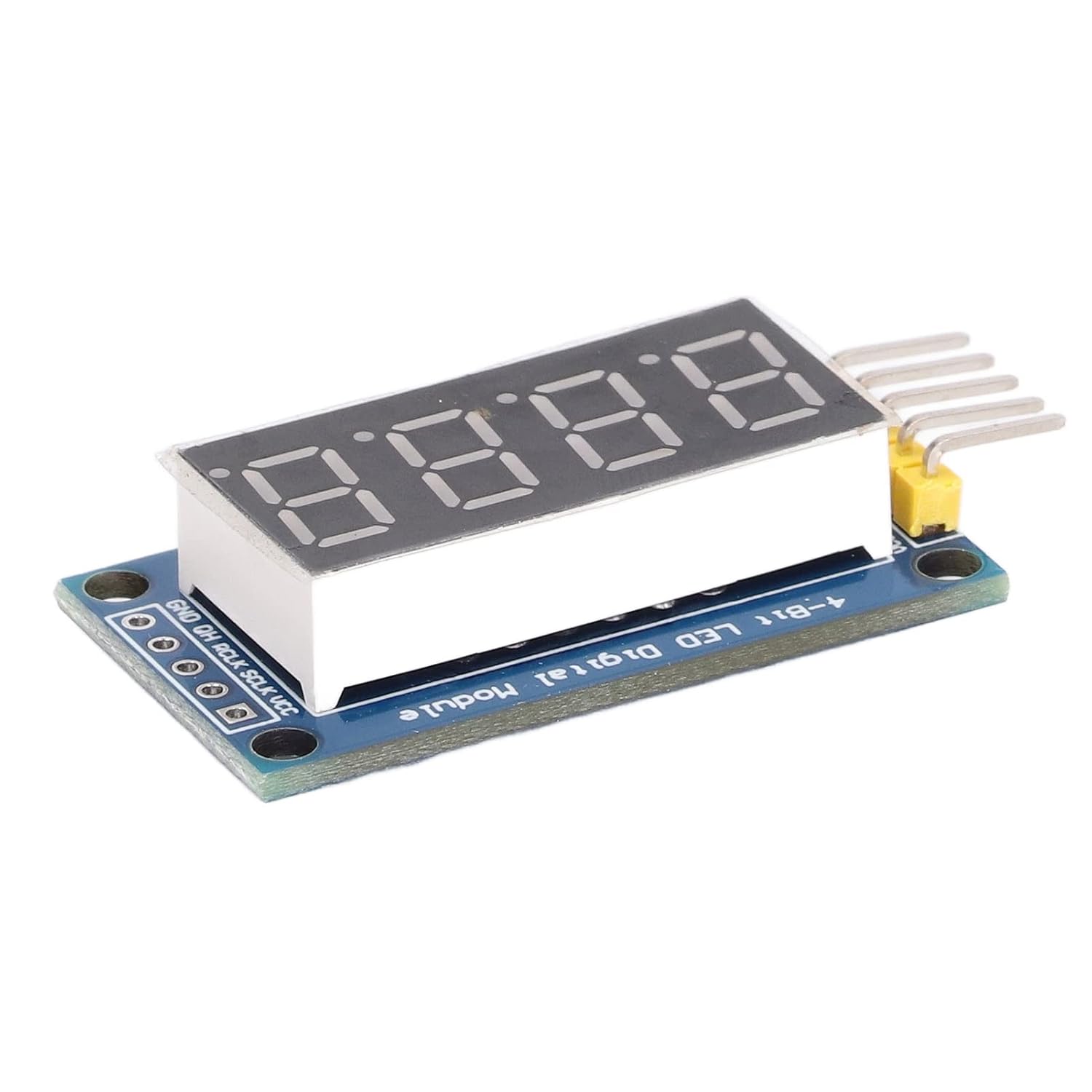

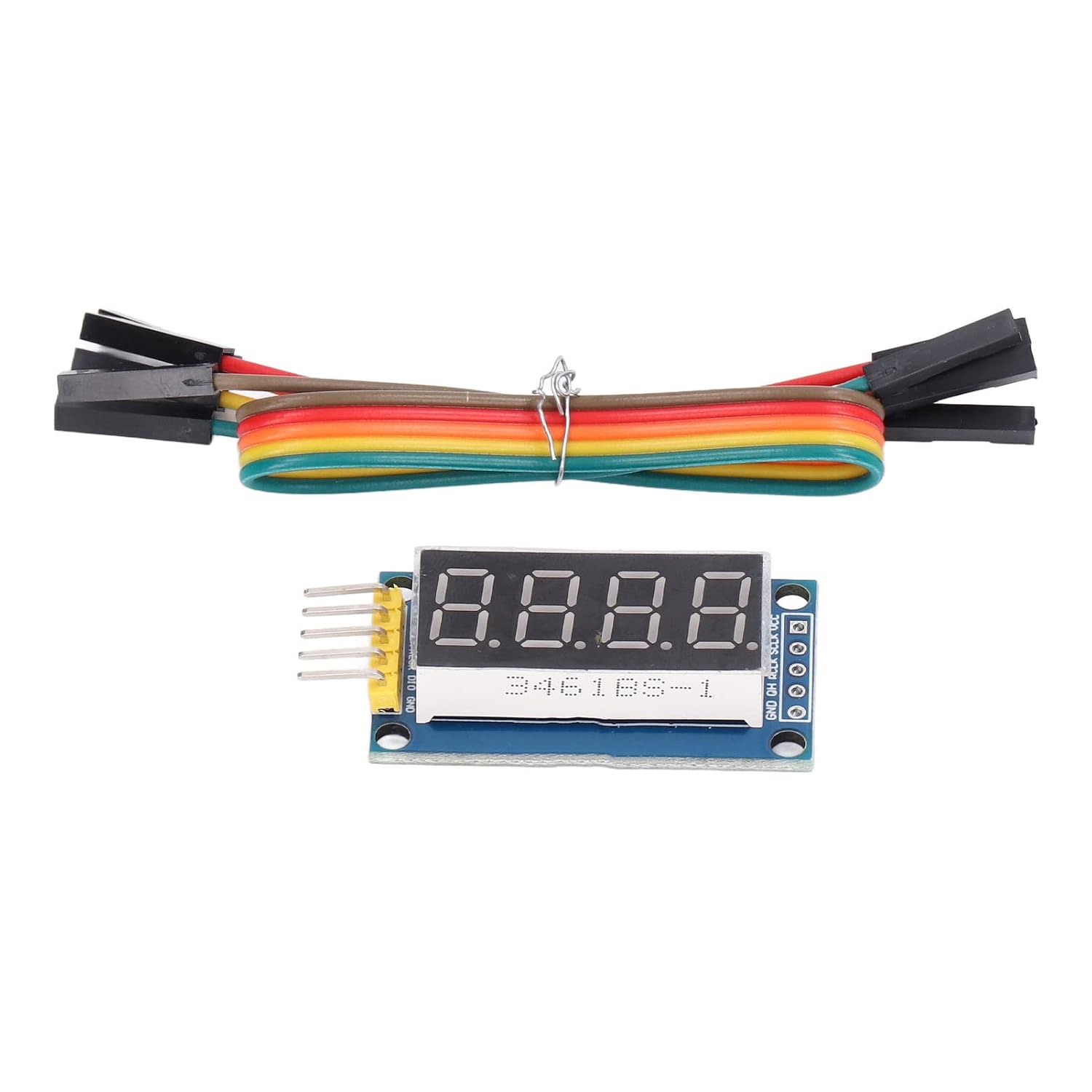

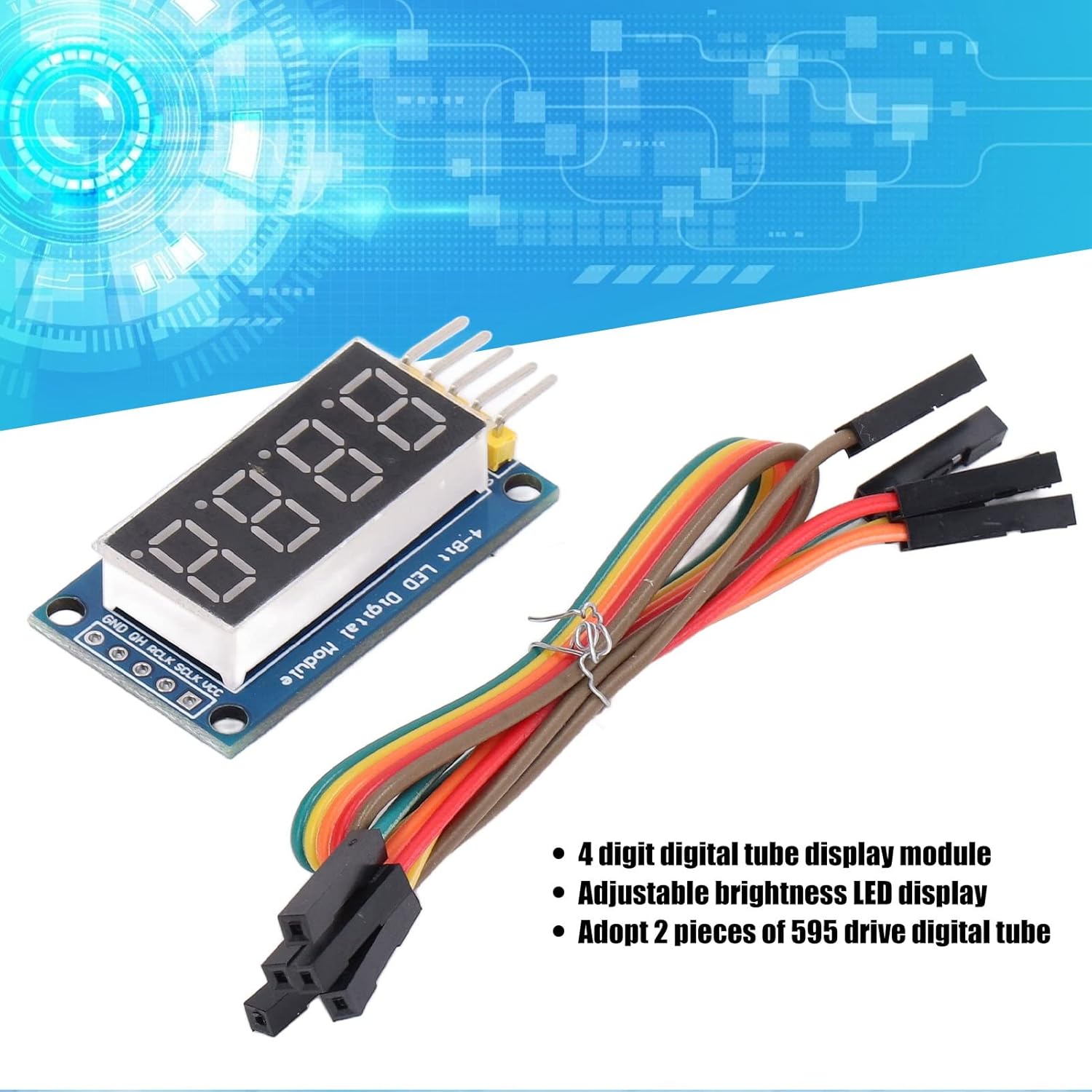

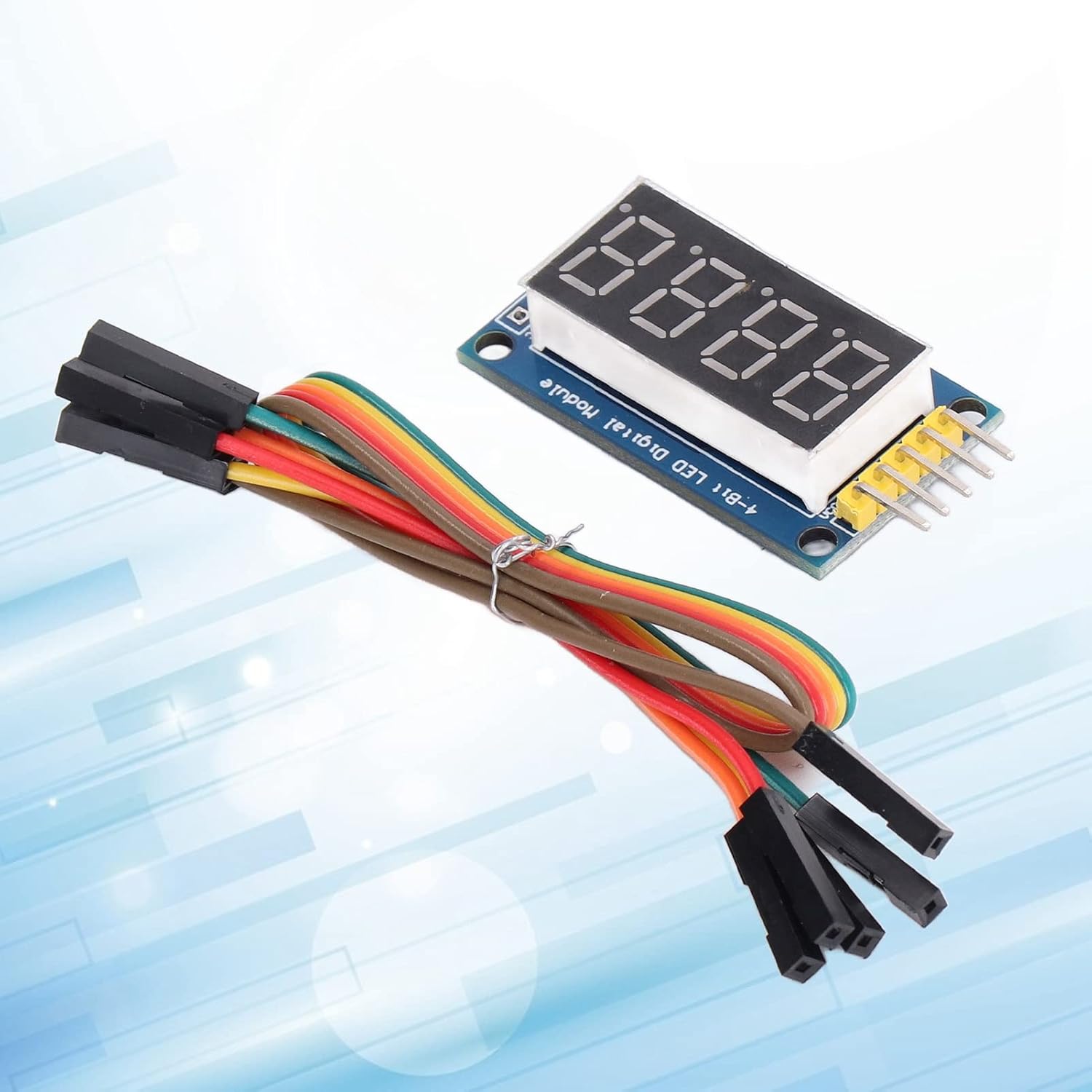

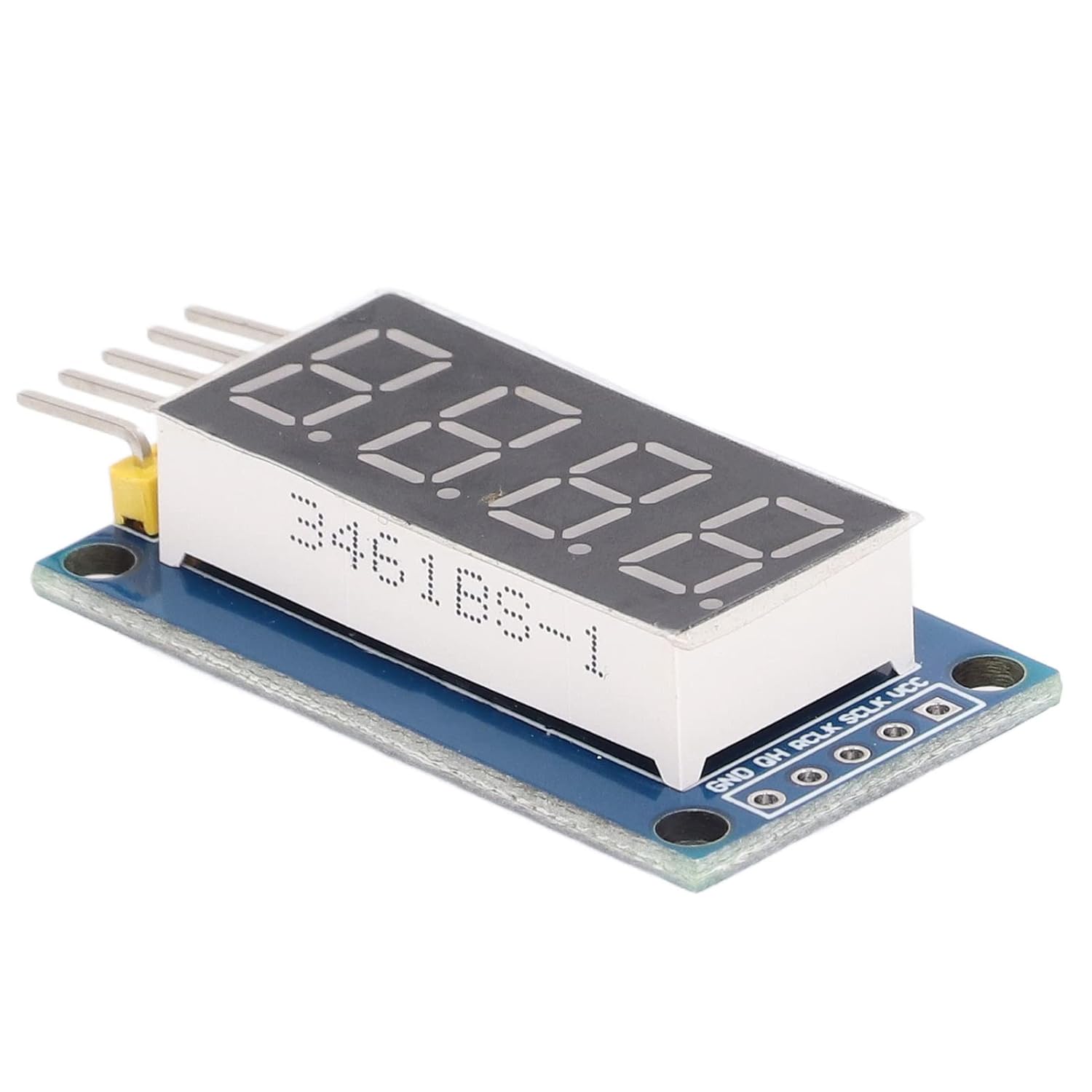

4 Digit Digital Module Unit 74HC595 LED Display Module
85.00 EGP
The 4-Digit Digital Module with 74HC595 Driver IC is a compact and efficient display solution designed for microcontroller projects, digital counters, timers, and measurement displays. Featuring four 7-segment LED digits and a shift register-based driving system, this module significantly reduces the number of microcontroller pins required, making it perfect for resource-limited applications.
The 74HC595 shift register enables serial-to-parallel conversion, allowing the microcontroller to control multiple segments using just a few I/O pins. This makes the module ideal for Arduino, Raspberry Pi, ESP8266, ESP32, and other embedded systems.
Description
Key Features:
-
4-Digit 7-Segment Display: Bright and clear numerical display for data output.
-
74HC595 Shift Register Control: Minimizes microcontroller pin usage by using serial data input.
-
High Brightness LEDs: Excellent visibility in various lighting conditions.
-
Compact & Easy to Use: Fits easily into breadboards or project enclosures.
-
Multi-Platform Support: Compatible with Arduino, Raspberry Pi, and other microcontrollers.
-
Multiple Uses: Suitable for displaying counters, timers, temperature readings, voltage levels, and other measurements.
Specifications:
-
Display Type: 4-digit 7-segment LED display
-
Driver IC: 74HC595 shift register
-
Input Voltage: Typically 5V DC
-
Control Interface: Serial (Data, Latch, Clock)
-
Digit Size: ~0.36 inch (varies by model)
-
Color Options: Commonly red (other colors available depending on version)
-

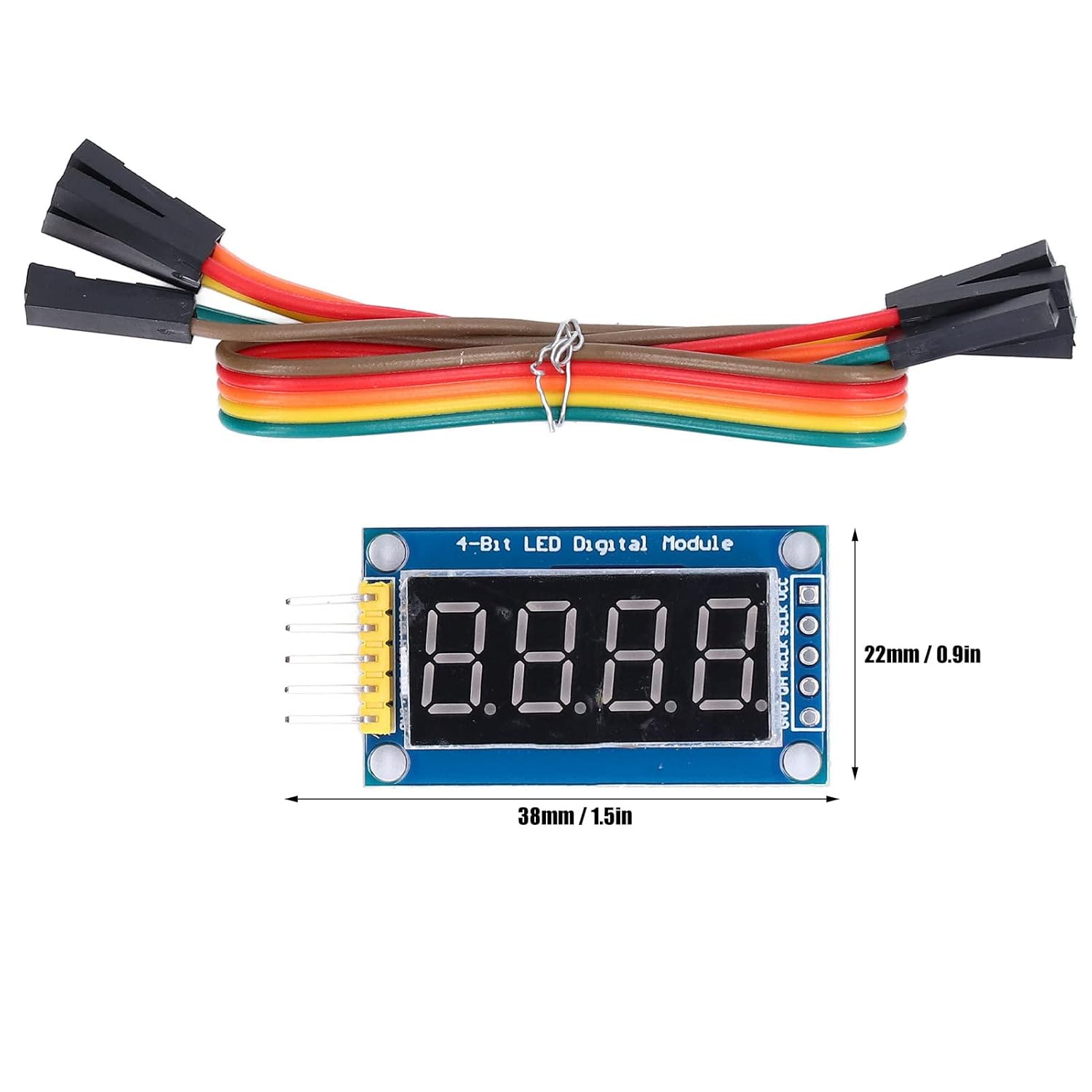

Module Dimensions: Compact PCB design for easy integration
Applications:
-
Digital clocks and timers
-
Electronic counters
-
DIY Arduino/Raspberry Pi projects
-
Voltage/current display units
-
Measurement instruments
-
Scoreboards and numerical indicators
Package Includes:
-
1 × 4-Digit Digital Display Module (74HC595 Driver)
