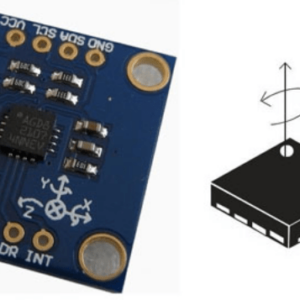

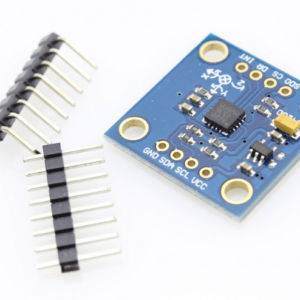

3 Axis Digital Gyroscope Sensor Module GY-50 L3G4200

125.00 EGP

The GY-50 (L3G4200D) 3-Axis Digital Gyroscope Module is a high-performance MEMS gyroscope that measures angular velocity (degrees per second) around the X, Y, and Z axes. With a selectable scale range (±250°/s to ±2000°/s) and I2C/SPI interface, it’s ideal for drones, robotics, stabilization systems, and motion tracking.

This module features low noise, high stability, and built-in temperature compensation, making it suitable for both hobbyist and industrial applications.

SKU: MD-27643 Category: Tags: ,

Description

🔑 Key Features

✅ Triple-Axis Detection – X, Y, Z angular velocity measurement.
✅ Wide Range Selectable:

  • ±250°/s (High precision)

  • ±500°/s

  • ±1000°/s

  • ±2000°/s (High-speed motion)
    ✅ Digital Output – I2C (default) and SPI interfaces.
    ✅ Low Power Consumption – 5V/3.3V compatible.
    ✅ Built-in Temperature Sensor – Automatic drift compensation.
    ✅ High Resolution: 16-bit ADC output.


📊 Technical Specifications

  • Chip: L3G4200D (STMicroelectronics).

  • Supply Voltage: 3.3V–5V DC.

  • Current Consumption: ~6mA (typical).

  • Output Data Rate (ODR): 100Hz–800Hz (adjustable).

  • Interface: I2C (default address: 0x69), SPI (optional).

  • Dimensions: 20mm × 16mm × 2mm.
