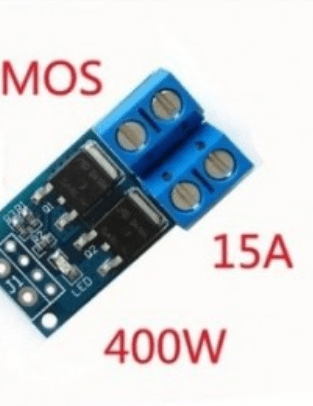

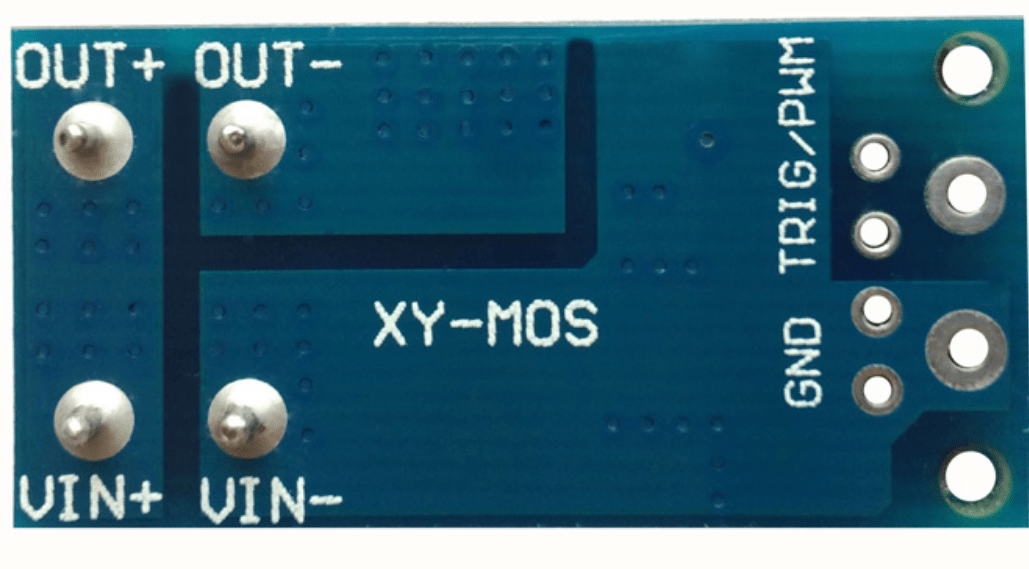

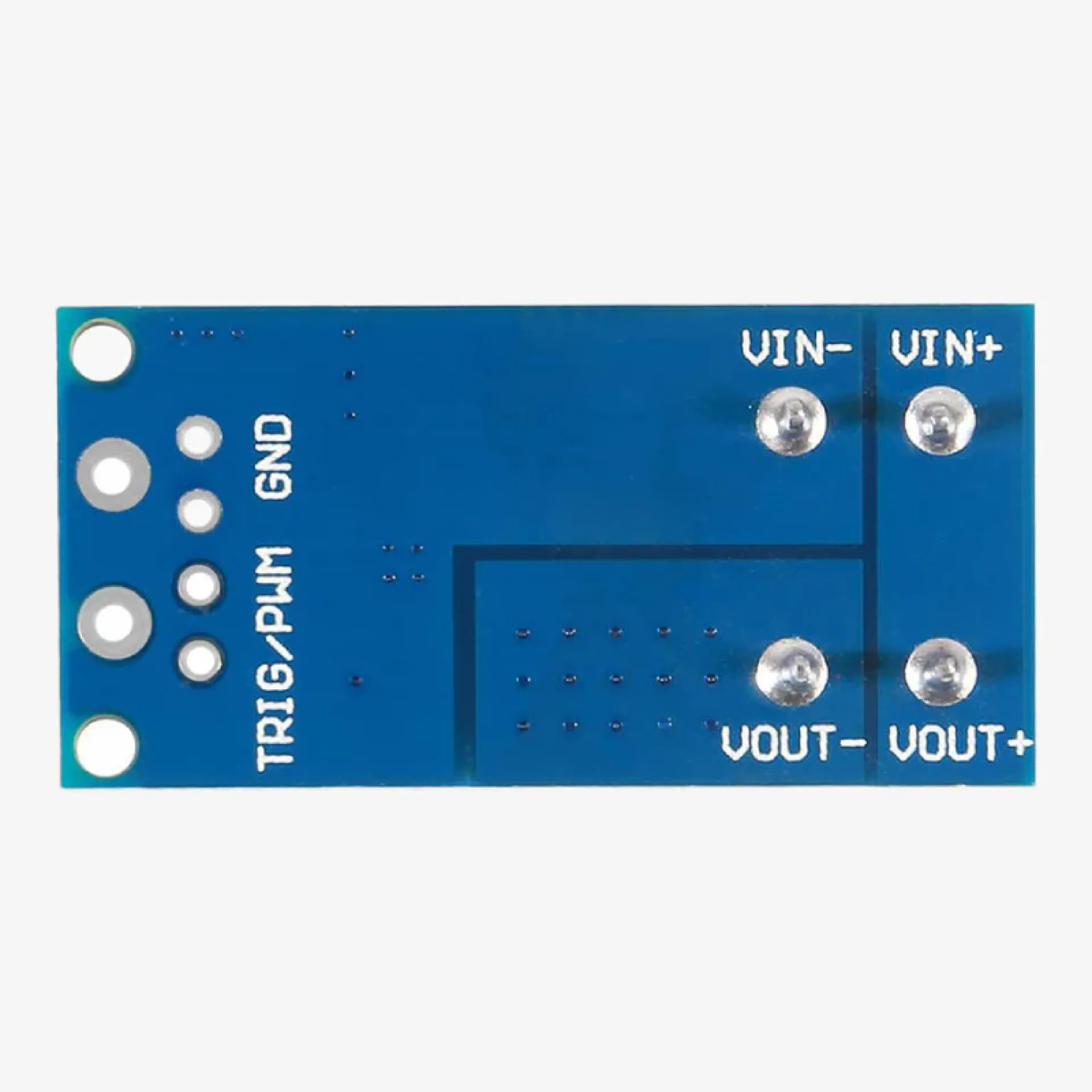

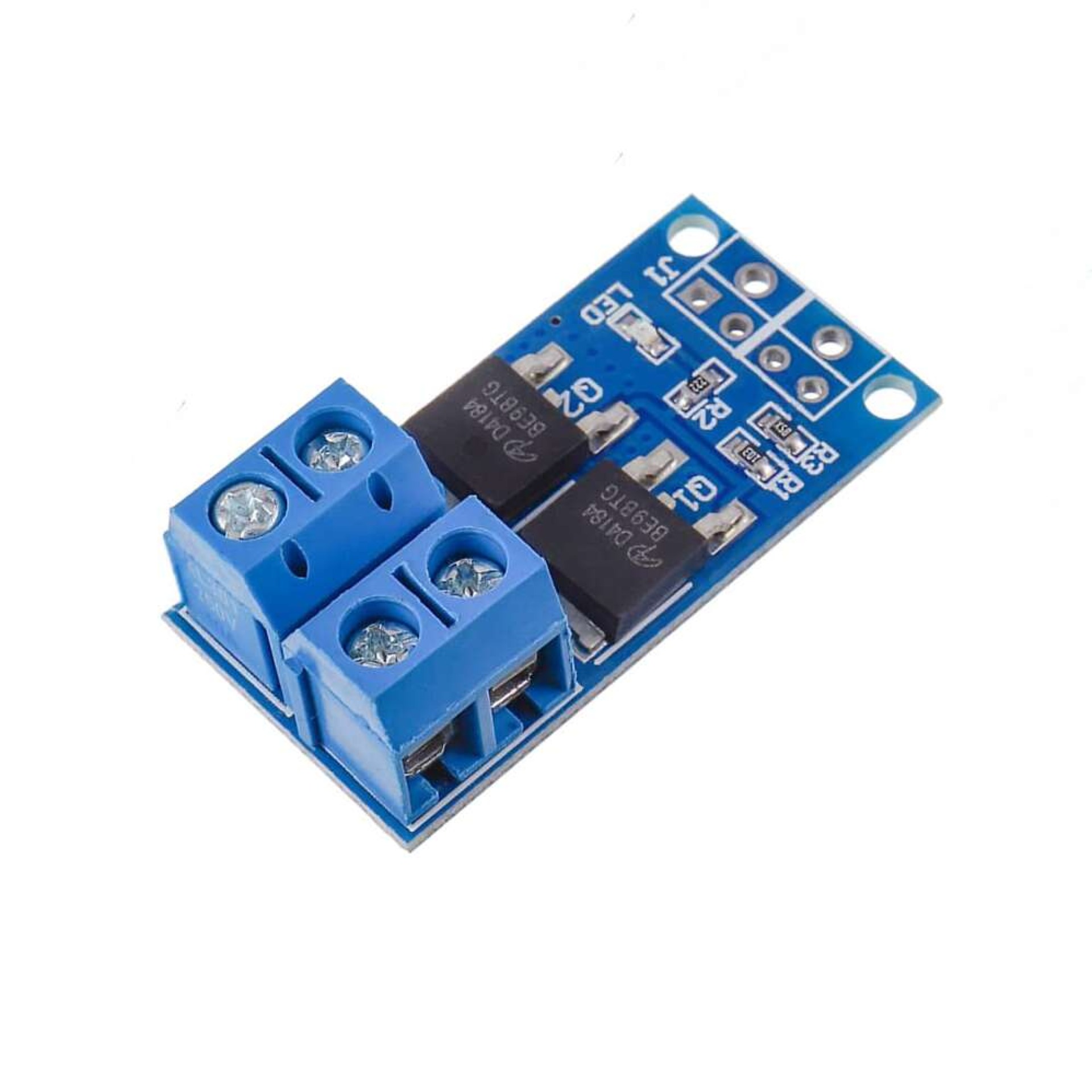

High-power MOSFET Trigger Switch Drive Module

 DC Operating Voltage: 5V - 36V

The trigger source: Digital high-low (DC3.3V - 20V), can be connected micro-controller IO port, PLC interfaces,  DC power, you can access the PWM signal, the signal frequency 0--20KHZ perfect support.

Output Capacity: DC 5V - 36V, at room temperature, continuous current 15A, power 400W! Lower auxiliary  cooling conditions, the maximum current up to 30A.

Applications: You can control the output of power equipment, motors, light bulbs, LED lights, DC motors, micro-pumps,  solenoid valves, etc., you can enter PWM, motor speed control, lamp brightness.

Availability: unlimited switch

Operating temperature: -40-85

Dimension: 34mm x 17mm x 12mm

Package Include: 1 x  High-power MOSFET Trigger Switch Drive Module

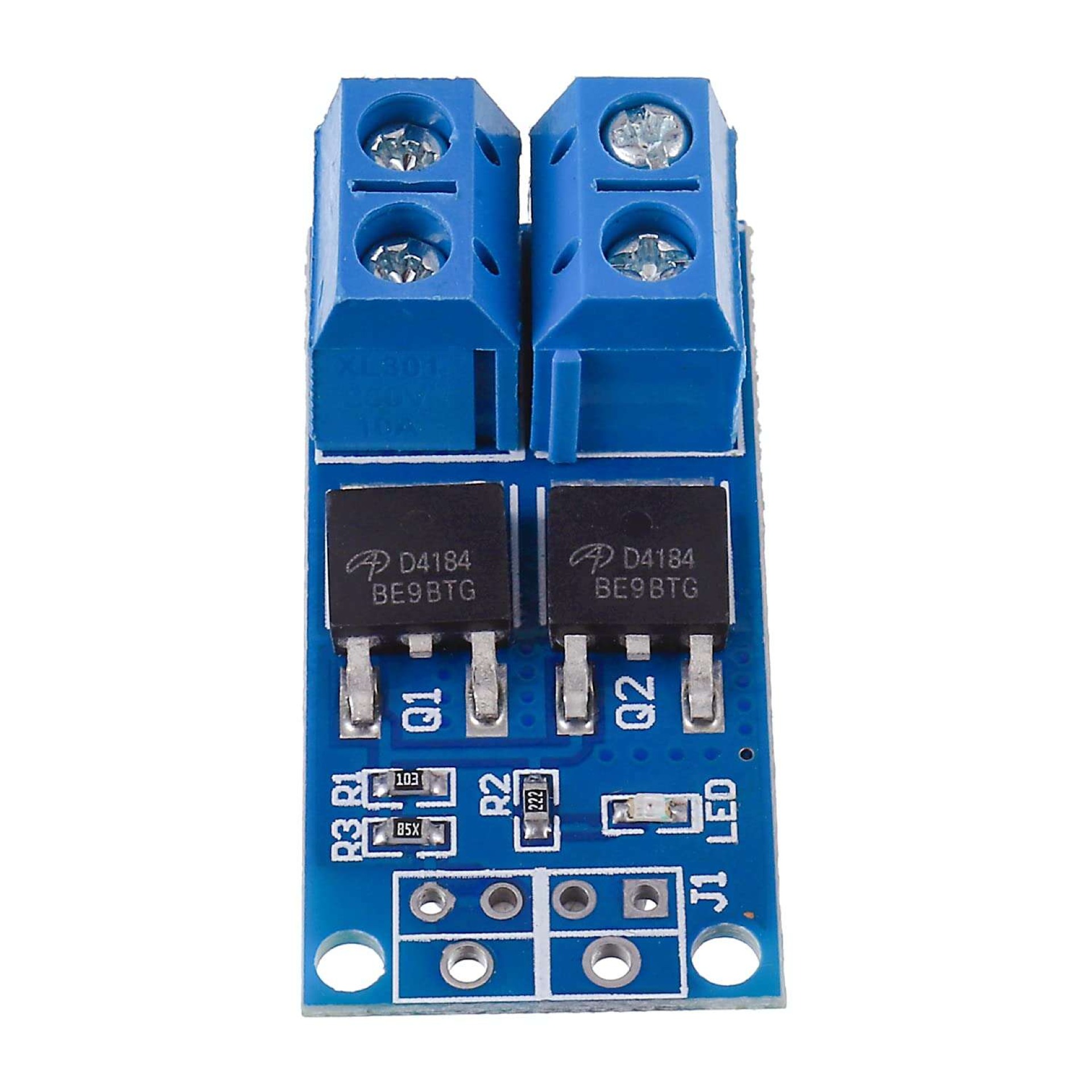

The use of imported dual-MOS parallel active output, lower resistance, more current, strong power at room temperature, 15A, 400W, to meet the most use of the equipment

Wide voltage, the perfect support for PWM

Easily control high power devices

Input PWM to achieve motor speed control, lamp brightness control

1 x High-power MOSFET Trigger Switch Drive Module
