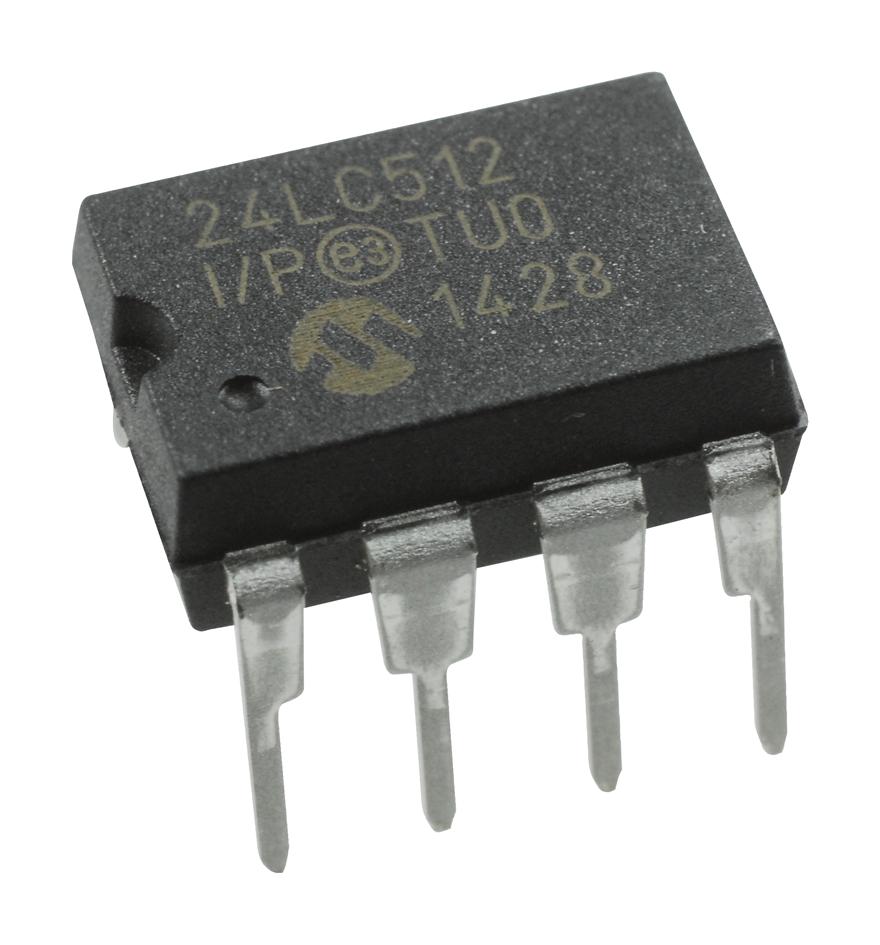

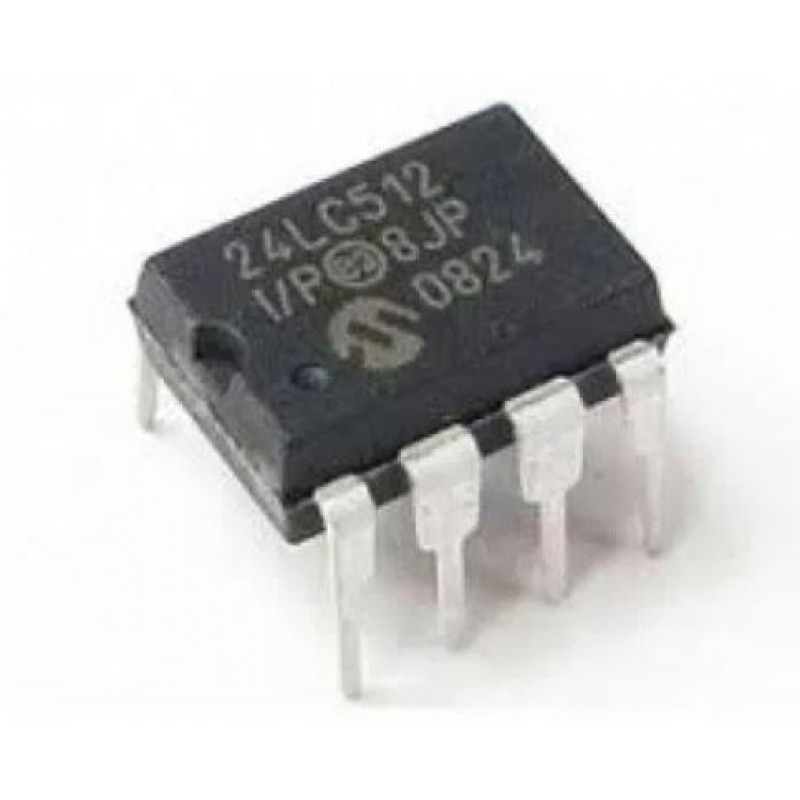

24LC512-I/P Microchip EEPROM

Electra Store SKU: 24LC512

85.00 EGP

In Stock

Quantity

Share to

Overview

The 24LC512-I/P is a high-performance 512Kbit (64KB) I²C Serial EEPROM from Microchip Technology, designed for reliable non-volatile data storage in embedded systems. With its I²C interface, low power consumption, and wide voltage range, it is ideal for applications requiring frequent read/write operations, such as data logging, configuration storage, and firmware backup.

Description

Key Features

✅ High-Capacity Storage – 512Kbit (64KB) organized as 65,536 x 8 bits. ✅ I²C Interface – Supports standard (100kHz) and fast (400kHz) modes. ✅ Wide Voltage Range – Operates from 1.7V to 5.5V, making it compatible with 3.3V and 5V systems. ✅ Low Power Consumption –

Active Read Current: ~ 1 mA (typical)
Standby Current: ~ 1 µA (typical) ✅ High Endurance – 1,000,000 erase/write cycles per byte. ✅ Long Data Retention – > 200 years (typical). ✅ Hardware Write Protection – WP (Write Protect) pin prevents accidental writes. ✅ Industrial Temperature Range – -40°C to +85°C for robust performance. ✅ PDIP-8 Package – Easy to prototype on breadboards and PCBs.

Technical Specifications

Parameter	Value
Memory Size	512Kbit (64KB)
Interface	I²C (2-wire serial)
Operating Voltage	1.7V – 5.5V
Clock Frequency	100kHz (Standard), 400kHz (Fast Mode)
Page Write Buffer	128 bytes
Write Cycle Time	5ms (max)
Data Retention	> 200 years
Endurance	1,000,000 cycles per byte
Package Type	8-pin PDIP (DIP-8)
Operating Temperature	-40°C to +85°C

Applications

🔹 Data Logging Systems – Store sensor readings and system logs. 🔹 Embedded Systems – Save configuration settings and calibration data. 🔹 Consumer Electronics – Firmware backup & parameter storage. 🔹 Industrial Automation – Non-volatile memory for PLCs and controllers. 🔹 IoT Devices – Retain network settings and device states. 🔹 Automotive Electronics – Store critical system parameters.
