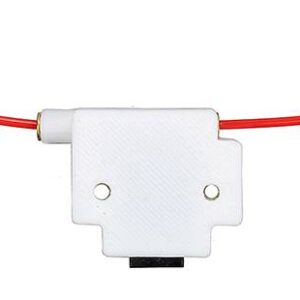

1.75mm Filament Detection Sensor Module

110.00 EGP

The 1.75mm Filament Detection Sensor Module is a mechanical end-stop switch designed for 3D printers to detect filament presence or jams. When filament runs out or breaks, the sensor triggers a low/high signal to pause printing, preventing failed prints.

This module is compatible with most 3D printer boards (Creality, Prusa, RAMPS) and supports Marlin/Klipper firmware configurations.

SKU: MD-26633 Category: Tags: ,

Description

  • 🔑 Key Features

    ✅ 1.75mm Filament Compatibility – Works with standard 3D printer filament.
    ✅ Mechanical Microswitch – Reliable, no false triggers from dust/debris.
    ✅ Normally Open (NO) / Normally Closed (NC) Modes – Configurable wiring.
    ✅ Easy Mounting – Fits Ender 3, CR-10, and custom setups.
    ✅ LED Indicator – Visual feedback (on/off state).
    ✅ 3-Pin Connector (VCC, GND, Signal) – Plug-and-play with 3D printer mainboards.


    📊 Technical Specifications

    • Filament Diameter: 1.75mm (Not for 2.85/3mm filament).

    • Switch Type: Mechanical microswitch (SPST).

    • Voltage: 3.3V–5V DC (Logic-level compatible).

    • Current Rating: ≤100mA.

    • Output Signal: Digital (HIGH/LOW, depending on wiring).

    • Mounting: M3 screws (holes included).

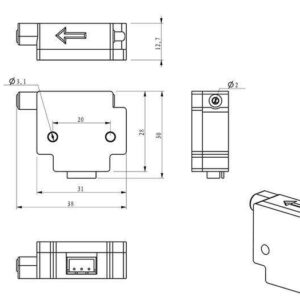

    • Dimensions: ~30mm × 20mm × 15mm.
