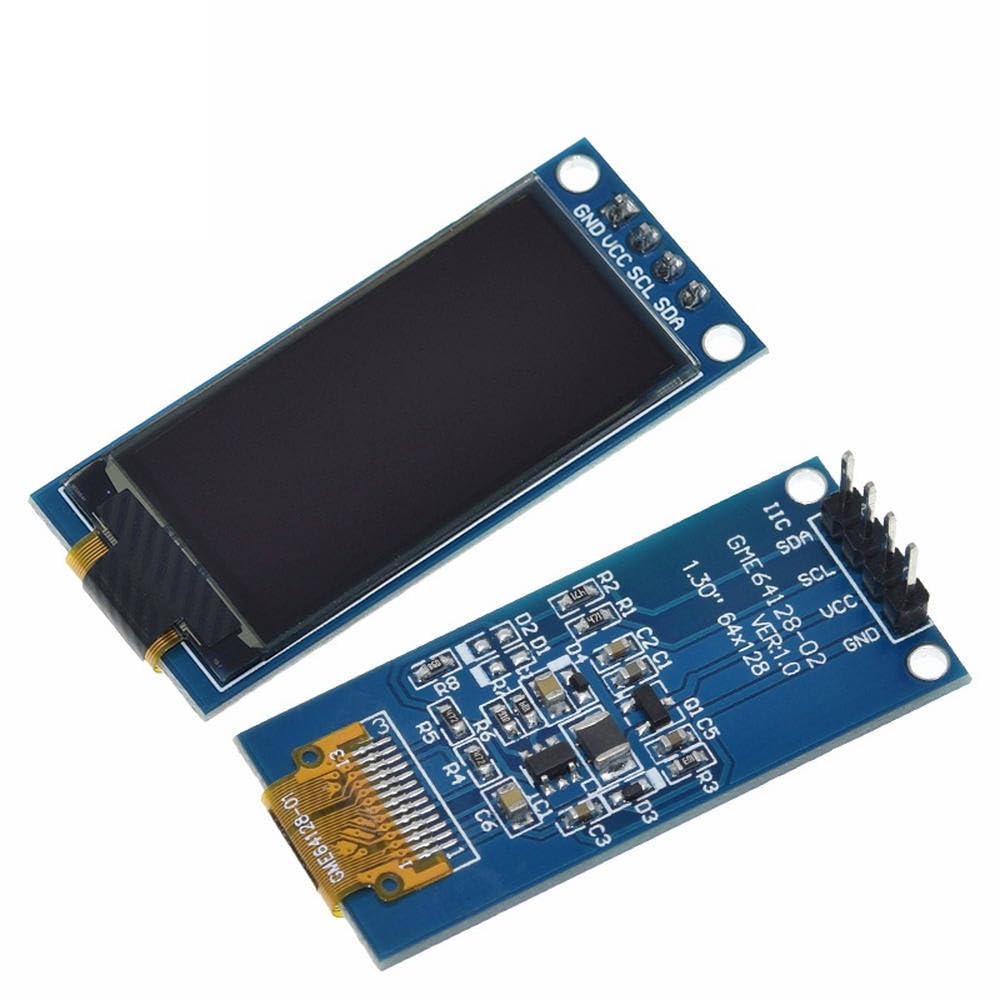

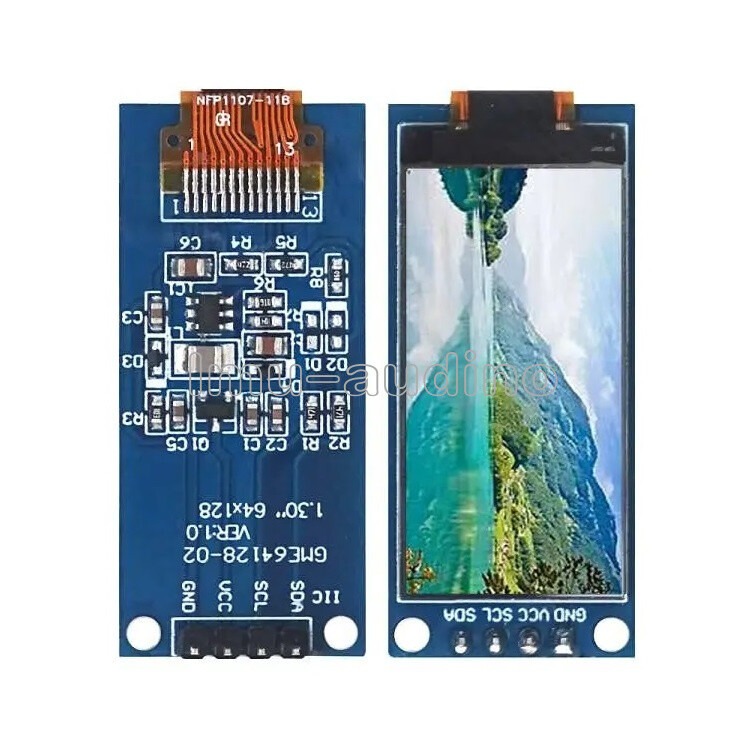

1.3 Inch OLED 64×128 LCD Module OLED Vertical Screen Module for Arduino

320.00 EGP

This 1.3-inch OLED module features a 64×128 vertical resolution, SSD1306 controller, and dual interface (I2C & SPI). With self-emissive pixels (no backlight needed) and 0.96mm thickness, it’s perfect for low-power Arduino projects, wearables, and compact devices.

✅ Vertical Orientation – Ideal for slim interfaces
✅ Dual Interface – I2C (default) or SPI configurable
✅ 0.1″ Header Pins – Breadboard-friendly
✅ Arduino/ESP32/RPi Compatible

SKU: TC-45585 Categories: Light Source and Display, LCD

Description
Reviews (0)

Description

1.3 Inch OLED 64×128 LCD Module OLED Vertical Screen Module for Arduino

📊 Key Specifications

Parameter	Details
Display Size	1.3 inches (diagonal)
Resolution	64 × 128 (vertical layout)
Controller	SSD1306
Interface	I2C (default) or SPI (jumper select)
Color	Monochrome (white/blue/yellow)
Viewing Angle	180°
Contrast Ratio	10,000:1
Power Supply	3.3V-5V compatible
Current Draw	~20mA (active), <0.1mA (sleep)
Dimensions	35.5 × 32.5 × 1.2mm

🔌 Pinout & Connections

Default I2C Configuration (4-pin)

OLED Pin	Arduino	ESP32	Function
VCC	3.3V/5V	3.3V	Power
GND	GND	GND	Ground
SCL	A5 (Uno)	GPIO 22	I2C Clock
SDA	A4 (Uno)	GPIO 21	I2C Data

SPI Configuration (7-pin, solder jumpers)

OLED Pin	Arduino	Function
CS	D10	Chip Select
DC	D9	Data/Command
RES	D8	Reset

🛠️ Hardware Setup

I2C Mode (Recommended for Arduino)

Connect VCC/GND to power
Link SCL/SDA to I2C pins
No resistors needed (module has built-in pull-ups)

SPI Mode (For Faster Refresh)

Solder bridge BS0/BS1 jumpers per manual
Connect all SPI pins (MOSI/MISO not used)

🚀 Project Ideas

✔ Miniature Weather Station (ESP32 + BME280)
✔ Pocket Game Console (Arduino + joystick)
✔ Bike Computer Display (Speed/distance metrics)
✔ Smartwatch Prototype (Low-power time display)
