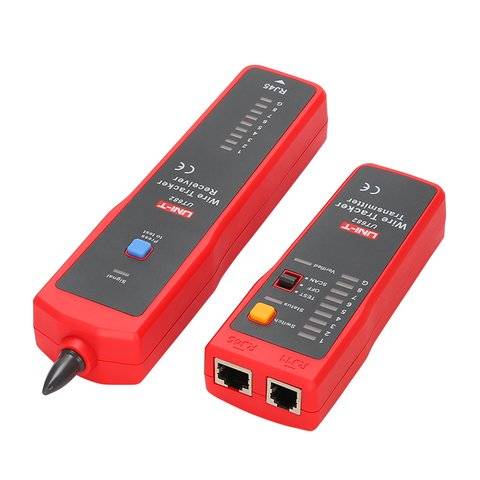

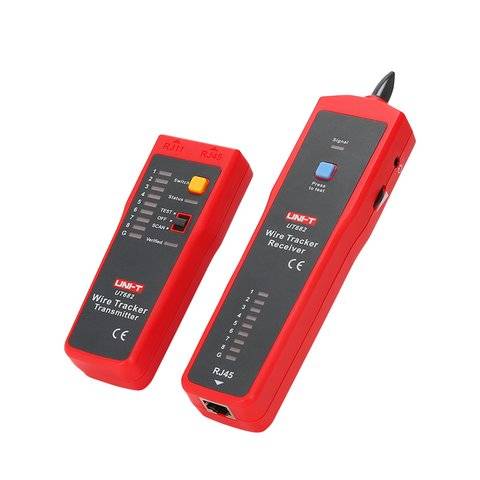

UNI-T UT682 Wire Tracker

⚙️ Key Features:

• Cable Compatibility: Suitable for LAN (RJ45), telephone (RJ11), coaxial, and power cables.

• Non-Invasive Tracing: Detects cables without opening their insulation.

• Open/Short Circuit Detection: Quickly identifies cable faults.

• Polarity Testing: Checks voltage levels and polarity on telephone lines (±5V to 52V DC).

• Line Sequence Verification: 9-LED display for checking wiring sequences.

• Signal Strength Indicator: LED-based feedback for accurate tracing.

• Audio Signal Output: Adjustable volume with single/double tone options.

• Headset Support: 3.5mm jack for use in noisy environments.

• Auto Power-Off: Conserves battery life after periods of inactivity.

• Low Battery Indicator: Alerts when battery replacement is needed.​

📊 Technical Specifications:

• Tracking Distance:

  • Telephone Lines: ≥3000 meters

  • Switchboard Wires: ≥100 meters

  • Unshielded/Shielded Cables: ≥320 meters

• Transmitter Output Voltage: ≥12V peak-to-peak

• Power Supply: 9V battery for both transmitter and receiver

• Transmitter Dimensions: 125mm × 48mm × 28mm; Weight: 125g

• Receiver Dimensions: 195mm × 48mm × 30mm; Weight: 153g

• Operating Temperature: 0°C to 40°C

• Storage Temperature: -10°C to 50°C

• Operating Humidity: 20% to 75% RH

• Storage Humidity: 10% to 90% RH

• Altitude: ≤2000 meters

🛠️ Ideal Applications:

• Network cable installation and maintenance

• Telephone line troubleshooting

• Identifying and tracing power cables

• Detecting open or short circuits

• Verifying wiring sequences in structured cabling systems
