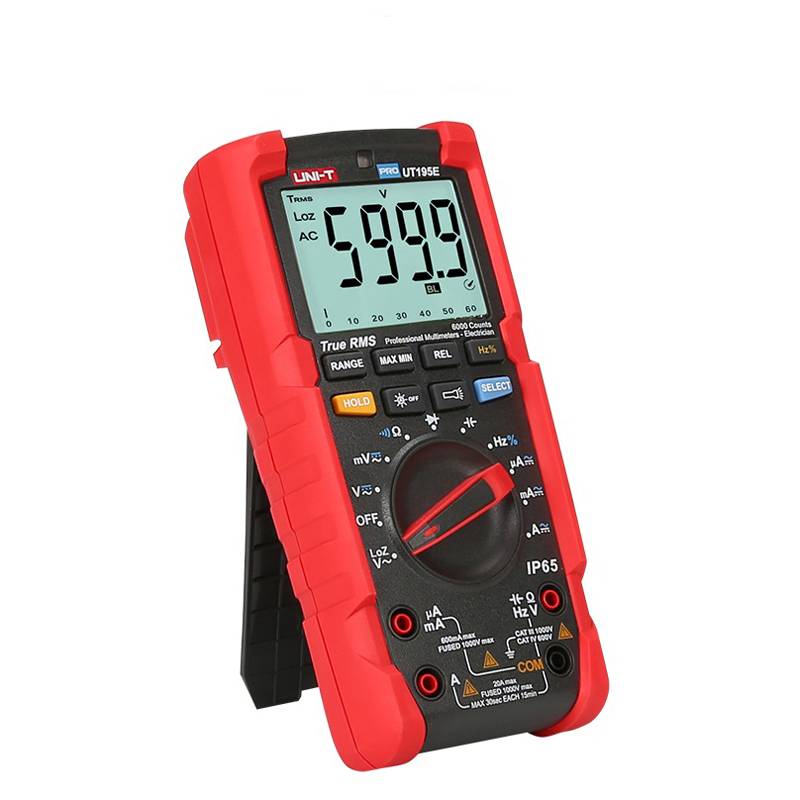

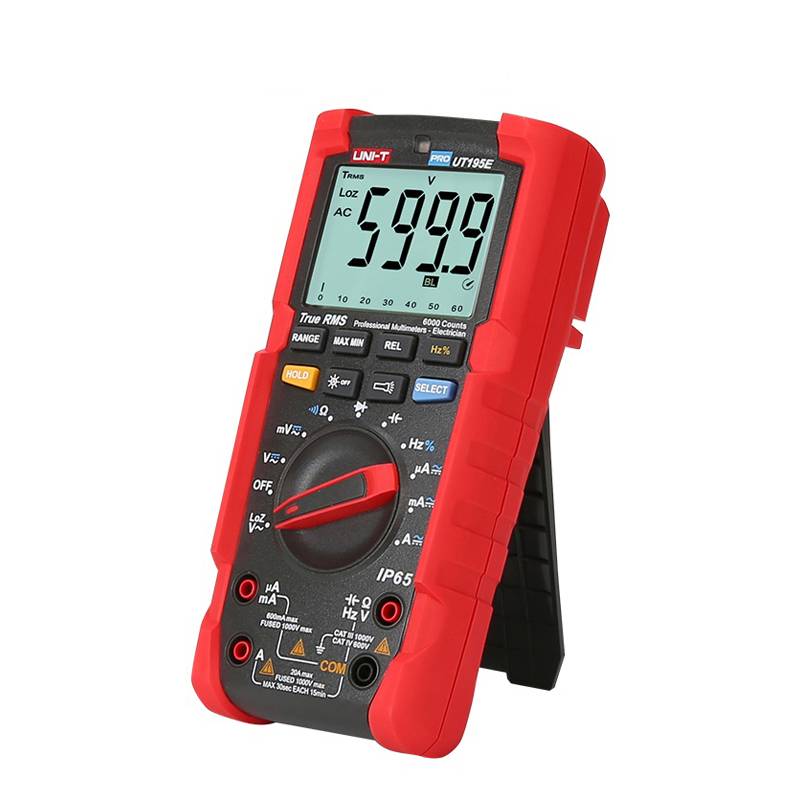

Key Features:

• True RMS Measurement: Ensures accurate readings for both sinusoidal and non-sinusoidal waveforms.

• Wide Measurement Range: Capable of measuring up to 1000V DC and 750V AC, accommodating a broad spectrum of electrical systems.

• High Current Capacity: Measures up to 20A AC/DC, suitable for high-current applications.

• Comprehensive Testing Functions: Includes diode testing, continuity testing, capacitance (up to 60mF), frequency (up to 10MHz), duty cycle, and temperature measurements.

• Large Display: Features a 6000-count LCD screen with a 31-point analog bar graph for easy reading of measurements.

• Enhanced Durability: IP65 rated for water and dust resistance, and drop-proof up to 2 meters, ensuring reliability in harsh environments.

• Safety Compliance: Rated CAT III 1000V and CAT IV 600V, meeting international safety standards.

• Additional Features: Auto and manual ranging, data hold, max/min recording, relative mode, auto power off, auto backlight, and built-in flashlight for convenience.

Specifications:

• DC Voltage: 600mV/6V/60V/600V/1000V ±(0.5%+3)

• AC Voltage: 600mV/6V/60V/600V/750V ±(0.7%+3)

• DC Current: 600µA/6mA/60mA/600mA/6A/20A ±(0.8%+3)

• AC Current: 600µA/6mA/60mA/600mA/6A/20A ±(1%+3)

• Resistance: 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ ±(0.8%+2)

• Capacitance: 6nF/60nF/600nF/6µF/60µF/600µF ±(3%+5)

• Frequency: 60Hz–10MHz ±(0.1%+4)

• Duty Cycle: 0.1%–99.9%

• Temperature: -40°C to 1000°C

• Display Count: 6000

• Sampling Rate: 3 times/second

• Analog Bar Graph: 31 segments

• Power Supply: 9V battery

• Dimensions: 195mm x 95mm x 58mm

• Weight: 437g

Applications:

• Electrical Troubleshooting: Identifying and diagnosing electrical issues in circuits.

• Routine Maintenance: Regular checks and maintenance of electrical systems.

• Industrial Applications: Ensuring proper functioning of machinery and equipment.

• HVAC Systems: Monitoring and maintaining heating, ventilation, and air conditioning systems.

• Educational Use: Teaching and learning about electrical measurements and safety.
