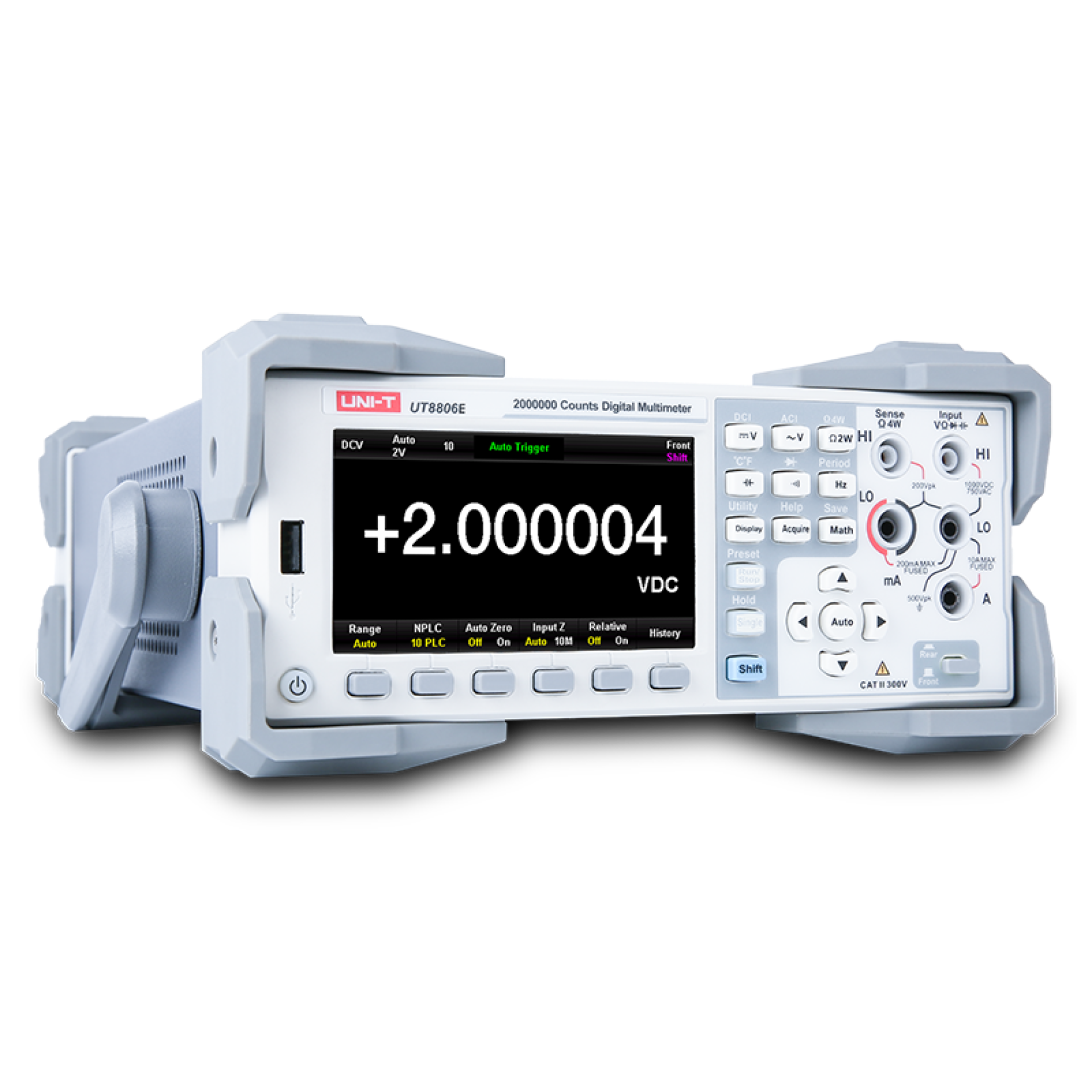

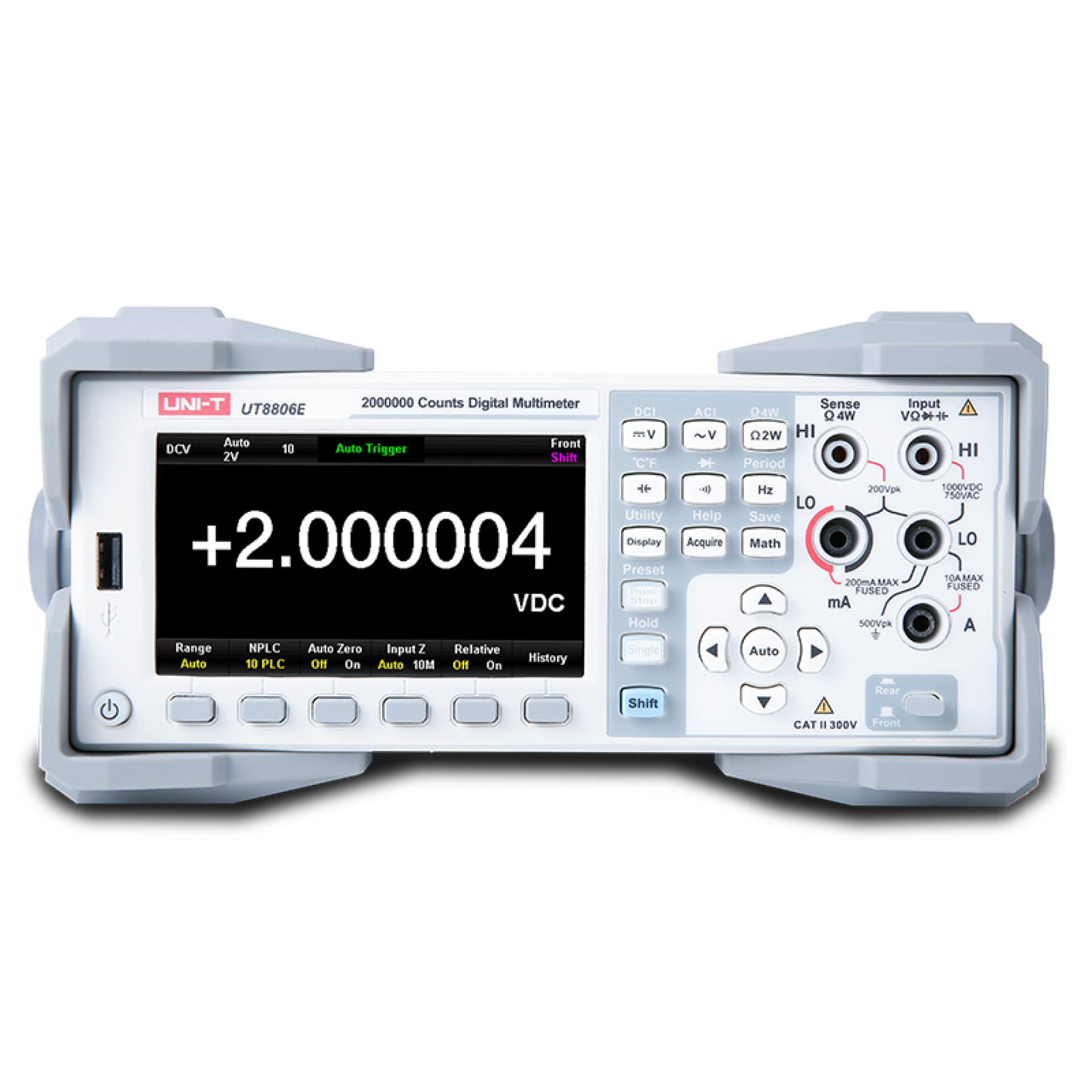

UNI-T UT8806E 6½-Digit Bench Digital Multimeter

Features:

• High-Precision Measurement: Provides 6½-digit resolution and up to 1,999,999 display counts for detailed electrical measurements.

• High Measurement Speed: Supports measurement rates of up to 10,000 readings per second for fast data acquisition.

• True RMS Measurement: Measures AC voltage and current using True RMS technology.

• Wide Measurement Capability: Supports DC and AC voltage, DC and AC current, resistance, capacitance, frequency, period, temperature, continuity, and diode testing.

• Dual-Display Function: Displays two measurement parameters from the same input signal simultaneously, depending on the selected measurement mode.

• Color TFT Display: Features a 4.3-inch TFT LCD with 480 × 272 resolution for clear readings and convenient operation.

• Data Analysis Tools: Includes minimum, maximum, average, standard deviation, relative measurement, pass/fail evaluation, histograms, bar charts, and trend graphs.

• Remote Control and Automation: Supports SCPI commands and PC-based control for automated testing and measurement systems.

• Multiple Communication Interfaces: Provides USB Host, USB Device, LAN, and RS-232C connectivity, with GPIB available as an option.

• Internal Data Storage: Includes 32GB NAND flash storage for instrument settings and measurement data.

Specifications:

• Brand: UNI-T

• Model: UT8806E

• Product Type: Desktop / Bench Digital Multimeter

• Display Resolution: 6½ digits

• Maximum Display Counts: 1,999,999

• DC Voltage Ranges: 200mV, 2V, 20V, 200V, 1000V

• AC Voltage Ranges: 200mV, 2V, 20V, 200V, 750V RMS

• DC Current Ranges: 2µA to 10A

• AC Current Ranges: 200µA to 10A

• Resistance Measurement: 20Ω to 1GΩ, using 2-wire or 4-wire measurement

• Capacitance Measurement: 2nF to 100mF

• Frequency Measurement: 20Hz to 1MHz

• Period Measurement: 1µs to 0.05s

• Temperature Measurement: Supports compatible thermocouple and temperature-resistance sensors

• DC Voltage Accuracy: 0.0035% for one year, according to manufacturer specifications

• Maximum Measurement Rate: 10,000 readings per second

• Frequency Response: Up to 300kHz

• Display: 4.3-inch TFT LCD, 480 × 272 pixels

• Communication Interfaces: USB Host, USB Device, LAN, RS-232C; optional GPIB

• Programming Support: SCPI, USB-TMC, and VXI-11

• Data Storage: 32GB NAND flash

• Power Supply: AC mains power; confirm the applicable input rating in the supplied manual

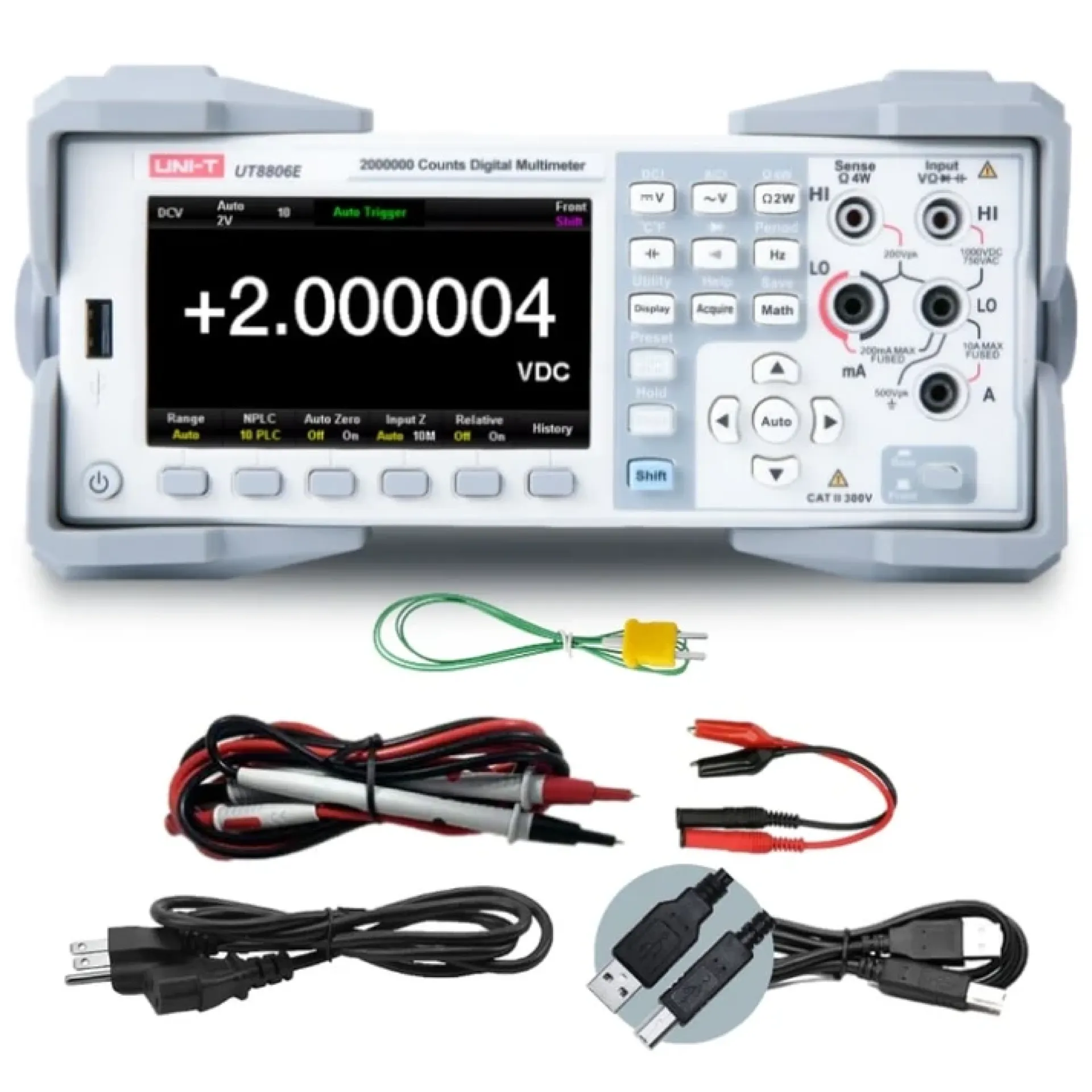

• Package Contents: Confirm included test leads, accessories, and software with the supplied package

Applications:

• Electronics research and development laboratories

• Precision DC voltage and current measurements

• Power supply testing and characterization

• Component testing and circuit troubleshooting

• Resistance and capacitance measurements

• University laboratories and engineering education

• Production-line inspection and quality control

• Automated test equipment (ATE) systems

• Electronic product validation

• Long-term measurement recording and analysis
