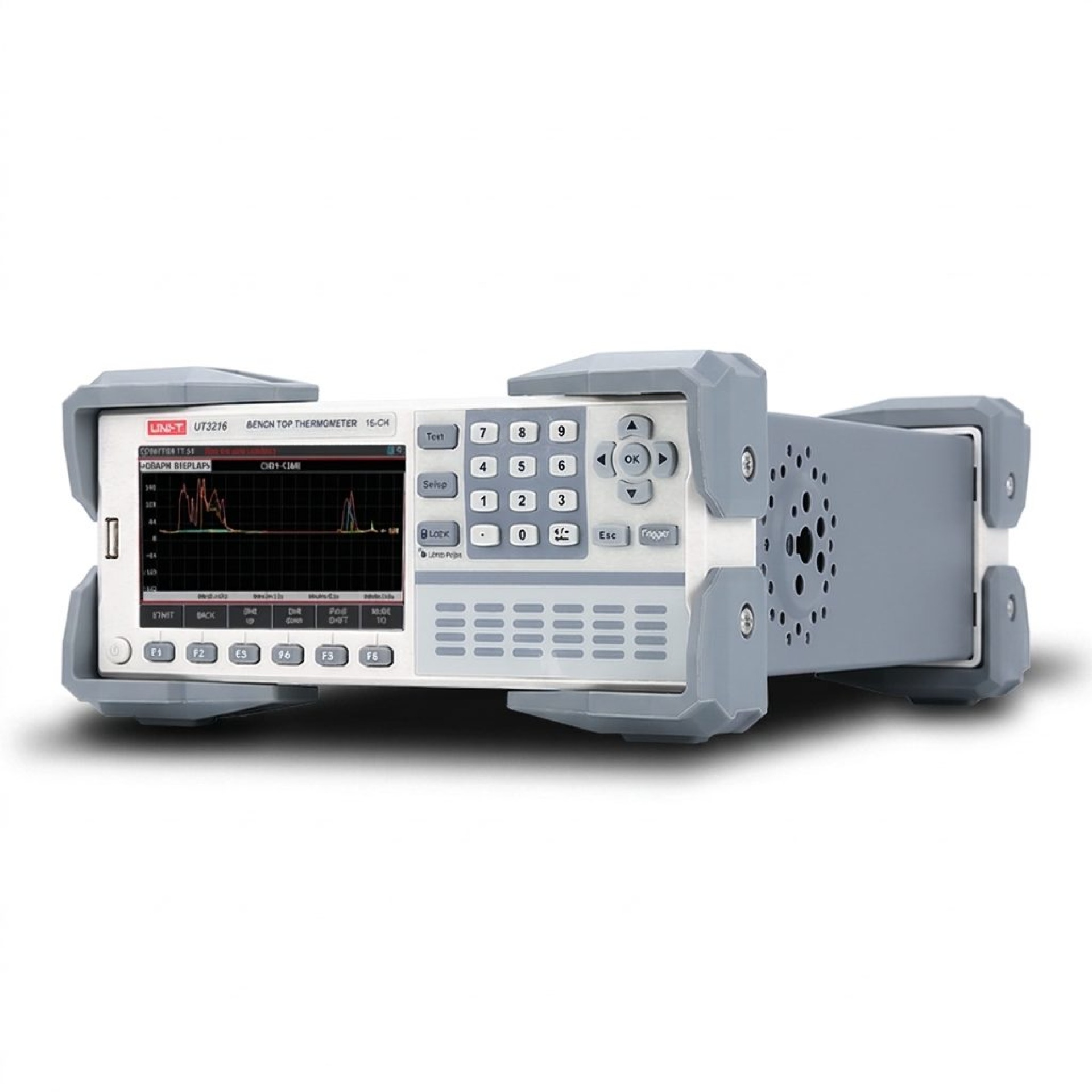

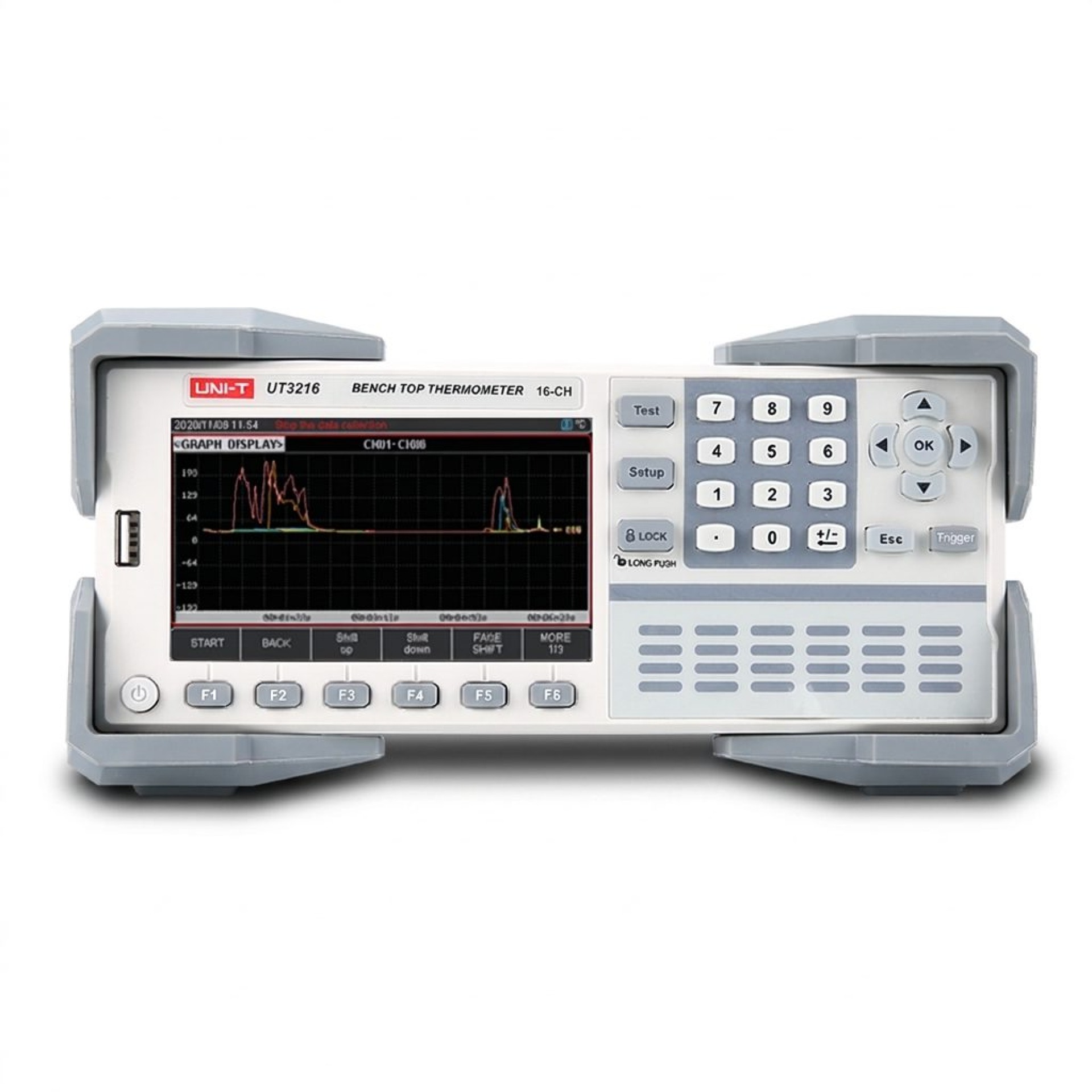

UNI-T UT3216 16-Channel Digital Temperature Logger

Features:

• 16-Channel Temperature Monitoring: Measures temperatures from up to 16 thermocouple inputs simultaneously, making it suitable for multi-point temperature testing.

• Multiple Thermocouple Types: Supports J, K, T, E, S, N, B, and R thermocouples for different temperature ranges and measurement requirements.

• Wide Temperature Coverage: Supports measurements from approximately -200°C to 1800°C, depending on the thermocouple type and its operating range.

• Clear Color Display: Features a 4.3-inch TFT LCD for viewing temperature readings and monitoring multiple channels.

• Multiple Display Modes: Presents measurement data as numerical readings, bar charts, and temperature trend curves.

• Upper and Lower Limit Alarms: Allows temperature thresholds to be configured for individual channels to help identify readings outside the required range.

• Data Logging and Export: Supports recording temperature measurements to external USB storage for later analysis and documentation.

• Computer Connectivity: Provides USB and RS-232 communication interfaces for computer-based monitoring, data acquisition, and analysis.

• Channel Calibration: Supports individual user calibration for each measurement channel.

• Continuous Monitoring: Supports multi-channel temperature collection for laboratory testing, industrial processes, and product evaluation.

Specifications:

• Brand: UNI-T

• Model: UT3216

• Product Type: Multi-Channel Temperature Logger

• Number of Channels: 16

• Display: 4.3-inch TFT LCD

• Supported Thermocouple Types: J, K, T, E, S, N, B, R

• Temperature Measurement Range: Approximately -200°C to 1800°C, depending on thermocouple type

• Display Resolution: 0.1°C for the UT3216 original series

• Display Modes: Numerical readings, bar chart, and curve graph

• Scanning Speed: Up to approximately 2 readings per second, depending on operating mode

• Alarm Functions: Configurable upper and lower temperature limits

• Channel Calibration: User calibration supported

• Data Storage: USB storage support

• Communication Interfaces: USB Device and RS-232

• Remote Communication Protocol: SCPI support

• Power Supply: AC 100–240V, 50/60Hz

• Form Factor: Half-width 2U bench/rack-style instrument

• Dimensions: Confirm the exact dimensions in the applicable model documentation

• Standard Accessories: Power cable and temperature test module/cables, subject to the supplied package

Applications:

• Industrial process temperature monitoring

• Electronics research and development

• Multi-point temperature testing

• Thermal performance evaluation of electronic components

• Electric motor and transformer testing

• Heating equipment performance analysis

• Manufacturing quality control

• Laboratory experiments and engineering education

• Temperature monitoring in production systems

• Data acquisition and thermal testing documentation
