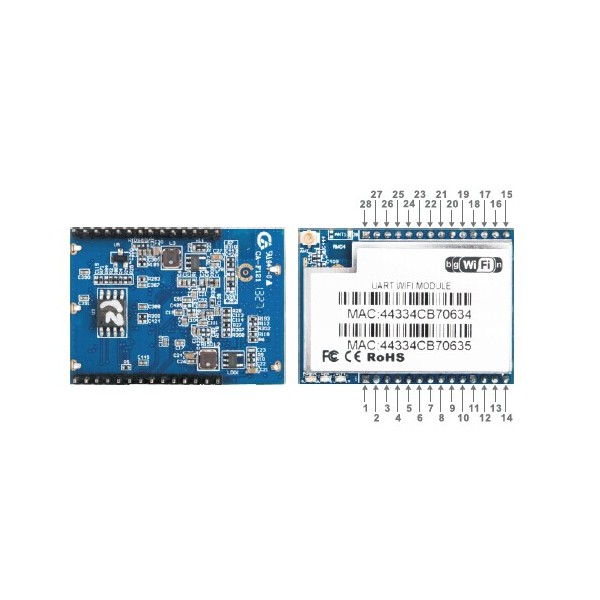

Uart Wifi Module With Ceramic Antenna Hlk-Rm04
Electra Store
SKU: WL-22598
200.00 EGP
200.00 EGP
Save 0%
In Stock
1
Categories: Wireless
Description
Wifi Module With Ceramic Antenna
Description:|
Network standard |
wireless：IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
|
wired：IEEE 802.3, IEEE 802.3u |
|
|
Wireless transmission rate |
11n: maximum up to 150Mbps
11g: maximum up to 54Mbps
11b: maximum up to 11Mbps |
|
Tracks number |
1-14 |
|
Frequency range |
2.4-2.4835G |
|
Emission power |
12-15DBM |
|
Interface |
10/100Mbps LAN/WAN multiplex interface |
|
Antenna |
|
|
Antenna type |
Onboard antenna / External Antenna
|
|
Functional Parameters |
|
|
WIFI work mode |
Client/AP/Router |
|
WDS Function |
Support WDS wireless bridge connection |
|
Wireless security |
Wireless MAC address filtering |
|
Wireless security function switch |
|
|
64/128/152 bit WEP encryption |
|
|
WPA-PSK/WPA2-PSK, WPA/WPA2 security mechanism |
|
|
Network management |
Remote Web management |
|
Configuration file import and export |
|
|
WEB software upgrade |
|
|
Serial to Network |
|
|
Maximum transmission rate |
230400bps |
|
TCP connection |
Max connection number>20 |
|
UDP connection |
Max connection number>20 |
|
Serial baud rate |
50~230400bps |
|
Other Parameters |
|
|
Status indicator |
Status indicator |
|
Environmental standard |
Operating temperature：-20-70℃ |
|
Operating humidity：10%-90%RH |
|
|
Storage temperature：-40-80℃ |
|
|
Storage humidity：5%-90%RH |
|
|
Additional properties |
Frequency bandwidth optional：20MHz, 40MHz, Auto |
| Parameter | Min | Max |
| Module supply voltage VCC | 3.9V | 5.5V |
| Module Voltage Output VO3.3 | 3.1V | 3.5 |
| Module Voltage Output VO1.8 | 1.65V | 1.9 |
| GPIO Voltage | 3.1V | 3.5V |
| Storage temperature | -40ºC | 95ºC |
