• Note: The T-Display RP2040 1.14 inch LCD Dev Board comes WITHOUT pre-soldered headers. You might also need a USB-C cable for power and program loading.

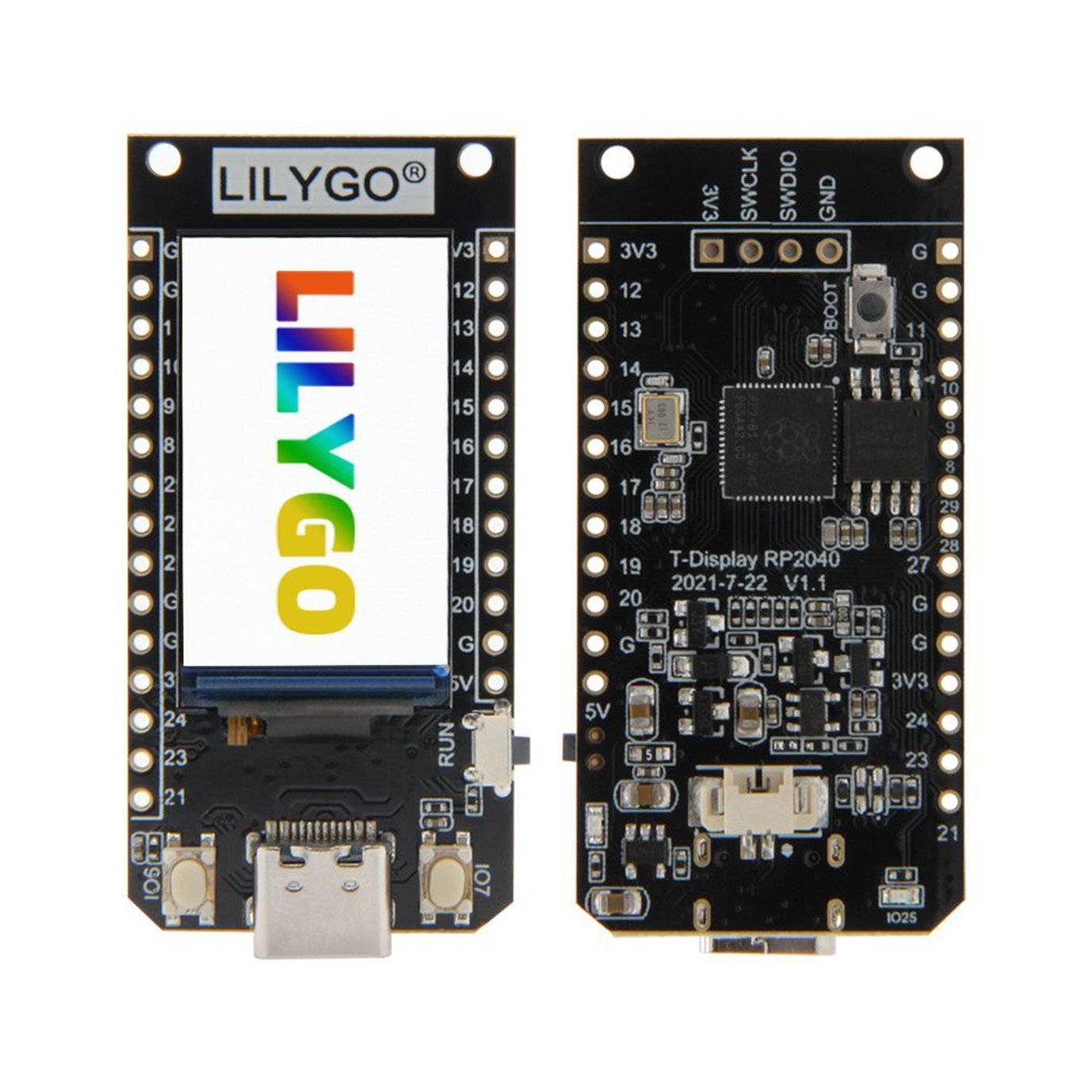

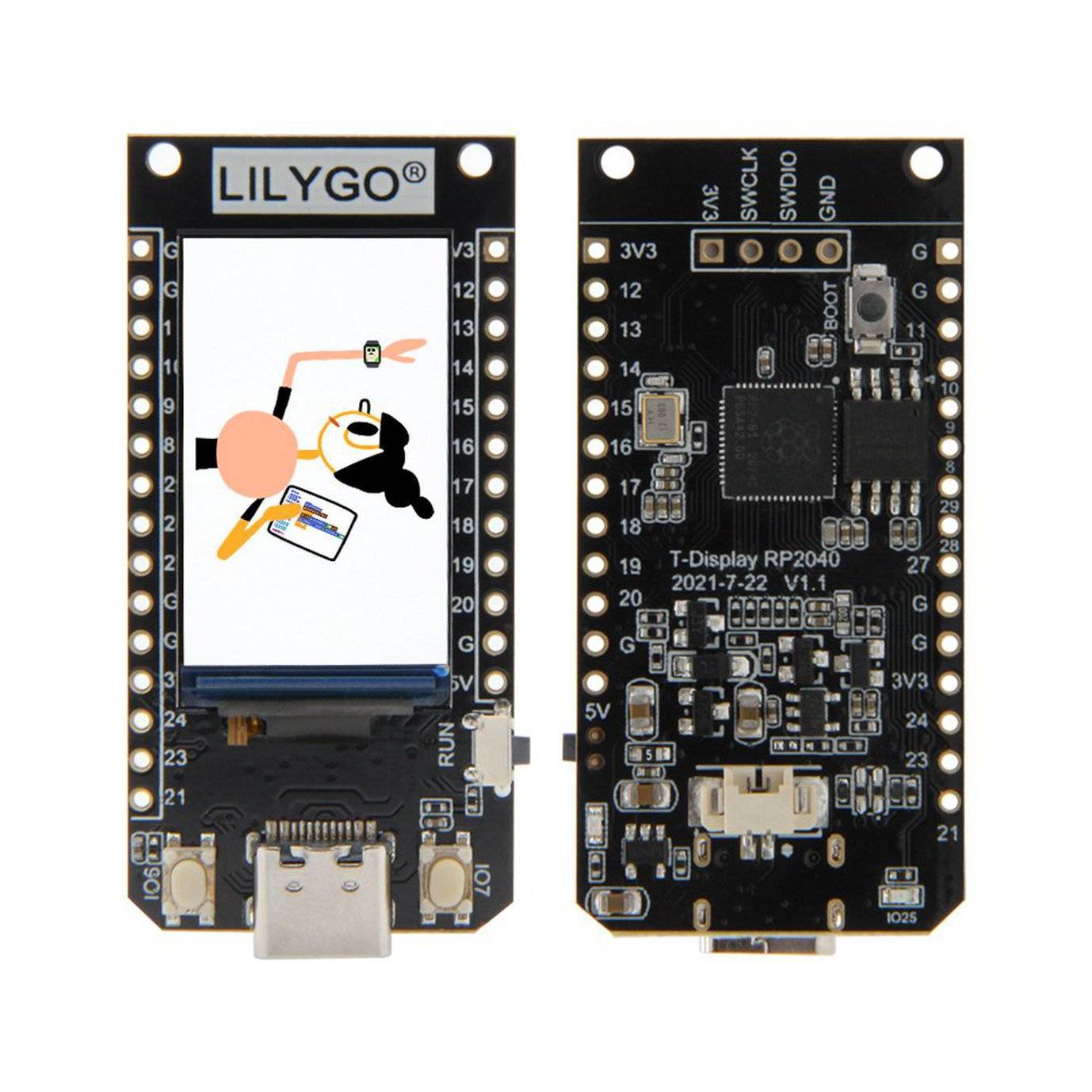

• This new T-Display is a Development Board is based on Raspberry Pi RP2040, a dual-core ARM Cortex-M0  microcontroller silicon with a flexible clock up to 133MHz, and it comes with a built-in 1.14 Inch LCD.

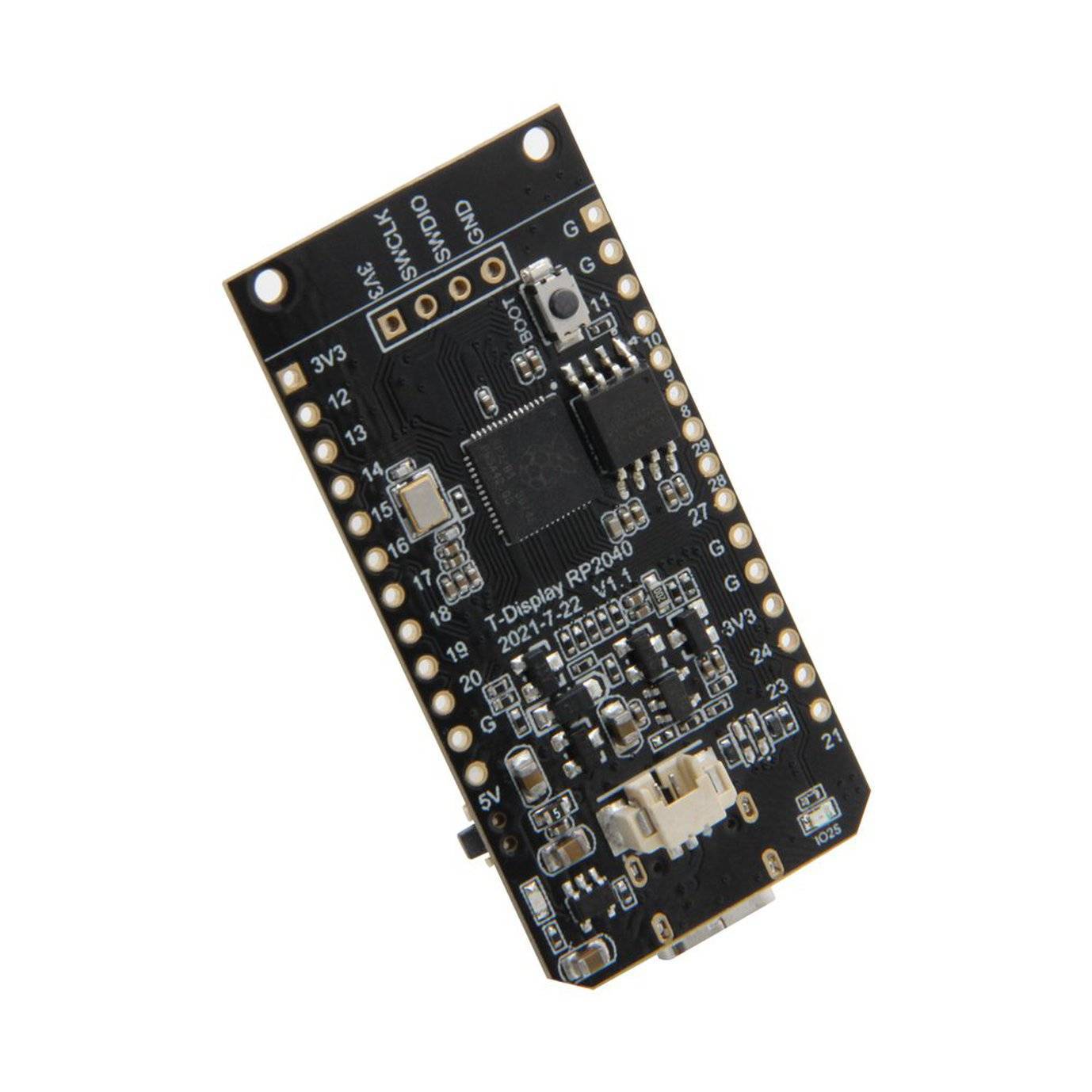

Hardware Specifications:

• Chipset: Raspberry Pi RP2040, dual-core ARM Cortex-M0 , 32-bit MCU
• FLASH Memory: QSPI flash 4MB
• SRAM: 264 KB SRAM
• Button:
  • Boot
  • RUN (side button)
  • IO6
  • IO7
• Expansion: 15-pin 12-pin expansion headers with
  • 14 x GPIOs
  • 6 x PWMs
  • 2 x UART
  • 2 x I2C
  • 2 x SPI
  • 2 x programmable high-speed I/O
  • 5V
  • 3.3V
  • Vbat
  • GND
• USB Type C Receptor for power and program loading
• Display: ST7789V 1.14 Inch, colorful IPS, 240 x 135  resolution
• Power:
  • 5VDC via USB-C
  • Battery (LiPo) via 2-pin 1.25mm pitch JST connector
• Working Voltage: 3.3VDC
• Dimension: 51.49 x 25.09mm

• RP2040 Datasheet (pdf), A microcontroller by Raspberry Pi
• T-Display RP2040 Github page, by TTGO, including steps to setup Arduino IDE library

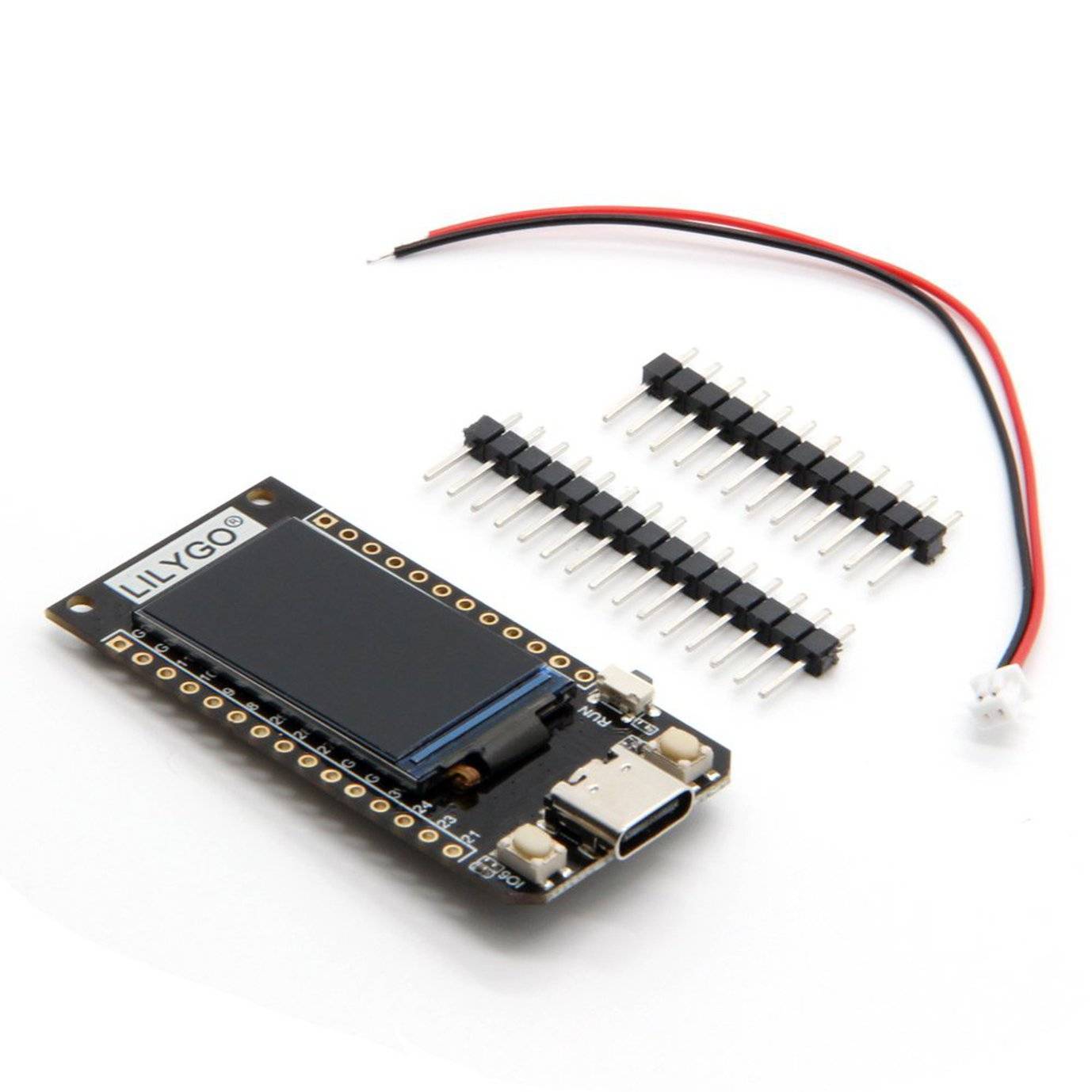

Packing Included:

• 1 x TTGO T-Display RP2040
• 1 x Charging Cable
• 1 x 12-way Straight Male pin header
• 1 x 15-way Straight Male pin header
