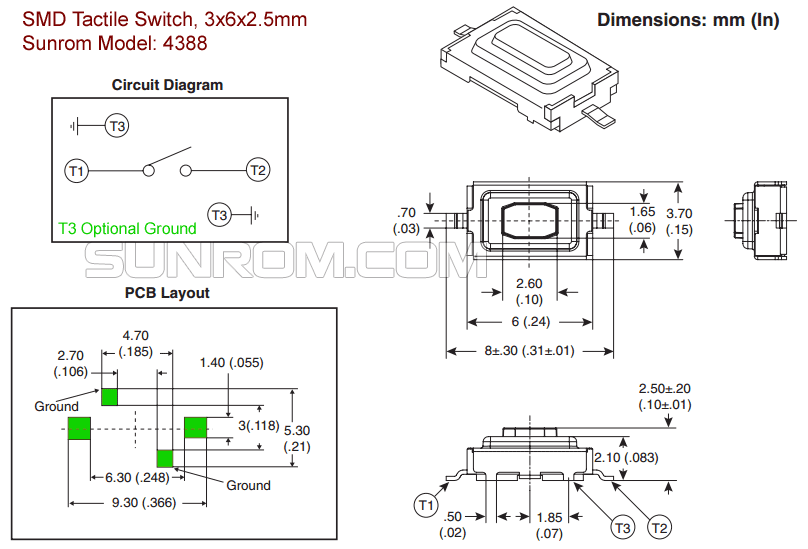

SMD Tactile Switch 3x6x2.5mm
Electra Store
SKU: MP-28593
2.50 EGP
Out of Stock
Categories: Push Button
Overview
This micro switch is a surface mount tactile switch that is widely used in electronic devices like computer mouse and household appliances.
Description
Electrical Specifications:
- Electrical: 50,000 cycles for 160gf
- Rating: 50mA/12VDC
- Contact Resistance: 100mΩ max.
- Insulation Resistance: 100MΩ min., at 500VDC
- Dielectric Strength: 250 VAC / 1 minute
- Operation Force: 160±50gf Brown (N)
- Stroke: 0.25 0.2/-0.1mm
- Operating Temperature Range: -25°C to 70°C
- Storage Temperature Range: -30°C to 80°C
- Contact Arrangement: 1 pole 1 throw
- Cover: Nickel silver
- Contact Disc: Stainless with silver cladding
- Terminal: Brass with silver cladding
- Base: Nylon high temp thermoplastic, black
- Stem: Nylon high temp thermoplastic, white
- Adhesion Tape: Teflon
- 1 x SMD Tactile Switch, 3x6x2.5mm
